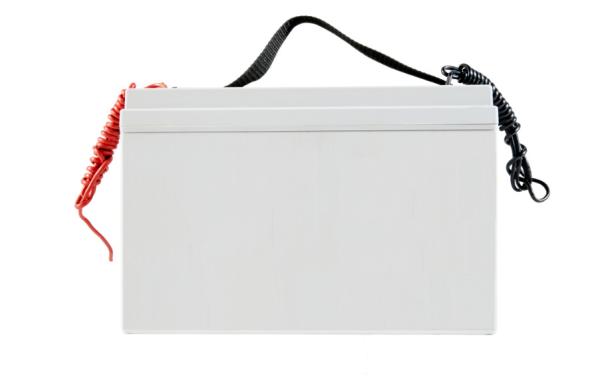

90AH Duration Top Terminal UPS Lead Acid Battery 12V For IDC L306.5mm X W168mm X H208.5mm
90AH Duration Top Terminal UPS Lead Acid Battery 12V For IDC L306.5mm X W168mm X H208.5mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12DT90
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Capacity :
90 Ah
Float Charge Voltage :
13.6V/block @25℃
Weight :
26kg (57.3 lbs.)
Application :
IDC
Nominal Voltage (V) :
12 (6 cells per unit)
Internal Resistance :
Approx. 0.0055 Ohm (fully charged@20℃)
Dimension :
L306.5mm x W168mm x H208.5mm
Description

12V 90AH Duration Top Terminal Lead-acid Batteries for IDC, L306.5mm x W168mm x H208.5mm

  • Product Overview

HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS

Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.

With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.​

  • Features and Benefits​
  • It’s designed to operate for up to 12 years at 25°C on the basis of accelerated tests.
  • Valve Regulated Lead Acid AGM technology
  • Low self-discharge, long shelf life, wide operation temperature Range
  • Flexible design for multiple installation space
  • Self-regulating pressure relief valve with flame arrester

  • Product Specification​

Nominal Voltage (V) 12
Nominal Capacity (25 C) 90 Ah@C10 (to 1.80Vpc)
Dimension (mm) L306.5mm x W168mm x H208.5mm
Approx. Weight 26.0 kg (57.3 lbs.)
Terminal Type Female Copper Insert M6
Internal Resistance Approx. 0.0055 Ohm (fully charged@ 20°C)
Max. Charge Current 22.5 A
Self-Discharge Approx. 3% per month @ 25°C
Ambient Temperature

Discharge: -20~55°C

Charge: -20~50 °C

Storage: -20~45°C
Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)

  • Applications

o Outdoor telecom

o UPS

o IDC

o Security and alarm system

o Utilities

o Emergency light systems

o CATV

  • Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Battery Dimension

90AH Duration Top Terminal UPS Lead Acid Battery 12V For IDC L306.5mm X W168mm X H208.5mm

  • Performance Curves

· Cyclic Characteristics

High cycle performance: up to 550 cycle at 80%DOD

90AH Duration Top Terminal UPS Lead Acid Battery 12V For IDC L306.5mm X W168mm X H208.5mm
