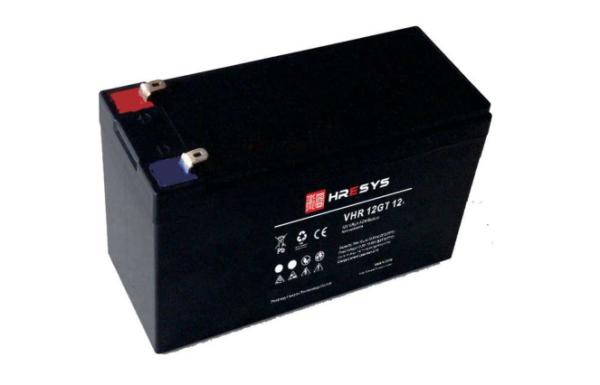

12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate
12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT12
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
12 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.019 Ohm (fully charged)
Weight :
3.68 kg (8.11 lbs)
Dimension :
L151mm x W98mm x H101mm
Description

12 V 12 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W98mm x H101mm

  • Product Overview

HRESYS General Purpose AGM Battery was defined as GT series battery. Certainly, GT series battery was designed by AGM ( Absorbed Glass Mat ), it has high energy density and high reliability performance, standard sizes for general purpose, highly suited for telecommunication, utilities, emergency light systems, UPS systems, security and alarm systems, and etc.

  • Features and Benefits​
  1. Design life at 25°C (77°F): 5 years for <38Ah, 10 years for 38Ah
  2. 12V series available from 7Ah to 250Ah
  3. Flexible design for multiple installation space
  4. Low self-discharge rate
  5. Self-regulating pressure relief valve with flame arrester
  6. Maintenance free by valve regulated

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

  • Working Scenarios
  1. Working as backup power with not many cycles and shadow cyclic use
  2. Backup time normally doesn’t exceed 2 hours

12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 12 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L151mm x W98mm x H101mm
Approx. Weight 3.68 kg (8.11 lbs)
Terminal Type Fasten Tab F2
Internal Resistance ≤ 0.019m Ohm (fully charged @25℃)
Max. Charge Current 3.6 A
Max. Discharge Current(5S) 180 A
Short Circuit Current 630 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

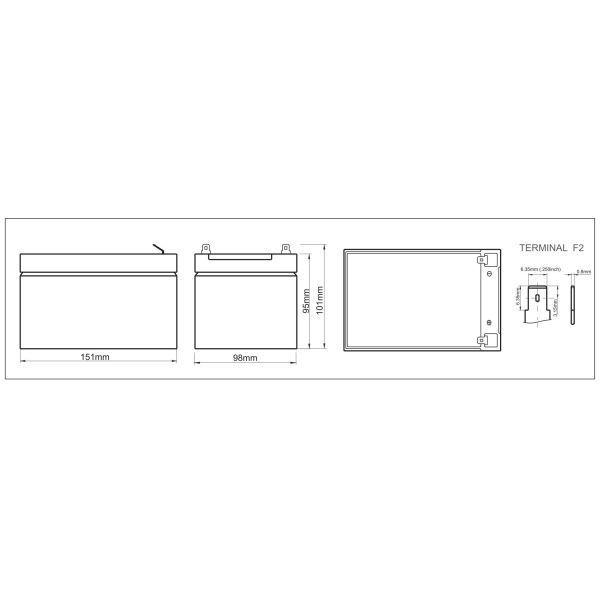

  • Battery Dimension

12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate

  • Performance Curves

12v 12ah Lead Acid Battery , AGM Deep Cycle Battery Low Self Discharge Rate
