90 AH AGM Sealed Lead Acid Battery High Energy Density Fast Charge Discharge
90 AH AGM Sealed Lead Acid Battery High Energy Density Fast Charge Discharge
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT90
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
90 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.0055 Ohm (fully charged)
Weight :
27 kg (59.5 lbs)
Dimension :
L330mm x W174mm x H215mm
Description

12 V 90 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm

  • Product Overview

HRESYS GT series is Top terminal battery for General use which is used by Valve Regulated Lead Acid AGM technology, thanks to advanced VRLA technology, GT series need no more maintenance. 12V series available from 7Ah to 250Ah, highly suited for UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.

  • Features and Benefits​
  1. 10+ years design floating life at 25°C (77°F)
  2. High energy density and high reliability performance
  3. Flexible design for multiple installation space
  4. Low self-discharge rate
  5. Standard sizes for general purpose
  6. Easy to install

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

90 AH AGM Sealed Lead Acid Battery High Energy Density Fast Charge Discharge

  • Working Scenarios
  1. Batteries are mainly working as backup power with not many cycles
  2. Battery’s backup time normally doesn’t exceed 2hrs
  3. Shadow cyclic use and cycles not many

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 10 Years
Nominal Capacity (25℃) 90 Ah@ C10 (to 1.80Vpc)
Dimension (mm) L330mm x W174mm x H215mm
Approx. Weight 27 kg (59.5 lbs)
Terminal Type Female Copper Insert M6
Internal Resistance Approx. 0.0055m Ohm (fully charged @25℃)
Max. Charge Current 25 A
Max. Discharge Current(5S) 800 A
Short Circuit Current 2600 A
Self Discharge Approx. 3% per month @ 25℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

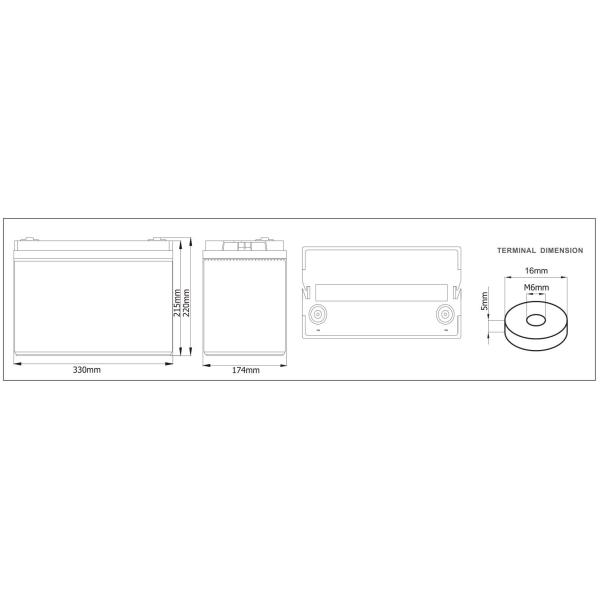

  • Battery Dimension

90 AH AGM Sealed Lead Acid Battery High Energy Density Fast Charge Discharge

  • Performance Curves

90 AH AGM Sealed Lead Acid Battery High Energy Density Fast Charge Discharge
