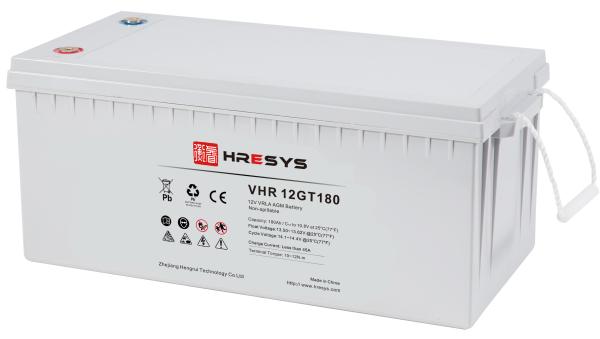

180AH Sealed Lead Acid Battery For Solar System 53 Kg Long Cycle Life

Specifications

Brand Name :

HRESYS

Model Number :

VHR 12GT180

Certification :

Place of Origin :

China

MOQ :

10 Pcs

Price :

Negotiable

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

1800000 PCS/YEAR

Delivery Time :

30 DAYS

Packaging Details :

Box/carton(standard package)

Product Name :

12 V Lead-acid Batteries

Application :

Solar street light

Capacity :

180 Ah

Nominal Voltage (V) :

Float Charge Voltage :

13.6V/block @25℃

Internal Resistance :

Approx. 0.0033 Ohm (fully charged@20℃)

Weight :

53 kg (116.8 lbs.)

Dimension :

L520mm x W240mm x H220mm

Description

12V 180AH Lead-acid Batteries for solar street light , L520mm x W240mm x H220mm

Product Overview

HRESYS GT Series Valve Regulated Lead Acid Battery is specially designed for solar street light.

Applications including renewable energy system, UPS, security and alarm systems, telecommunication, utilities, emergency light systems, CATV and other backup applications

With international leading technologies and State-of-the-art automated manufacturing, GT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.

Product Specification

Nominal Voltage (V)	12
Nominal Capacity (25 C)	180 Ah@C10 (to 1.80Vpc)
Dimension (mm)	L520mm x W240mm x H220mm
Approx. Weight	53 kg (116.8 lbs.)
Terminal Type	Female Copper Insert M8
Internal Resistance	Approx. 0.0033 Ohm (fully charged@ 20°C)
Max. Charge Current	45 A
Self-Discharge	Approx. 3% per month @ 20°C
Ambient Temperature	Discharge: -40~55°C Charge: -20~50 °C Storage: -20~45°C
Float Charge Voltage	13.6V/cell @25℃
Equalize Charge Voltage	14.4V/cell @25℃
Container Material	ABS (UL94-V0 optional)

Applications

o Renewable energy

o Outdoor telecom

o Mini Solar Power System

o UPS

o emergency light systems

o Solar street light

Features and Benefits

- Long Cycle Life: 10 years long life design @ 25℃

- Multi-purpose Application: The battery can be used for backup application

- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge

- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable

Complied standards

o IEC 6 - 1056-1

o GB/T 22199

o GB/T 19639-1

o JIS C870 - 2 1

Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

Battery Dimension
