Deep Discharge Sealed Lead Acid Battery High Energy Density 6.8 AH VRLA 12v
Deep Discharge Sealed Lead Acid Battery High Energy Density 6.8 AH VRLA 12v
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT6.8
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
6.8 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.028 Ohm (fully charged)
Weight :
2.0 kg (4.41 lbs)
Dimension :
L151mm x W65mm x H100mm
Description

12 V 6.8 AH Top Terminal VRLA AGM Battery for General Purpose , L151mm x W65mm x H100mm

  • Product Overview

HRESYS GT VRLA AGM series is Top terminal battery for General use. With

advanced manufacturing technique and industry scale, GT series delivers

high energy density and high reliability performance, highly suited for UPS

systems, security and alarm systems, telecommunication, utilities, emergency

light systems, and other backup applications.

  • Features and Benefits​
  1. 5+ years design floating life at 25°C (77°F)
  2. Valve Regulated Lead Acid AGM technology
  3. High energy density and high reliability performance
  4. Low self-discharge rate
  5. Self-regulating pressure relief valve with flame arrester
  6. Standard sizes for general purpose

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

  • Working Scenarios

  1. Batteries are mainly working as backup power with not many cycles
  2. Backup time normally doesn’t exceed 2 hours
  3. Shadow cyclic use and cycles not many

Deep Discharge Sealed Lead Acid Battery High Energy Density 6.8 AH VRLA 12v

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 6.8 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L151mm x W65mm x H100mm
Approx. Weight 2.0 kg (4.41 lbs)
Terminal Type Fasten Tab F2
Internal Resistance ≤ 0.028m Ohm (fully charged @25℃)
Max. Charge Current 2.1 A
Max. Discharge Current(5S) 105 A
Short Circuit Current 600 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

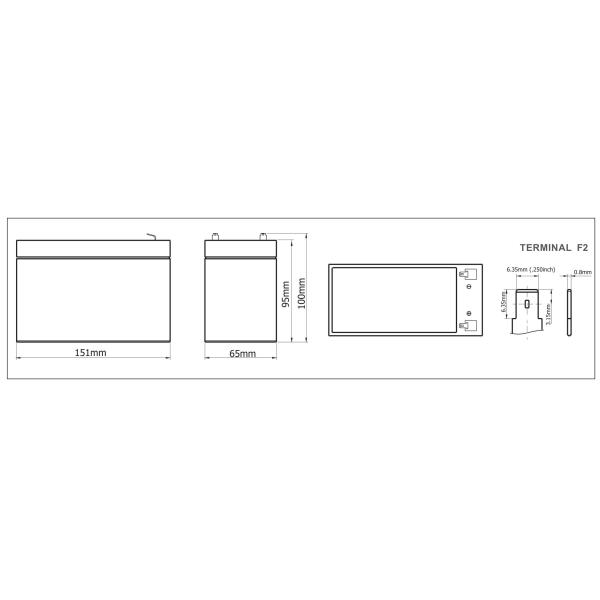

  • Battery Dimension

Deep Discharge Sealed Lead Acid Battery High Energy Density 6.8 AH VRLA 12v

  • Performance Curves

Deep Discharge Sealed Lead Acid Battery High Energy Density 6.8 AH VRLA 12v
