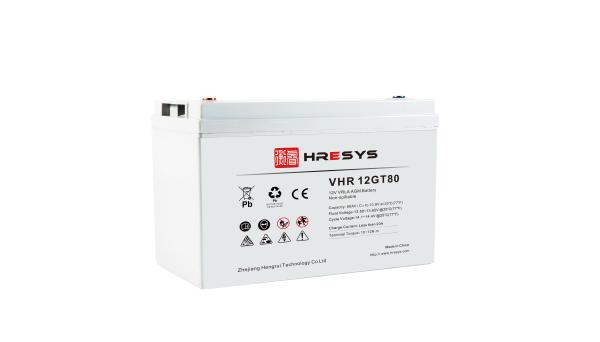

12 V 80 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm
12 V 80 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT80
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
80 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.006 Ohm (fully charged)
Weight :
25 kg (55.1 lbs)
Dimension :
L330mm x W174mm x H215mm
Description

12 V 80 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm

  • Product Overview

HRESYS GT VRLA AGM series is Top terminal battery for General use which is designed for general use applications with more than 10 years span life. It’s maintenance free by valve regulated and easy to install, highly suited for UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.

  • Features and Benefits​
  1. Valve Regulated Lead Acid AGM technology
  2. High energy density and high reliability performance
  3. Flexible design for multiple installation space
  4. Low self-discharge rate
  5. Self-regulating pressure relief valve with flame arrester

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

  • Working Scenarios
  1. Batteries are mainly working as backup power with not many cycles
  2. Battery’s backup time normally doesn’t exceed 2hrs
  3. Shadow cyclic use and cycles not many

12 V 80 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 10 Years
Nominal Capacity (25℃) 80 Ah@ C10 (to 1.80Vpc)
Dimension (mm) L330mm x W174mm x H215mm
Approx. Weight 25 kg (55.1 lbs)
Terminal Type Female Copper Insert M6
Internal Resistance Approx. 0.006m Ohm (fully charged @25℃)
Max. Charge Current 20 A
Max. Discharge Current(5S) 720 A
Short Circuit Current 2200 A
Self Discharge Approx. 3% per month @ 25℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

  • Battery Dimension

12 V 80 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm

  • Performance Curves

12 V 80 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W174mm x H215mm
