12 V 26 AH Top Terminal VRLA AGM Battery for General Purpose ， L175mm x W166mm x H125mm
12 V 26 AH Top Terminal VRLA AGM Battery for General Purpose ， L175mm x W166mm x H125mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT26
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
26 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.010 Ohm (fully charged)
Weight :
8.15 kg (18.0 lbs)
Dimension :
L175mm x W166mm x H125mm
Description

12 V 26 AH Top Terminal VRLA AGM Battery for General Purpose , L175mm x W166mm x H125mm

  • Product Overview

HRESYS VRLA Gel battery GT series has high energy density and high reliability performance which is because of its advanced design technology and manufacturing technique and industry scale. GT series is designed for UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.

  • Features and Benefits​
  1. Valve Regulated Lead Acid AGM technology
  2. Standard sizes for general purpose
  3. Flexible design for multiple installation space
  4. Low self-discharge rate
  5. Maintenance free by valve regulated
  6. 12V series available from 7Ah to 250Ah
  7. 5+ years design floating life at 25°C (77°F)

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

  • Working Scenarios
  1. Batteries are mainly working as backup power with not many cycles
  2. Backup time normally doesn’t exceed 2 hours
  3. Shadow cyclic use and cycles not many

12 V 26 AH Top Terminal VRLA AGM Battery for General Purpose ， L175mm x W166mm x H125mm

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 5 Years
Nominal Capacity (25℃) 26 Ah@ C20 (to 1.75Vpc)
Dimension (mm) L175mm x W166mm x H125mm
Approx. Weight 8.15 kg (18.0 lbs)
Terminal Type Female Copper Insert M5
Internal Resistance ≤ 0.010m Ohm (fully charged @25℃)
Max. Charge Current 7.2 A
Max. Discharge Current(5S) 310 A
Short Circuit Current 1000 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V @25℃
Equalize Charge Voltage 14.4V @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

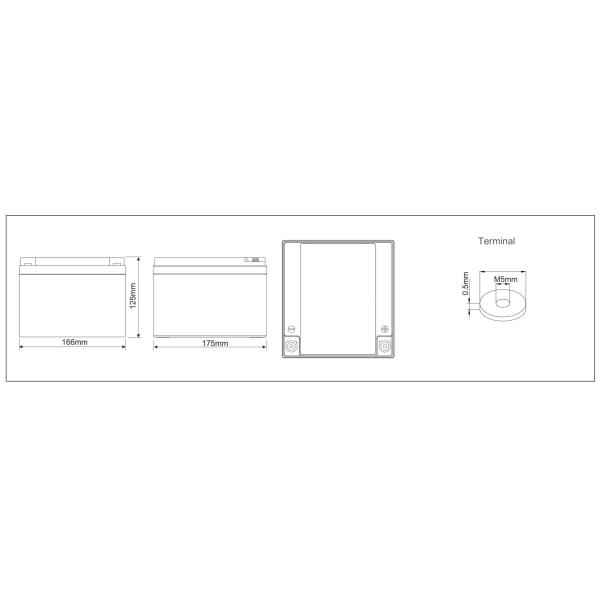

  • Battery Dimension

12 V 26 AH Top Terminal VRLA AGM Battery for General Purpose ， L175mm x W166mm x H125mm

  • Performance Curves

12 V 26 AH Top Terminal VRLA AGM Battery for General Purpose ， L175mm x W166mm x H125mm
