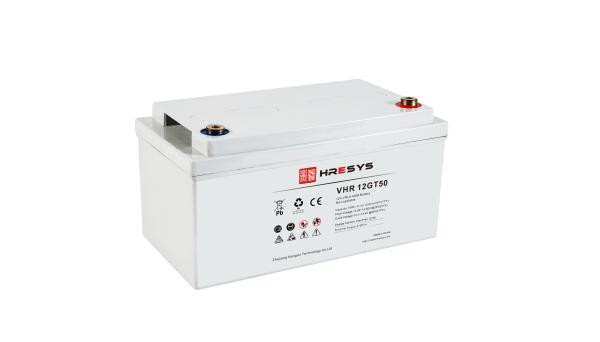

12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm
12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR 12GT50
Certification :
CE
Place of Origin :
China
MOQ :
10 Pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Delivery Time :
30 DAYS
Packaging Details :
Box/carton(standard package)
Product Name :
12 V Lead-acid Batteries
Application :
General Use
Capacity :
50 Ah
Nominal Voltage (V) :
12
Float Charge Voltage :
13.6V @25℃
Internal Resistance :
≤ 0.065 Ohm (fully charged)
Weight :
18.5 kg (40.8 lbs)
Dimension :
L330mm x W171mm x H170mm
Description

12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm

  • Product Overview

HRESYS VRLA GT series battery uses the sealed AGM technology and it is designed for general purpose demand, such as UPS systems, security and alarm systems, telecommunication, utilities, emergency light systems. GT series battery delivers high reliability, high density and maintenance-free performance to customers.

  • Features and Benefits​
  1. Design life at 25°C (77°F): 10+ years
  2. Valve Regulated Lead Acid AGM technology
  3. Low self-discharge rate
  4. Self-regulating pressure relief valve with flame arrester
  5. ABS material increase the strength of battery container
  6. Flexible design for multiple installation space

  • Applications
  1. Uninterrupted Power Supply(UPS)
  2. Emergency Power Supply
  3. Electric Tools and Toys
  4. Cable Television

12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm

  • Working Scenarios
  1. Batteries are mainly working as backup power with not many cycles
  2. Backup time normally doesn’t exceed 2 hours
  3. Shadow cyclic use and cycles not many

  • Product Specification
Nominal Voltage (V) 12
Designed Floating Life (25℃) 10 Years
Nominal Capacity (25℃) 50 Ah@ C10 (to 1.80Vpc)
Dimension (mm) L330mm x W165mm x H170mm
Approx. Weight 18.5 kg (40.8 lbs)
Terminal Type Female Copper Insert M6
Internal Resistance Approx. 0.0065m Ohm (fully charged @25℃)
Max. Charge Current 9.5 A
Max. Discharge Current(5S) 500 A
Short Circuit Current 1700 A
Self Discharge Approx. 2.5% per month @ 20℃
Ambient Temperature Discharge: -20~55℃
Charge: -20~50℃
Storage: -20~45℃
Float Charge Voltage 13.6V/block @25℃
Equalize Charge Voltage 14.4V/block @25℃
Container Material ABS (UL94-V0 optional)

  • Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

  • Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

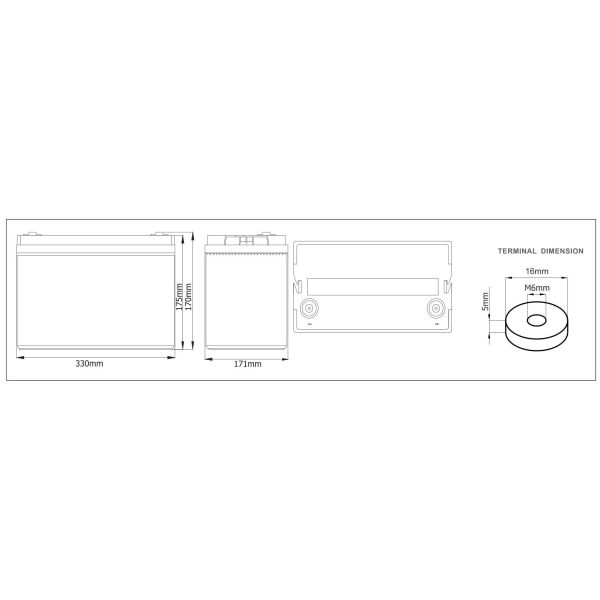

  • Battery Dimension

12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm

  • Performance Curves

12 V 50 AH Top Terminal VRLA AGM Battery for General Purpose , L330mm x W171mm x H170mm
