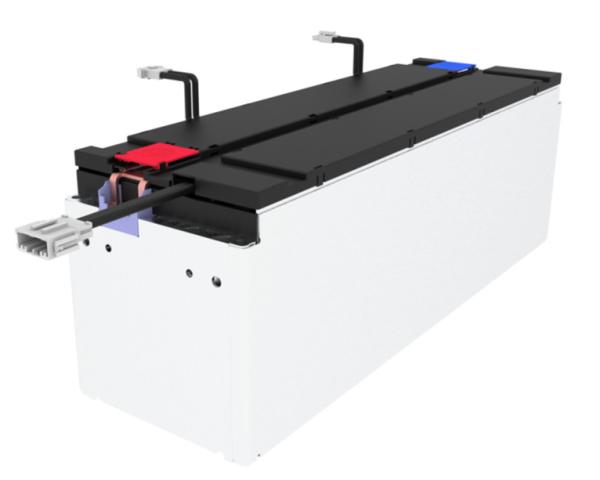

9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle
9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle
Specifications
Brand Name :
HRESYS
Model Number :
VHR VDA10400LFP
Certification :
CE/UL
Place of Origin :
China
Nominal Capacity :
400Ah
Nominal Voltage :
9.6V
Charge Voltage :
10.8V
Voltage at End of Discharge :
7.8V
Maximum Continuous Charge Current (CC Threshold) :
200A
Maximum Continuous Discharge Current :
450A
Charge Voltage-cell :
3.60V/cell
Weight :
31.5(±2)kg
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Description

1. 9.6V 400Ah LITHIUM ION(LFP) electrical vehicles BATTERY Module W: 423.5mm X D: 177.3mm X H: 203.0mm

  • Product Features

HRESYS Commercial Electrical Vehicle Lithium-ion Battery utilizes advanced LFP technology and high reliable integrated structure to ensure the benefits of long cyclic life, high energy density, compact size and weight, high safety and reliability, and environment friendly as well. The 9.6V Lithium Ion Battery Pack is mainly working as 9.6V DC power source, and it consists of 3S4P cells of Lithium Iron Phosphate Battery Cells connected in series. HRESYS VDA-LFP Lithium-ion Battery is widely used in Commercial electrical vehicles,low speed electrical cars, electrical cargo vans etc.

  • Product Specification​
Item Specification Remarks
Nominal Capacity 400Ah Standard discharge capacity after standard charge
Actual Capacity 420Ah Actual testing results according to the Standard discharge
Nominal Voltage 9.6V Configuration: 3S4P - VHR 32173184LFP-100Ah. Voltage of single cell is 3.2V
Voltage at End of Charge 10.8V @ 25 ± 3℃
Nominal Continuous Charge Current(CC Threshold) 150A @ 25 ± 3℃
Voltage at End of Discharge 7.8V @ 25 ± 3℃
Nominal Continuous Discharge Current(CC Threshold) 200A @ 25 ± 3℃
Maximum Continuous Charge Current (CC Threshold) 200A @ 25 ± 3℃
Peak-Charge (50%SOC 10s) 350A @ 25 ± 3℃
Charge Voltage-cell 3.60V/cell N.A.
Maximum Continuous 450A @ 25 ± 3℃
Discharge Current
Peak-Discharge (50%SOC 10s) 500A @ 25 ± 3℃
Voltage at End of Discharge-cell 2.60V/cell 0～60℃ N.A.
2.50V/cell -20～0℃
Operation Allowable Charge: 0～60°C N.A.
Temperature Range Discharge: -20℃～60°C N.A.
Continuous Discharge Power 1.92KW 50%SOC
Continuous Charge Power 0.8KW N.A
Self-discharge Rate/Month ≤4% @ 25 ± 3℃,100%SOC
Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
Recommended 0～40°C Max. 6 month/50%SOC
Storage temperature and SOC
Weight 31.5(±2)kg N.A.

  • Dimension

9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle

  • The Interface Definition
Hole location Hole location defined function definition MAX.Current (A)
1 CV0 Cell1-/B- 3
2 CV1 Cell1+/Cell2- 3
3 CV2 Cell2+/Cell3- 3
4 CV3 Cell3+/B+ 3
17 T1
18 T2
19 T3 temperature acquisition
20 T4

9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle

  • R&D Ability and Testing Facilities
  1. Industry Leading R&D Team
  2. Over hundreds of High Level Engineers working in Li-Ion Battery and VRLA Battery product development
  3. 60% of engineers have possessed Master/Doctor degree
  4. External Consultant/Expert supporting innovation

9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle9.6V 400Ah Lithium Ion Auto Battery , Li Ion Battery For Electric Vehicle
