19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density
19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density
19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density
19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density
Specifications
Brand Name :
HRESYS
Model Number :
VHR VDA19300LFP
Certification :
CE/UL
Place of Origin :
China
Nominal Capacity :
300Ah
Nominal Voltage :
19.2V
Charge Voltage :
21.6V
Voltage at End of Discharge :
15.6V
Maximum Continuous Charge Current (CC Threshold) :
200A
Maximum Continuous Discharge Current :
350A
Charge Voltage-cell :
3.60V/cell
Weight :
31.5(±2)kg
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Description

1.19.2V 300Ah LITHIUM ION(LFP) electrical vehicles BATTERY Module W: 579.5mm X D: 177.5mm X H: 203.0mm

  • Product Features

HRESYS Commercial Electric Vehicle Lithium-ion Battery utilizes advanced LFP technology and high reliable integrated structure to ensure the benefits of long cyclic life, high energy density, compact size and weight, high safety and reliability, and environment friendly as well. The 19.2V Lithium Ion Battery Pack is mainly working as 19.2V DC power source, and it consists of 6S2P cells of Lithium Iron Phosphate Battery Cells connected in series. HRESYS VDA-LFP Lithium-ion Battery is widely used in Commercial electrical vehicles,low speed electrical cars, electrical cargo van etc.

  • Product Specification​
No. Item Specification Remarks
1.6.1 Nominal Capacity 300Ah Standard discharge (1) capacity after standard charge (2)
1.6.2 Actual Capacity 310Ah Actual testing results according to the Standard discharge
1.6.3 Nominal Voltage 19.2V Configuration: 6S2P - VHR 32173184LFP-150Ah. Voltage of single cell is 3.2V.
1.6.4 Voltage at End of Charge 21.6V @ 25 ± 3℃
1.6.5 Voltage at End of Discharge 15.6V @ 25 ± 3℃
1.6.6 Nominal Continuous Charge Current (CC Threshold) 150 @ 25 ± 3℃
1.6.7 Nominal Continuous 175 @ 25 ± 3℃
Discharge Current
1.6.8 Maximum Continuous Charge Current (CC Threshold) 200A @ 25 ± 3℃
1.6.9 Peak-Charge (50%SOC 10s) 450A @ 25 ± 3℃
1.6.10 Charge Voltage-cell 3.60V/cell N.A.
1.6.11 Maximum Continuous 350A @ 25 ± 3℃
Discharge Current
1.6.12 Peak-Discharge (50%SOC 10s) 550A @ 25 ± 3℃
1.6.13 Voltage at End of Discharge-cell 2.60V/cell 0℃～60℃ N.A.
2.50V/cell -20℃～0℃
1.6.14 Operation Allowable Charge: 0～60°C N.A.
Temperature Range Discharge: -20～60°C N.A.
1.6.15 Continuous Discharge Power 1.92KW 50%SOC
1.6.16 Continuous Charge Power 0.8KW N.A
1.6.17 Self-discharge Rate/Month ≤4% @ 25 ± 3℃,50%SOC
1.6.18 Cycle Life(cycles) ≥5000 @ 25 ± 3℃,0.2C/0.5C @80%DOD
1.6.19 Operation Allowable ≤95% RH Operation
Humidity Range ≤85% RH Storage
1.6.20 Recommended 0～40°C Max. 6 month
Storage temperature
1.6.21 Weight 43(±2)kg N.A.

  • Dimension
Model No. Nominal Voltage Nominal Capacity Actual Dimension Weight Material Welding Manner
Capacity (W X D X H, mm)
VHR VDA19300LFP 19.2V 300Ah 310Ah Width:579.5mm (±2) 43(±2)kg Aluminum Laser welding
Depth: 177.5mm (±2)
Height: 203.0mm (±2)

19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density

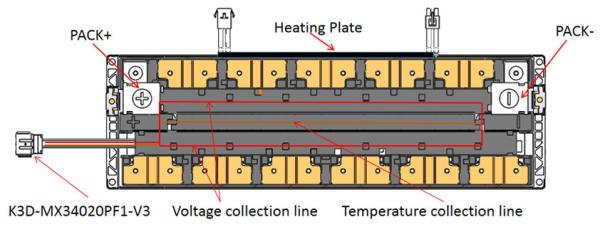

Hole location Hole location defined function definition
1 Power output+ /
2 Power output- /

19.2V 300Ah LFP EV Battery Pack Long Cyclic Life High Energy Density

  • Storage

The battery storage shall be in the clean and dry ventilation room at the temperature of 0～40°C at 50%~60%SOC and shall keep out of fire or heat and avoid touching corrosion elements. The batteries shall be charged every 8 or 12 months (0 ~ 30℃ - 12month, 30 ~ 40℃ - 8 month) during storage.

  • Cautions
  1. Please read the user manual carefully before using the lithium ion battery.
  2. No human body shall direct contact the positive/negative poles at the same time if the battery’s voltage exceeds 36V safety voltage.
  3. Please read the specific charging device’s user manual carefully before charging.
  4. When the battery is not charged after long exposure to the charger, discontinue charging.
  5. Please check the positive (+) and negative (-) direction before connection.
  6. Battery must be stored in a dry area with low temperature (≤25°C) environment for long-term storage.
  7. Do not expose the battery in direct sunlight or heat.
  8. Do not use the battery in high static energy environment where the protection device can be damaged.
  9. When rust or smell is detected on first use, please return the product to the seller immediately.
  10. Keep the battery out of reach of children and pets.
  11. When battery life span shortens after long period of usage, please exchange to new battery.
  12. No metal objects (rings, watches, and other metal accessories, etc.) can be worn during the handling of battery.
  13. Charge time should not be longer than specified in the manual.
  14. Do not expose the battery out of the temperature range specified in the specification.
