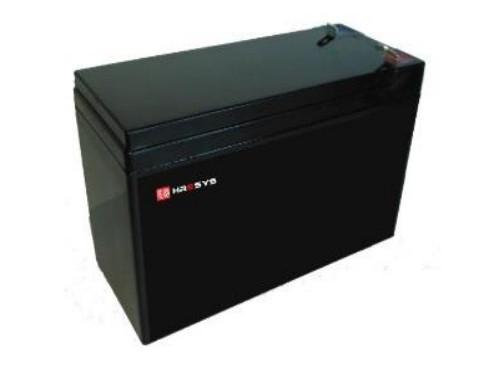

Prismatic Lifepo4 Motorcycle Battery , Lightweight Motorcycle Battery 12.8V 9AH
Prismatic Lifepo4 Motorcycle Battery , Lightweight Motorcycle Battery 12.8V 9AH
Specifications
Brand Name :
HRESYS
Model Number :
VHR ES1209LFP
Certification :
CE/UL
Place of Origin :
China
Nominal Capacity@0.2C :
9.0Ah
Nominal Voltage :
12.8V
Energy :
115Wh
Internal Resistance :
≤80m Ω
Cycle Life :
≥3000 Cycles
Months Self Discharge :
≤3.5% per month at 25℃
Dimension(L × W × H × TH) :
151 × 65 × 94 × 100mm
Weight :
Approx. 1.34Kg
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Description

Long Life Prismatic Lifepo4 Cells, 12.8V /9AH Rechargeable Lithium Battery Pack

  • Superior Character

1, Super Long Service Life

2, Fast Charge and High Rate Discharge Power.

3, The capacity, resistance, voltage, platform time can maintain good consistency

4, Long cycle life: cycle life is five times that of lead acid battery.

5, High Safety Ensured by Smart BMS.

6, Low Total Cost of Ownership (TCO).

7, Maintenance Free.

  • Application

1. UPS (Uninterrupted Power Supply), backup, power station.

2. EV: Electric scooters, Golf trolleys.

3. Telecommunications Base Stations.

4. Energy Storage: Back-up power, miner’s lamp, portable power supply, digital products, etc.

5. Solar and wind power generation energy storage devices, family power storing station, solar street light.

  • Product Specification​
Electrical Characteristics
Nominal Voltage 12.8V
Nominal Capacity@0.2C 9.0Ah
Energy 115Wh
Internal Resistance ≤80m Ω
Cycle Life ≥3000 Cycles
Months Self Discharge ≤3.5% per month at 25℃
Mechanical
Cell & Method IFR26650 N30, 4S3P
Plastic Case ABS
Dimension(L × W × H × TH) 151 × 65 × 94 × 100mm
Weight Approx. 1.06Kg
Terminal F2
Standard Charge
Charge Voltage 14.6 ± 0.2V
Charge Mode(CC/CV) At 0℃~45℃ temperature, charged to 14.6V at a constant current of
0.2C, and then charged continuously with constant voltage of
14.6V until the current was not more than 0.02C.
Charge Current 1.8A
Max. Charge Current 4.5A
Standard Discharge
Discharge Current 1.8A
Max. Continuous Current 9.0A
Max. Pulse Current 20A(<3S)
Discharge Cut-off Voltage 10.0V
Operating Environment
Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature —20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Protection Parameter
Over-current Protection Current 40A
Over-charge Protection Voltage 15.2V
Over-discharge Protection Voltage 9.2V
High Temperature Protection 65℃

  • Charge Characteristics

    Charge Characteristics @0.2C&0.5C, 25

Prismatic Lifepo4 Motorcycle Battery , Lightweight Motorcycle Battery 12.8V 9AH

  • Different Rate Discharge Curve

Different Rate Discharge Curve @ 25 ℃

Prismatic Lifepo4 Motorcycle Battery , Lightweight Motorcycle Battery 12.8V 9AH

  • Factory Overview

Prismatic Lifepo4 Motorcycle Battery , Lightweight Motorcycle Battery 12.8V 9AHPrismatic Lifepo4 Motorcycle Battery , Lightweight Motorcycle Battery 12.8V 9AH
