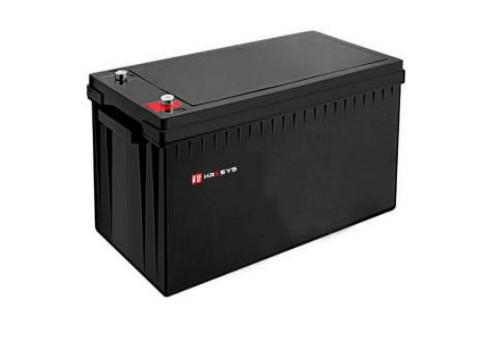

200AH Safety Lithium Ion Motorcycle Battery 2560Wh 522 × 238 × 218 × 220mm
200AH Safety Lithium Ion Motorcycle Battery 2560Wh 522 × 238 × 218 × 220mm
Specifications
Brand Name :
HRESYS
Model Number :
VHR ES12200LFP
Certification :
CE/UL
Place of Origin :
China
Nominal Capacity@0.2C :
204Ah
Nominal Voltage :
12.8V
Energy :
2560Wh
Internal Resistance :
≤35m Ω
Cycle Life :
≥3000 Cycles
Months Self Discharge :
≤3.5% per month at 25℃
Dimension(L × W × H × TH) :
522 × 238 × 218 × 220mm
Weight :
Approx. 27Kg
MOQ :
10 Pcs
Price :
Negotiable
Packaging Details :
Box/carton(standard package)
Delivery Time :
30 DAYS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800000 PCS/YEAR
Description

200AH High Capacity/ long cycle life Lifepo4 UPS/golf cart Lithium Ion Battery Pack

  • HRESYS Integrated Lithium-ion Battery

ES-LFP Series Lithium-ion Battery is an ideal replacement for traditional

lead acid battery utilizing advanced LiFePO4 technology and integrated

BMS with the benefits of long cycle life, light in weight, safety and

excellent high and low temperature performance. ES-LFP Series Lithium-

ion Battery is widely used in energy storage, UPS, golf cart and other lead

acid battery replacement

  • Superior Character

1, Good performance under high and low temperature

2, Good safety performance.

3, Good cycle life time

4, Good safety performance

5, High Safety Ensured by Smart BMS.

6, No pollution during manufacture.

  • Application

Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system

  • Product Specification​
Electrical Characteristics
Nominal Voltage 12.8V
Nominal Capacity@0.2C 204Ah
Energy 2560Wh
Internal Resistance ≤35m Ω
Cycle Life ≥3000 Cycles
Months Self Discharge ≤3.5% per month at 25℃
Mechanical
Cell & Method IFR32700 N60, 4S34P
Plastic Case ABS
Dimension(L × W × H × TH) 522 × 238 × 218 × 220mm
Weight Approx. 27Kg
Terminal M8
Standard Charge
Charge Voltage 14.6 ± 0.2V
Charge Mode(CC/CV At 0℃~45℃ temperature, charged to 14.6V at a constant current of
0.2C, and then charged continuously with constant voltage of
14.6V until the current was not more than 0.02C.
Charge Current 40A
Max. Charge Current 100A
Standard Discharge
Discharge Current 40A
Max. Continuous Current 100A
Max. Pulse Current 200A(<3S)
Discharge Cut-off Voltage 10.0V
Operating Environment
Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature —20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Protection Parameter
Over-current Protection Current 300A
Over-charge Protection Voltage 15.2V
Over-discharge Protection Voltage 9.2V
High Temperature Protection 65℃

  • Different Rate Discharge Curve

Charge Characteristics @0.2C&0.5C, 25
