Specifications
Brand Name :
LILEAD
Model Number :
S24110
Certification :
CE,UN,IP67
Place of Origin :
china
MOQ :
100
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000pcs/month
Delivery Time :
40 working days
Packaging Details :
Boxed
Type :
Lifepo4
Size :
376*194*223mm
Cycle life :
6000 cycles with DOD10%
Nominal voltage :
25.6V
Nominal capacity :
110AH
Weight :
19.8Kg/ 43.6lbs
Color :
Black
Oem/odm :
Accepatable
Description

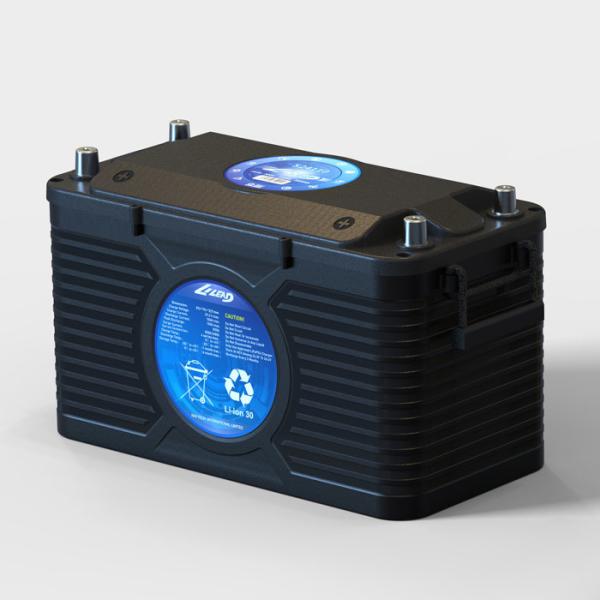

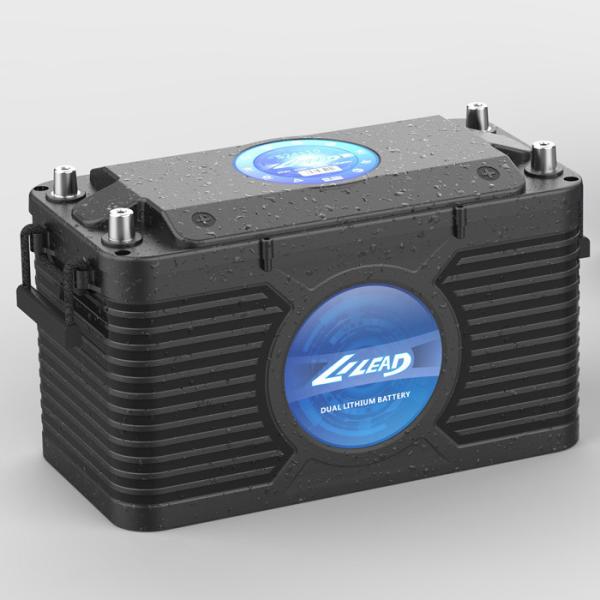

Truck Air-conditioning Lithium Battery 24V 110Ah

LILEAD dual 24V lithium marine battery is high performing dual purpose deep cycle batteries that can handle both starting and cycling. LILEAD S24110 dual 24V lithium marine battery has increased peak amps over our deep cycle lithium batteries. This increase in peak amps can be used to start motors, electric start generators and other high amp draw devices.

7000W surge output (60S)
LILEAD S24110 dual 24V lithium marine battery can support bow thruster, winch, air-conditioning etc high power equipment on the yacht, RV etc.

20 times cycle life
Long lasting life cycles at 2000 of 100% DOD, and 6000 cycles of 90% DOD. It’s 20 times longer than lead acid battery.
LILEAD S24110 dual 24V lithium marine battery offers 2 years warranty.

0 emissions
LILEAD S24110 dual 24V lithium marine battery produces zero emissions or carbon footprint during use, emits no sulfur, no greenhouse gases, and does not damage the environment. It's good for you and the planet.


0 Maintenance
No acid or water. No trickle charging. No mess. LILEAD S24110 dual 24V lithium marine battery just works, day in and day out.

Drop in replacement
Dimension: 376*194*223mm 14.8*7.7*8.9inch
Can be charged via alternator.


Certifications
LILEAD S24110 dual 24V lithium marine battery cells are EV grade LiFePO4 battery cell, which is the best LiFePO4 battery cell in market. Cells are UL1642 certified and have been tested per IEC62133 standards.
LILEAD S24110 dual 24V lithium marine battery are UN38.3 certified. Meets international regulation for air, ground, train and marine transport.


It’s also IP67 and , CE-EMC certified, perfect as lithium leisure battery for marine application.
LILEAD S24110 dual 24V lithium marine battery housing is UL94-V0 certified, its top flammability grade for battery plastic housing.

Application
Trolling motor
Sailboat
Yacht
Houseboats
RV’s
Trailers
Off-grid, homes
Overlanders

S24110 BATTERY TECH DATA
Stored Energy 2816Wh
Rated capacity 110Ah
Dimension (L*W*H) 376*194*223mm 14.8*7.62*8.92inch
Nominal voltage 25.6V
Volt range 20V-29.2V
Charge time Standard 5.5h
Rapid 1.5h
Charge method
CC-CV
Standard 10A/29.2V
Rapid 100A/29.2V
Max discharge current Crank 800A
Surge (60S) 300A
continous 100A
Cycle life
0.5C, 23℃/73℉
10% >6000 cycles
100% >2000 cycles
Operating temperature range Charge 0℃~55℃/ 32℉~131℉
Discharge -20℃~60℃/ -4℉~140℉
Storage (1 month) -20℃~45℃/ -4℉~113℉
Storage (6 month) -10℃~35℃/ 14℉~95℉
Water proof IP67
Flammability rating UL94-V0
Approx weight 19.8Kg/ 43.6lbs
Series & parallel connection Max 2 series connection.
Multiple parallel connection for yachts.
Batteies must be fully charged before series or parallel connection.
BMS Protection
Balance Current 40mA
Activate volt 3.55V/ cell
High temperature protection (MOSFET) Protection 85℃/ 185℉
Release 75℃/ 167℉
High temperature protection (cell) Protection 65℃/ 149℉ (charge) 70℃/ 158℉ (discharge)
Release 55℃/ 131℉ (charge) 60℃/ 140℉ (discharge)
Low temperature protection (cell) Protection 0℃/ 32℉ (charge) -20℃/ -4℉ (discharge)
Release 10℃/50℉ (charge) -10℃/ 14℉ (discharge)
Over-charge Protection 30.8V (3.85V/cell)
Relase 29.2V (3.65V/cell)
Over-discharge Protection 18.4V (2.3V/cell)
Relase 20.0V (2.5V/cell)
Short-circuit Protection 3800A
Relase Remove load for the short circuit protection to release
LILEAD reserves the right to make adjustments to this publication at any time, without notice or obligation.
