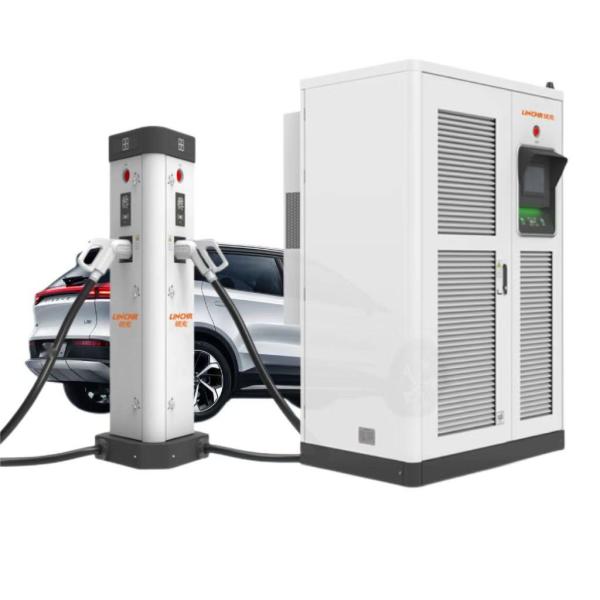

360kW Dc Ev Charger For Home 2 To 12 Guns Split Type Terminal
360kW Dc Ev Charger For Home 2 To 12 Guns Split Type Terminal
Specifications
Brand Name :
LINCHR
Model Number :
LC-DC-360kW
Place of Origin :
CN
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
5-10 work days
Packaging Details :
container
Product name :
360kW Dc Ev Charger For Home 2 To 12 Guns Split Type Terminal
Power :
360kW
Standard :
GB-T
Voltage :
AC324v～AC436V
Current :
≤685A
Startup :
SWIPING、SCAN
Size :
1200mm*910mm*1800mm
Weight :
791kg
Efficiency :
97%
Install :
stand up
Protection levels :
IP54
Description

2 To 12 Guns Split-Type Terminal 360kW DC EV Charger 7-Inch LCD Touch Screen

1.Descriptions

An integrated charging station intended for speed and upkeep, the 360kW split DC Quick Charge. Depending on the model, a DC EV charger can provide 140 to 500 amps of power. It has a 7-inch LCD touch panel that gives drivers an intuitive charging experience by showing instructions and giving them feedback in real time while they charge. With 2–12 charging terminals available. This DC fast EV charger features excellent performance, compatibility, and serviceability and can connect to the network by Wi-Fi, Ethernet, or 4G connection.

2.Specifications

Product name DC EV Charger
Rated Power 360kW
Input voltage AC323V～AC437V
Input current ≤685A
Power factor ≥0.99
Harmonic current ≤3%
Output current single 250A,double 500A
Basic characteristics
BMS 12V/24V compatible
Work efficiency 96%
Startup mode SWIPING,SCAN,VIN
Interaction mode 7-inch LCD touch screen
Communication interface Ethernet,4G-LTE
Gun thread 8m
Charging interface 2
Ambient Temperature -30℃～+50℃
Relative humidity 5%～95% (No dewing)
Altitude ≤2000m
Site(W*D*H) 1200mm*910mm*1800mm
Protection levels IP54
Weight 760KG
Perform standard

GB/T-18487.1-2015,GB/T-20234.3-2015

GB/T-27930-2015,JJG1149-2018

3.Functions

A. To decorate user experience, the 360KW DC EV Charger gives a self-management functionality so much permits far off boob diagnostics yet model updating.

B. Numerous start charging strategies because of DC EV charger system to enable clients in conformity with select; Improve purchaser journey along terminal digital real-time show concerning SOC values then much standard conditions.

C. The 360KW DC EV Charger utilizes a structure on module assignment in accordance with take away the trouble over receiving, storing, and installation out of clients into batches;

D.charging bank function solar coloration modesty design, who may enhance scanning identification accuracy, remedy because of couple yet greater objects protection design, or efficaciously address the problem over chastity display now not wight colorful in advise sunlight.
