Car Commercial EV Charging Points For Home 360kW 685A 380V Linchr Ev
Car Commercial EV Charging Points For Home 360kW 685A 380V Linchr Ev
Specifications
Brand Name :
LINCHR
Model Number :
LC-DC-360kW
Place of Origin :
CN
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
5-10 work days
Packaging Details :
container
Product name :
Car Commercial EV Charging Points For Home 360kW 685A 380V Linchr Ev
Power :
360kW
Standard :
GB-T
Voltage :
AC324v～AC436V
Current :
≤685A
Startup :
SWIPING、SCAN
Size :
1200mm*910mm*1800mm
Weight :
760kg
Efficiency :
97%
Install :
stand up
Protection levels :
IP54
Description

Commercial Charging Station 360kW 685A 380V Standup 8m Gun Line Length

1.Descriptions

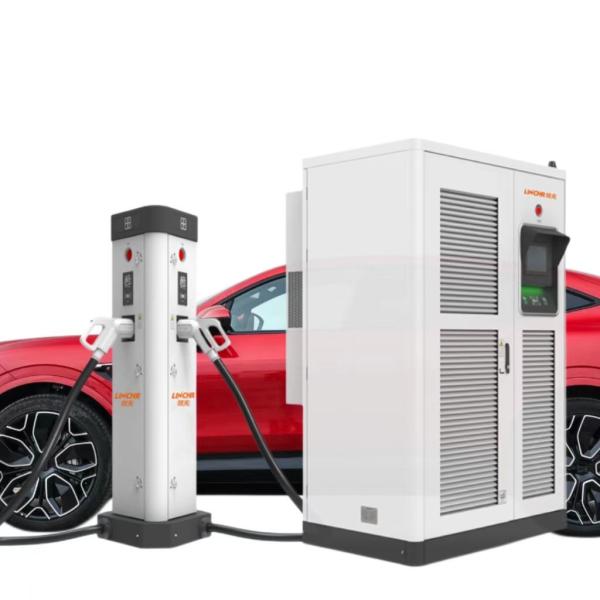

The 360KW double-gun charging pile is widely used in commercial charging piles, mainly for fast charging of electric vehicles, and the output power of single gun can reach 180kW. The product is installed outdoors, with waterproof and dust-proof design and protection grade of IP54. DC electric vehicle charger integrates AC power distribution unit, lightning protection unit, charger unit, monitoring unit, bottom data acquisition unit and metering unit. DC electric vehicle charger adopts modular design, with cable length of 8 meters. It is easy to install and debug, easy to operate and maintain, and is an ideal choice for commercial charging stations.

2.Specifications

Product name Commercial Charging Station
Rated Power 360kW
Input voltage AC323V～AC437V
Input current ≤685A
Power factor ≥0.99
Harmonic current ≤3%
Output current single 250A,double 500A
Basic characteristics
BMS 12V/24V compatible
Work efficiency 96%
Startup mode SWIPING,SCAN,VIN
Interaction mode 7-inch LCD touch screen
Communication interface Ethernet,4G-LTE
Gun thread 8m
Charging interface 2
Ambient Temperature -30℃～+50℃
Relative humidity 5%～95% (No dewing)
Altitude ≤2000m
Site(W*D*H) 1200mm*910mm*1800mm
Protection levels IP54
Weight 760KG
Perform standard

GB/T-18487.1-2015,GB/T-20234.3-2015

GB/T-27930-2015,JJG1149-2018

3.Functions

A. The charger is designed with cross-shaped louvers to improve product reliability;


B. The air inlet of the charger adopts a 50pp dense/20mm thick dust screen to improve product reliability and ease of maintenance;


C. The DC output contactor is equipped with auxiliary contacts. The charger can detect the status of the DC contactor in real time without opening the module. The self-test time is short and the startup speed is fast. After the charger is started, it needs to continuously detect the status of the contactor and stop the machine.
