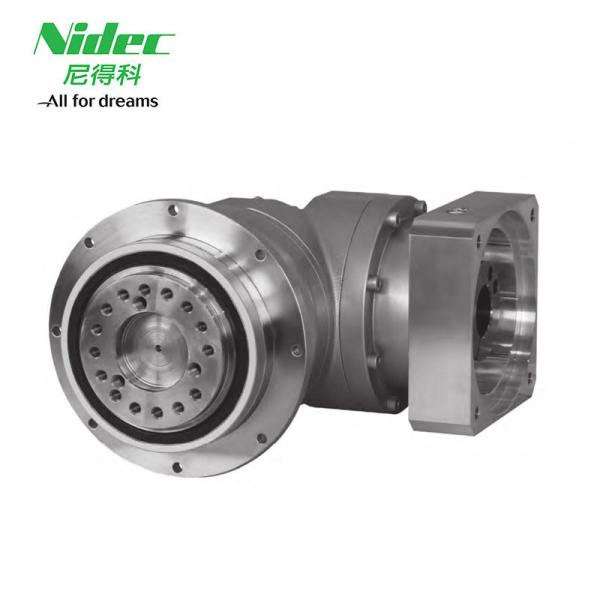

Max Radial Load 3000N Nidec Shimpo Gearbox Planetary Gearing Arrangement
Max Radial Load 3000N Nidec Shimpo Gearbox Planetary Gearing Arrangement
Specifications
Brand Name :
Nidec
Model Number :
VRS
Certification :
CE,ISO
Place of Origin :
Japan
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Standard export carton packing, wooden case, foam board inside for protection.
Product Name :
Nidec Shimpo Gearbox
Manufacturer :
Nidec Shimpo
Product Series :
VRS Series
Weight (KG) :
3-5KG
Frame Size :
100
Gearing Arrangement :
Planetary
Nominal input speed :
3000
Maximum input speed :
6000
Application :
Robotic, Automation Equipment, CNC Machine
Description

Nidec Shimpo Gearbox Planetary Gearing Arrangement Max Radial Load 3000N

Product Description:

Nidec Shimpo Gearbox provides industrial gearbox solutions with high performance and high quality. The VRS series offers an ideal gearbox for robotic, automation equipment, and CNC machines with a maximum radial load of 3000N. The gearing arrangement is planetary, which is specifically designed for robotic, automation equipment, and CNC machines. The Nidec Shimpo Gearbox is reliable, long-lasting, and can be customized to meet any application requirements. It is an excellent choice for those who need a reliable, high-performance gearbox. With its superior quality and robust construction, the Nidec Shimpo Gearbox is the perfect solution for your industrial gearbox needs.

Technical Parameters:

Frame

Size

 Stage Ratio

Nominal

Output torque

Maximum

Output torque

 Emergency stop torque

Nominal

Input speed

Maximum

Input speed

Permitted

Radial load

Permitted

Axial load
[Nm] [Nm] [Nm] [rpm] [rpm] [N] [N]
100B 1 Single 3 120 225 500 3000 6000 3400 4800
4 120 330 625 3000 6000 3700 5200
5 180 330 625 3000 6000 4000 5600
6 180 330 625 3000 6000 4200 5900
7 180 330 625 3000 6000 4400 6100
8 180 330 625 3000 6000 4600 6300
9 120 225 500 3000 6000 4800 6300
10 120 225 500 3000 6000 4900 6300
2 Double 15 120 225 500 3000 6000 5600 6300
16 180 330 625 3000 6000 5700 6300
20 180 330 625 3000 6000 6100 6300
25 180 330 625 3000 6000 6500 6300
28 180 330 625 3000 6000 6700 6300
30 120 225 500 3000 6000 6900 6300
35 180 330 625 3000 6000 7000 6300
40 180 330 625 3000 6000 7000 6300
45 120 225 500 3000 6000 7000 6300
50 180 330 625 3000 6000 7000 6300
60 180 330 625 3000 6000 7000 6300
70 180 330 625 3000 6000 7000 6300
80 180 330 625 3000 6000 7000 6300
90 120 225 500 3000 6000 7000 6300
100 120 225 500 3000 6000 7000 6300

Frame

Size

 Stage Ratio

Maximum

Radial load

Maximum

Axial load

 Weight

Moment

Of inertia ≤14

Moment

Of inertia ≤19

Moment

Of inertia≤28

Moment

Of inertia≤38
[N] [N] [kg] [Kgc㎡] [Kgc㎡] [Kgc㎡] [Kgc㎡]
100B

1

Single

 3 7000 6300 8.1 - 3.2 5.2 13
4 7000 6300 - 2.0 4.0 12
5 7000 6300 - 1.5 3.6 11
6 7000 6300 - 1.3 3.3 11
7 7000 6300 - 1.1 3.1 11
8 7000 6300 - 1.0 3.0 11
9 7000 6300 - 0.96 3.0 11
10 7000 6300 - 0.93 3.0 11

2

Double

 15 7000 6300 8.8 0.42 0.86 2.8 -
16 7000 6300 0.48 0.91 2.9 -
20 7000 6300 0.40 0.83 2.8 -
25 7000 6300 0.38 0.82 2.8 -
28 7000 6300 0.44 0.87 2.8 -
30 7000 6300 0.29 0.74 2.7 -
35 7000 6300 0.37 0.81 2.7 -
40 7000 6300 0.28 0.73 2.7 -
45 7000 6300 0.37 0.80 2.7 -
50 7000 6300 0.28 0.73 2.7 -
60 7000 6300 0.28 0.73 2.7 -
70 7000 6300 0.28 0.73 2.7 -
80 7000 6300 0.28 0.73 2.7 -
90 7000 6300 0.27 0.73 2.7 -
100 7000 6300 0.27 0.73 2.7 -

Max Radial Load 3000N Nidec Shimpo Gearbox Planetary Gearing ArrangementMax Radial Load 3000N Nidec Shimpo Gearbox Planetary Gearing ArrangementMax Radial Load 3000N Nidec Shimpo Gearbox Planetary Gearing ArrangementMax Radial Load 3000N Nidec Shimpo Gearbox Planetary Gearing Arrangement

Wildly Application:

Large precision planetary gear reducer is widely used in: wharf, mining, transportation, lifting, construction, oil, ocean, ship, steel and other fields.

Small (micro) precision planetary reducer is widely used in medical devices, smart home, consumer electronic products, antenna drive, home appliances, automobile drive, robot field, aircraft field, etc.
