HGW25 Linear Guide Slide H Type 2 Axis Linear Slide 5000mm
HGW25 Linear Guide Slide H Type 2 Axis Linear Slide 5000mm
HGW25 Linear Guide Slide H Type 2 Axis Linear Slide 5000mm
HGW25 Linear Guide Slide H Type 2 Axis Linear Slide 5000mm
Specifications
Brand Name :
ZANE
Model Number :
ZANE-ghw
Certification :
CE，ISO
Place of Origin :
China
MOQ :
1 set
Price :
Please contact for a quote
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per month
Delivery Time :
Three days at the soonest after order confirmation
Packaging Details :
Standard export carton packing, wooden case, foam board inside for protection.
product name :
heavy duty linear guide rail
Length :
100-6000mm(Customized)
Application :
Automatic System
Keyword :
Linear Guide Rail Ball Bearing
Structure :
Slide Rail + Slide Block
Block Type :
with flange/ without flange
linear guide type :
W type or H type or R type
Description

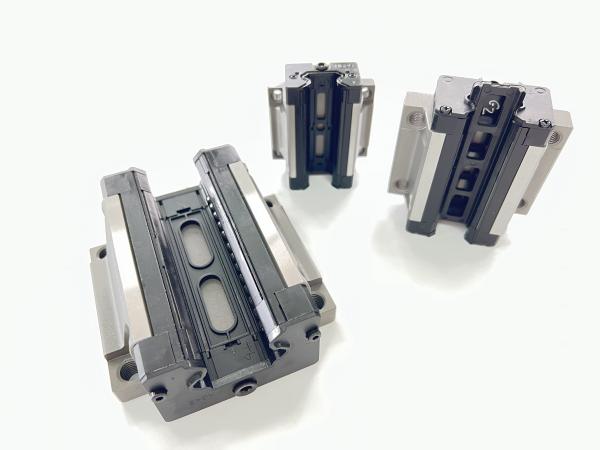

HGW25 Customized Linear Guide Rail System 2 Axis Linear Slide

Linear guides, also known as linear guideway, sliding guides and linear slides,including guide rail and sliding block, it is used to support and guide the moving parts to make reciprocating linear motion in a given direction. Mainly used in high-precision or high-speed linear reciprocating motion applications, can bear a certain torque, and can achieve high-precision linear motion under high load.

ModelCombination size (mm)Block size(mm)Slide rail size(mm)

Fixing bolts for slide rails
size

Basic dynamic fixed loadBasic fixed fixed loadAllowable static momentweight
Mr kN-m

Mp
kN-m

My kN-m

block
kg

slide
kg/m

HHiNWBBicULKlGM (A/B)TTih2h3WrHrDhdPE(mm)C(kN)C0(kN)
GHW15CA244.31647384.53039.461.485.3M5/ φ4.568.93.953.715157.55.34.56020M4xl611. 3825.310.170.150.150.171.45
GHW20CA304.621.5635354050.577.510.2512M6/φ6810672017.59.58.566020M5xl617.7537.840.380.270.270.402.21
GHW20HA65.292.217.621.1848.840.480.470.470.52
GHW25CA365.523.570576.545588411.812M8/φ7781469232211976020M6x2026.4856.190.640.510.510.593.21
GHW25HA78.6104.622.132.7576.000.870.880.880.80
GHW30CA4263190729527097.414.2512M10/φ98.5166.510.82826141298020M8x2538.7483.061.060.850.851.094.47
GHW30HA93120.425.7547.27110.131.401.471.471.44
GHW35CA487.5331008296280112.414.612M10/φ910.118912.63429141298020M8x2549.52102.871.731.201.201.566.30
GHW35HA105.8138.227.560.21136.312.292.082.082.06
GW45CA609.537.5120100108097139.41312.9M12/φ1115.1228.520.5453820171410522.5M12x3577.57155.933.012.352.352.7910.41
GHW45HA128.8171.228.994.54207.124.004.074.07369
GHW55CA701343.51401161295117.7166.717.3512.9M14/φ1417.526.51219534423201612030M14x45114.44227.815.664.064.064.5215.08
GHW55HA155.8204.836.4139.35301.267.497.017.015.96
GHW65CA901553.517014214110144.2200.223.112.9M16/φ162537.51515635326221815035M16x50163.63324.7110.026.446.449.1721.18
GHW65HA203.6259.652.8208.36457.1514.1511.1211.1212.89
