CNC Machine Linear Guide Slider GRH Series Linear Guide Block Linear Motion Bearing
CNC Machine Linear Guide Slider GRH Series Linear Guide Block Linear Motion Bearing
Specifications
Brand Name :
ZANE
Model Number :
GRH15CA
Certification :
CE,ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Standard export carton packing, wooden case, foam board inside for protection.
Product Name :
Linear Motion Guide
Weight (KG) :
1.8
Material :
Stainless Steel,chrome steel
Accurancy class :
H, P, SP, UP
Blockes types :
Square, flanged
Core Components :
Bearing
Application :
CNC Machining Parts
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Other
Description

Product Description:

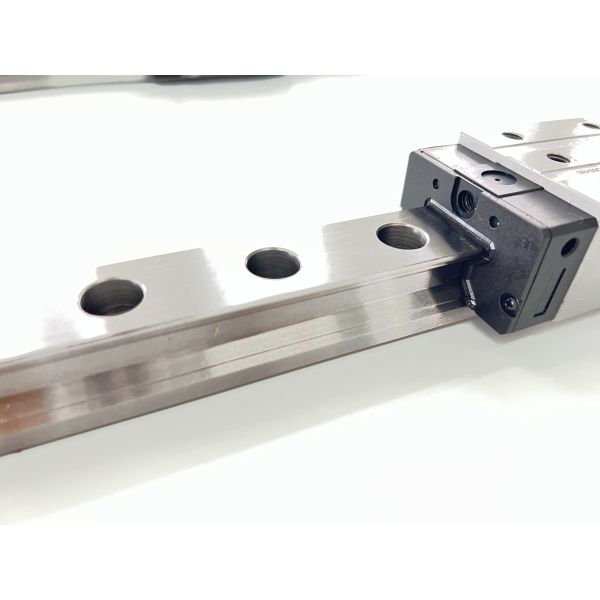

GR series linear guideway features a roller as the rolling element instead of steel balls.


The roller series offers super high rigidity and very high load capacities. GR series linear guide rail is designed with a 45-degree angle of Contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions. GR series has the high performance that provides high-precision manufacturing and achieves longer service life.


It features the same load in four directions (up/down/right/left) and self-aligning to absorb installation-error capability.


Linear slide rail as a type of rolling guide, run by the power between infinite scroll circulation steel ball in the slider and slippery course, along the slippery course load platform can easily do high precision linear movement.


Linear slide rail as a type of rolling guide, run by the power between infinite scroll circulation steel ball in the slider and slippery course, along the slippery course load platform can easily do high precision linear movement.

Technical Parameters:


CNC Machine Linear Guide Slider GRH Series Linear Guide Block Linear Motion Bearing

Model Combination size (mm) Block size(mm) Slide rail size(mm)

Fixing bolts for slide rails

size

 Basic dynamic fixed load Basic fixed fixed load Allowable static moment Weight
Ma

kN-m		 Mp

kN-m		 My

kN-m		 block

kg		 slide

kg/m
H H₁ N W B B₁ C C₁ L₁ L K₁ K₂ G M T T₁ H₂ H₃ Wg Hg D h d P E (mm) C(kN) C₀ (kN)
GRW15CC 24 4 16 47 38 4.5 30 26 45 68 11.4 4.7 5.3 M5 6 6.95 3.6 6.1 15 16.5 7.5 5.7 4.5 30 20 M4x16 11.3 24 0.311 0.173 0.173 0.22 1.8
GRW20CC 30 5 21.5 63 53 5 40 35 57.5 86 13.8 6 5.3 M6 8 10 4.3 4.3 20 21 9.5 8.5 6 30 20 M5x20 21.3 46.7 0.647 0.46 0.46 0.47 2.76
GRW20HC 77.5 106 23.8 26.9 63 0.872 0.837 0.837 0.63
GRW25CC 36 5.5 23.5 70 57 6.5 45 40 64.5 97.9 15.75 7.25 12 M8 9.5 10 6.2 6 23 23.6 11 9 7 30 20 M6x20 27.7 57.1 0.758 0.605 0.605 0.72 3.08
GRW25HC 81 114.4 24 33.9 73.4 0.975 0.991 0.991 0.91
GRW30CC 42 6 31 90 72 9 52 44 71 109.8 17.5

28.5		 8 12 M10 9.5 10 6.5 7.3 28 28 14 12 9 40 20 M8x25 39.1 82.1 1.445 1.06 1.06 1.16 4.41
GRW30HC 93 131.8 48.1 105 1.846 1.712 1.712 1.52
GRW35CC 48 6.5 33 100 82 9 62 52 79 124 16.5 10 12 M10 12 13 9 12.6 34 30.2 14 12 40 20 M8x25 57.9 105.2 2.17 1.44 1.44 1.75 6.06
GRW35HC 106.5 151.5 30.25 73.1 142 2.93 2.6 2.6 2.40
GRW45CC 60 8 37.5 120 100 10 80 60 106 153.2 21 10 12.9 M12 14 15 10 14 45 38 20 17 14 52.5 22.5 M12x35 92.6 178.8 4.52 3.05 3.05 3.43 9.97
GRW45HC 139.8 187 37.9 116 230.9 6.33 5.47 5.47 4.57
GRW55CC 70 10 43.5 140 116 12 95 70 125.5 183.7 27.75 12.5 12.9 M14 16 17 12 7.5 53 44 23 20 16 60 30 M14x45 130.5 252 8.01 5.4 5.4 5.43 13.98
GRW55HC 173.8 232 51.9 167.8 348 11.15 10.25 10.25 7.61
GRW65CC 90 12 53.5 170 142 14 110 82 160 232 40.8 15.8 12.9 M16 22 23 15 15 63 53 26 22 18 75 35 M16x50 213 411.6 16.20 11.59 11.59 11.63 20.22
GRW65HC 223 295 72.3 275.3 572.7 22.55 22.17 22.17 16.58

Characteristics:

1. High precision: The manufacturing precision of the guide rail is extremely high, and can reach the precision of micron level, so that it can well maintain the linear motion and stability of the moving parts.

2. Good wear resistance: guide rail materials are usually made of high hardness, high toughness and wear-resistant materials, such as steel, copper, aluminum, titanium, etc., which can ensure the long-term service life of the guide rail.

3. Strong load resistance: the guide rail can withstand large axial and radial loads, and can meet the requirements of various specifications of machinery and equipment.

4. High rigidity: The rigidity of the guide rail is good, which can effectively resist external torque and bending force and ensure the stability of moving parts.

5. Smooth movement: The surface of the guide rail is specially treated, the friction coefficient is small, the movement is stable, and it is not easy to cause stagnation and friction loss.
