1.Appearance

Rugged extruded aluminum housing. Compact and sleek design. Super simple lines.

2.Optical

Upper lighting through the reflection of the cover, It can bring soft light environment to the space and greatly reduce the eyes fatigue

3.Structure single light suspension wire is fixed, multiple lights can be used with various The connector is combined into a light Group shape .

4.The luminous area of the same luminous flux of anti-dazzle is more than ten times of that of the lamp tube, UGR<19.

The brightness of the lamp surface is greatly reduced. The side of light guide plate is made special Processing, no dazzling.

Dimming & Multi-Sensor System

· 3 different dimming system, DALI, 0-10V and DIMswitch

· It does not only have an integrated microwave sensor for movement detection, but also a daylight sensor.

Trunking Rail

· Trunking rail as standard with 5, 8 or 12-core through-wiring with 2.5mm²cable for power supply and 1.5mm² cable for dimming control.

· The maximum current is 16A, allowing 70pcs of 1500mm 45W in one serial row 220VAC power supply,up to 100 meters.

Emergency Lighting Function

· It can work on normal mains and automatically switch to emergency supply in the event of a power failure to provide sufficient light and ensure safe evacuation in emergency situations.

· A wide variety of self-contained battery is available, as well as two independent emergency lighting circuits in the trunking.

Installation

· Pendant Chain Installation

· Pendant Cord Installation

· Pendant Rod Installation

· Surface Mounted

. Mounting Clip

Node Connector

· L, T and X Standard Module Node connectors

· Each node connector has diverse of electrical feed-in and feed-out

Install to trunking rail where there is no requirement of luminaire.

At each of the blank cover, there is a stopper to prevent the lights from being emitted.

Uplighting

Directs 10% of the light upward to the ceiling and 90% reflected onto the floor, with or without uplighting is available

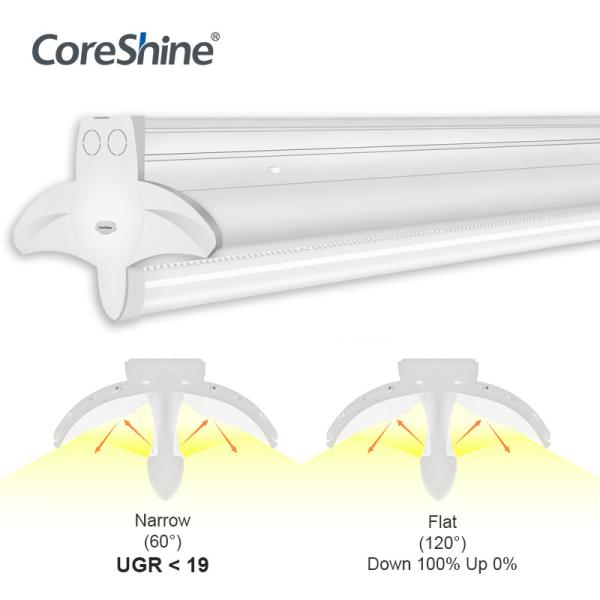

Beam Angle

Unique reflective design, two different reflector face forms two kinds of reflection angle

Length Options

Different length with various power is available

Europe standards and North American standards

To be accessorial lights for commercial places, industrial, building hall, hotel, store,shop and so on.

Applications include spotlighting in offices, residential applications, museums, galleries, retail environments, cafes etc.

Q1. Can I have a sample order?
A: Yes.
Q2. What's the lead time?
A: Sample 3-5 days, mass order 15-30 days.
Q3. MOQ?
A: 1pc available.
Q4.Payment way?
A: TT, Paypal, West Union, Pay online, Visa, Alibaba Pay later, Trade assurance. L/C.
Q5. Logo customize?
A: Yes.
Q6. What's the guarantee?
A: 5 years warranty free after-sales service.
Q7: How long is our aging test ?
A: At least 24 hours aging test on 100% complete Lighting Fixture, 48 hours aging test on the first batch of order.

Because lighting fixtures delivered without aging put customers at risk of faulty LED products. Aging test process is treat seriously in
our company.

1. Quality is our Culture

2. Fast Delivery Time

3. Legal Business Assurance and Trust

4. Professional Customer-care Service

5. Customization is acceptable

6. Cooperate to Develop Your New Products
