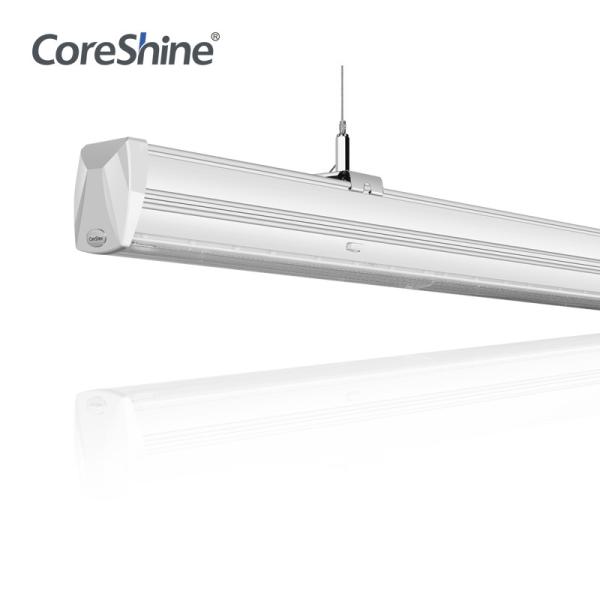

150cm Indoor LED Linear Lighting , 95Ra LED Linear Trunking System
150cm Indoor LED Linear Lighting , 95Ra LED Linear Trunking System
150cm Indoor LED Linear Lighting , 95Ra LED Linear Trunking System
150cm Indoor LED Linear Lighting , 95Ra LED Linear Trunking System
Specifications
Brand Name :
CoreShine
Model Number :
CFL-xxxx-X1X2-X3WH
Certification :
UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000-30000 pcs/month
Delivery Time :
5-8 working days
Packaging Details :
one set in one box (1678*170*92mm)
Item :
Led Linear Trunking System
Material :
Aluminum Alloy
Power :
35W
Beam Angle :
25°;60°;90°;120°
CRI> :
80Ra/95Ra
Color :
White,Black,Silver
Warranty :
5 years
Lifespan :
50000 hours
Description

Indoor Led Linear Lighting System 1500mm 35W Linear Trunking Solution

Limited Glare Led Linear Trunking System with Dimmable 1-10V

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.
With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

  • FEATURES

• High Efficiency: 160lm/W

• Innovative Structure Design

• Operating temperature -22C to 55°C

• Linkable for continuous runs

• Suspendant or Surface Mounting Installation

  • DETAILS
Item: Led Linear Light Trunking System
Style: S-Line Material: Aluminum Alloy + PMMA lens / PC cover
Length: 1200mm, 1500mm, 2400mm, 3000mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm, 1200mm, 1500mm, 2400mm, 3000mm Input Voltage: AC220-240VAC/100-277VAC
UGR: <19 CRI (Ra>): 80/95
Beam Angle: 25°;60°;90°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Lumen: 4800lm-19800lm Dimming: DALI, 1-10V, DIMswitch
Driver: Coreshine/Rubycon Color: White, Black, Silver
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 160lm/w,180lm/w Power: 35W,50W,65W,70W,100W,150W...
Warranty: 5 years Lifespan: 50000 hours
Installation Chain, Cord, Rod, Surface Mounted Connector L/T/X Node Connector can be choose
Function Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type: Motion Sensor Switch Shipping: DHL/UPS/FEDEX/TNT...
Applications: Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

  • APPLICATIONS

Warehouse / Factory / Workshop

Hotel / Hospital / Supermarket

Conference / Meeting room / Factory / Office

Residential Home / Institution Building

School / College / University

Church / Theater / Sport Area

  • Returns of Investment COMPARISON

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m

Unite

S-Line

LED Tube

Lighting Effect

lm/w

160

100

Qty of Luminaire

set

600

960

Total Power Consumption

KW

30

48

Unite Price of Electric

CNY/KWH

1.5

Light Time

Hour/Day

1.2

Electric bill/day

CNY

540.00

864.00

Electric bill/month

CNY

16,200.00

25,920.00

Electric bill/year

CNY

194,400.00

311,040.00

Save the cost per year

CNY

116,640.00

  • FAQ

Q1: Are you a factory?
A: Yes, we are a professional manufacture focus on LED lighting which widely used in Supermarkets, Warehouses, Stores, Museums, etc.

Q2: How do you offer samples?
A: Samples for charge with shipping cost paid by the clients

Q3: What is your delivery time?
A: Sample order: 3-7 working days
Mass order: 12-18 working days after 30% deposit received

Q4: What is your warranty?
A: We offer 5 year warranty for the products.

Q5: Can your factory make the lights based on customers' design?
A: Yes, we offer OEM and ODM service, we have professional engineers to design and produce according to your requirement.

Q6:Where is your factory? How can I get there?
A: Our factory is located in Guanlan, Shenzhen, Guandong Province, about 1 hours by car from Baoan airport ; 2 hours by car from Guangzhou. Welcome to visit our factory!

  • OUR ADVANTAGES

Our quality control (4 times 100% checking and 24 hours aging)
1.Raw material 100% check before production.
2.Order must have a first sample and full check before manufacturing process.
3.100% check before aging.
4.24 hours aging with 500 times on off testing.
5.100% final inspection before packing
