Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light
Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light
Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light
Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light
Specifications
Brand Name :
CoreShine
Model Number :
CTL-0614-X1X2-X3WH
Certification :
CE/CB/ETL/DTC/SAA/FCC/GS/UL
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000-30000 pcs/month
Delivery Time :
5-8 working days
Packaging Details :
Luminaire: Size: 1549*390*210MM Gross Weight: 28.2KG Trunking rail: Size: 1700*430*142MM Gross Weight: 18.8KG 10pcs/Carton
Item :
Track Linear Led Shop Light Fixture
Length :
600mm
Size :
600x60x11mm
Driver :
Flicker Driver / Non-flicker Driver
Power :
14W,16W,18W,20W...
Lumen :
2128lm-3040lm
Color :
White, Black
CRI :
>90Ra
Light Efficiency :
160lm/w
Application :
Supermarket, Warehouse, Workshop, Office, Car Parking Industrial etc.
Description

3 Phase Led Track Panel Light | Linkable Led Shop Lights

UL CB SAA Linear Track Led Shop Light Fixture for Retail Stores 600mm 14W CRI90

​​DESCRIPTION

CoreShine T-LINE track led linear light is an energy-efficient, low maintenance and easy to install to any track rails in the projects. Suit for Europe Standard and North America Standard.

T-line track linear is a custom design with perfectly matched to Europe 4 wire and North America 3 wires track rail. This new track linear is a continuous seamless lighting with option in-between to install track spot lights, even as a various lens options according to projects requirements. This new track linear is totally tool less easy to install saves time, cost and labor.

  • With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

  • For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.

Item: Shop Led Track Linear Light System
Series: T-Line Input Voltage: AC220-240VAC/100-277VAC
Length: 600mm,1200mm,1500mm,2400mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm,1000mm,1200mm,1500mm,2000mm,2400mm, 3000mm,4000mm Material: Aluminum Alloy + PMMA lens / PC cover
UGR: <19 CRI (Ra>): 80/90/95
Beam Angle: 60°;90°;120°; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Switch Type: Motion Sensor Switch Lumen: 2128lm-16000lm
Driver: Flicker driver / Non-flicker driver Color: White, Black
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 160lm/w Power: 14W-20W,35W-50W,70W-100W
Warranty: 5 years Lifespan: 50,000 h
Function: Sensor, Track Spot Light, Emergency Exit Light Shipping: DHL/UPS/FEDEX/TNT...
Applications: Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...
  • Output selectable by DIP switch
  • Constant current LED driver
  • Universal voltage input range
  • Steel casing driver, encapsulated
  • High efficiency >=90%
  • Over voltage protection with automatic restart
  • Overload protection
  • Short-circuit protection with automatic restart
  • Surge voltage: 2.5KV

TRACK LINEAR

  • ​DETAILS
    • Phase pre-selection via adaptor, track linear can be adjusted by moving right or left
    • For Europe standard 4wires,The maximum current is 10A, allowing 60pcs of 1500mm 35w in one serial row 220VAC power supply
    • For America standard 3wires,The maximum current is 10A, allowing 30pcs of 1500mm 35w in one serial row 100VAC power supply
    • Flexible change of installation position
    • Existing track rail

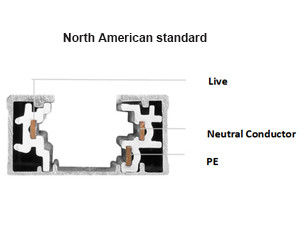

    • Track rail (4 wires / 3 phases) Track rail (3 wires / 1 phase)

      3 separated switchable circuits

      Adapter track box design ensures easy and intuitive fitting in the 3-phase track

      		 For North America Standard track spot light, there is only one circuit in the lamp.
      Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light
  • ADVANTAGES
    • Track Spot light can be installed in between
    • Track Linear can be used to existing track rail

LUMINAIRE

  • MULTIPLE OPTIONS

​1.​Different length with various power is available for Europe standards and North American standards.

Length
Power
 L x W x H CRI
Lumen
Code No.
600mm
14W/16W/18W/20W
 600x60x11mm >80Ra
2240lm-3200lm
CTL-06xx-X1X2-X3WH
600mm 14W/16W/18W/20W 600x60x11mm >90Ra 2128lm-3040lm CTL-06xx-X1X2-X3WH
1200mm
35W/40W/45W/50W
 1200x60x11mm >80Ra
5600lm-8000lm
CTL-12xx-X1X2-X3WH
1500mm
35W/40W/45W/50W
 1493x60x11mm >80Ra
5600lm-8000lm
CTL-15xx-X1X2-X3WH
1500mm 35W/40W/45W/50W 1493x60x11mm >90Ra 5320lm-7600lm CTL-15xx-X1X2-X3WH
2400mm
70W/80W/90W/100W
 2400x60x11mm >80Ra
11200lm-16000lm
CTL-24xx-X1X2-X3WH

2.Different diffuser for different distribution

  • Narrow 60° UGR<19
  • Wide 90°
  • Flat 120°
  • Double Asymmetric

Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light

  • OPTICS

The high light efficiency of 160lm/Watt makes reduction on energy consumption and additional cost. The LEDs keeps enough margin to make sure the luminaire efficiency reach the best level.​

Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light

APPLICATIONS

  • Warehouse
  • Supermarket
  • Underground parking garages
  • Wet indoor area
  • Production workshop
  • Railway station
  • Museum
  • Laboratories
  • And so on

Linkable 0.6m Retail Lighting Solutions , 90ra 3 Phase Track Light

CUSTOMIZATION

  • Fitting color can be refinished
  • Can be supplied with 3/4 circuit track adaptor
  • Dimmable options also available by special request
  • Customization options are subject to availability and minimum order quantities

FAQ

Q1: Can I have a sample for this color?
A: Yes, we welcome sample order to test and check quality. Mixed sample are acceptable.

Q2: What about the lead time?
A: Samples needs 3-5 days, mass production time needs 1-2 weeks for order quality.

Q3: Do you have any MOQ limit?
A: Low MOQ, 1pcs for sample checking is available.

Q4: How do you ship and how long does it take to arrive?
A: We usually ship by UPS, FedEx or TNT for small order. I t usually takes 5-7 working days to arrive. Airline and sea shipping also optional for bigger order.

Q5: How to proceed an order?

  1. Let us know your requirements or application.
  2. We quote according to your requirements or our suggestions.
  3. Customer confirms the samples and places deposit for formal order.
  4. We arrange the production.
  5. We dispatch the LED Linear Light by UPS, air, sea etc. When production finished.

Q6: Is it OK to print my logo on this light?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for this led linear light?

A: Yes, we offer 5 years warranty.


Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For detective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

OUR ADVANTAGES

  • 5 years warranty
  • Toolless installation
  • Brand Components
  • Heat radiating area 106cm²/w
  • Longer warranty, Less maintenance
  • Rigorous technical
  • Quick connector
  • Electrical safety design
  • Organized wiring
  • Modularity, integration structure

OUR SERVICES

1. We Are Factory With Own R&D Powerful Technology
2. We Can Offer Best Price With High Quality Products.
3. Low MOQ Qty To Support Different Sellers.
4. Support Custom Logo And Box.
5. Enough Stock To Keep Fast Lead Time.
6. You Will Enjoy Our Best Service For Customers.
