Specifications
Place of Origin :
China
Brand Name :
OEM
Model Number :
Mini linear actuator
Certification :
CE, ISO9001
Price :
$25-$35/PC
Packaging Details :
12pcs linear actuator per carton
Delivery Time :
12 work days after payment
Payment Terms :
TT, Paypal, Western union
Supply Ability :
10000pcs linear actuator per carton
HS code of linear actuator :
85013100
MOQ :
12pcs linear actuator
Item name :
linear actuator, electric piston, electric actuator
Voltage of linear actuator :
12v/24v/36v/48vdc
Load of linear actuator :
1200N
Duty cycle of linear actuator :
25%
Limit switch :
Inner
Potentiometer :
Optional
Speed :
speed depend on the load
Feature of linear actuator :
mini motor, compact size
OEM :
Yes
Gear motor :
Yes
Stroke :
20-600mm
Description

Linear Actuatorsis a compact, fast speed and low cost DC actuator suitable for a variety of

markets and applications. This feature packed actuator has a very short retracted length for applications

where space is at a premium and maintenance requirements are minimal. Ideal for car brake system,

mini solar tracker, ventilation system, mini robot arm, sweeper, ect.

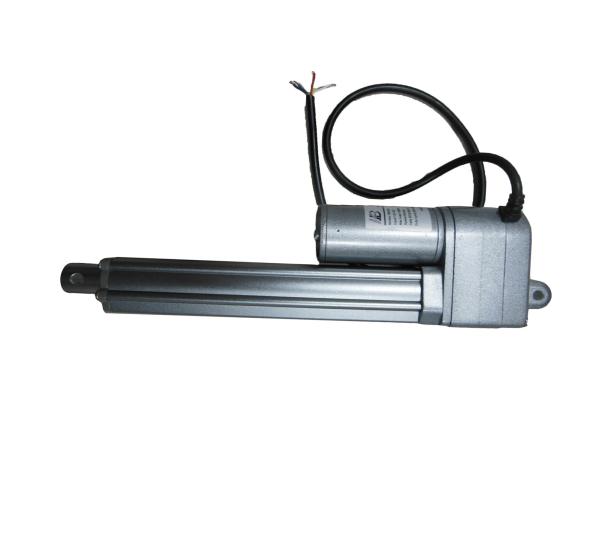

linear actuator Picture

Specification of linear actuator

China electric actuator with pot 24vdc, 300mm stroke length 1000N force, waterproof linear drive 12v dc

Input voltage

12v/24v/36v/48vdc

Load

0-1200n

Speed

5-100mm/s

IP grade

IP65

Duty cycle

25%

CE certificate

Yes

Potentiometer

Optional

Limit switch

Inner

Brake system

Yes

Temperature

-26 to 65 ℃

Retracted length

Stroke+105mm

Extended length

2 * Stroke +105mm

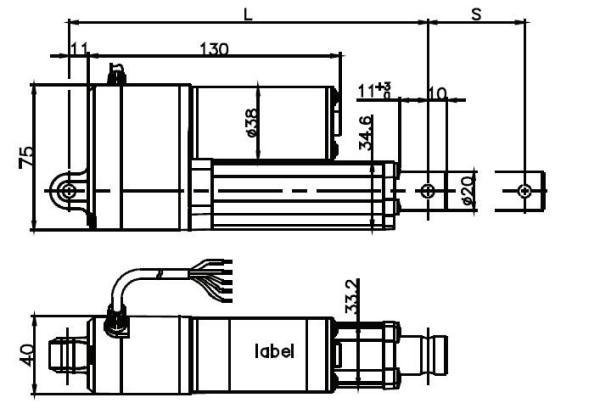

Drawing of linear actuator

China electric actuator with pot 24vdc, 300mm stroke length 1000N force, waterproof linear drive 12v dc

Installation size of linear actuator

Stroke length

Without feedback

With feedback

Retracted

Extended

Retracted

Extended

length

length

length

length

100 mm (~4″)

205 mm

305 mm

235 mm

435 mm

200 mm (~8″)

305 mm

505 mm

335 mm

535 mm

300 mm (~12″)

420 mm

720 mm

450 mm

750 mm

Load, stroke and voltage of linear actuator

China electric actuator with pot 24vdc, 300mm stroke length 1000N force, waterproof linear drive 12v dc

China electric actuator with pot 24vdc, 300mm stroke length 1000N force, waterproof linear drive 12v dc

China electric actuator with pot 24vdc, 300mm stroke length 1000N force, waterproof linear drive 12v dc

Customer service:

Any questions to be sent will get response within 24 hours.

Lead Time of linear actuator:

Linear actuator sample Lead-times: generally 7 work days.

Bulk Order Production Lead-times: 15-20 work days after getting your deposit.

Transit time of linear actuator:

For small weight or Urgent, linear actuator will be sent by Express DHL/FedEX/UPS/TNT/EMS

For max production, linear actuator will be shipped by sea/by air.

According to client’s requirements.

After-sales service of linear actuator:

All linear actuator before shipment ,products will be strictly inspection on our factory QC Process System.Just in case,

there is abnormal.Please contact us at first time,Customer Complaint handling procedure will be boot at once.

Implementation of the scheme will be come out within 48 hours.We will negotiate with customer to find a

reasonable way to resolve and compensate.

We need below info to complete the quotation.

1- voltage (v dc)

2- stroke (mm)

3- load (kg or n)

4- other special requirement

5- simple description of application

6- quantity

7- delivery address if freight prepaid
