24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system
Specifications
Place of Origin :
China
Brand Name :
OEM
Model Number :
linear actuator
Certification :
CE, ISO9001
Price :
$22-$32/pc
Packaging Details :
8pcs linear actuator per carton box
Delivery Time :
7 work days for the samples
Payment Terms :
TT, Western union, Paypal
Supply Ability :
5000pcs linear actuator
85013100 :
85013100
MOQ :
50pcs linear actuator
Voltage :
24V DC/12V DC
Load Capacity :
6000N
Protect class :
IP43
Color :
white/black
Limit Switches :
Inner
Type of duty :
10%
Type of load :
push pull
drive type :
single motor drive
OEM :
Yes
Application :
home, medical bed, industry area
Safety nut :
No
Description

Dear Clients,

Linear actuators are customized and each model has his own temper.

Just leave your required parameters to us.

We will find a way to realize your design.

Good price and quality are always available.

Looking forward to your email.

Lisa

Sales Rep.

+86 18762658863

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

Specifications of linear actuator:

Brand Name

Optional (accept OEM)

Model Number

Furniture linear actuator

Input

12v/24vDC

Max Load

6000N

Duty Cycle

10%

Speed

4~25mm/s

Stroke

25~600mm( optional)

Min Installation Dimension

S≤400mm,L=175mm+S; S>400mm,L=200mm+S

Operation Temperature

-26 to +65 centigrade

IP Class

IP43

Control Mode

Wired, Wireless

Limit Switch

Inner

Certificate

CE, ISO9001

Material

Aluminum

Covering Color

Black

Place of Origin

Jiangsu, China

Reference drawing of linear actuator

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

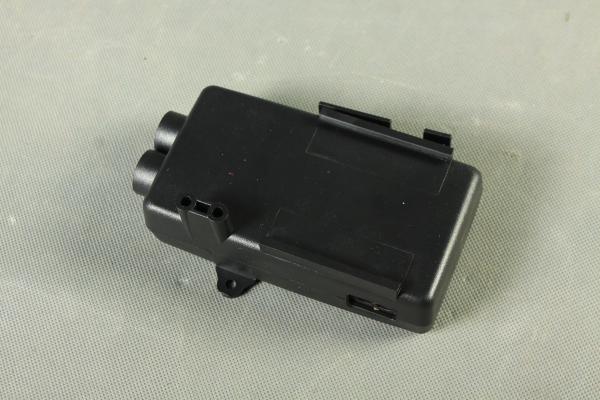

Remote Controller system

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

Load, speed and current of linear actuator

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

If you have request for the install size, pls chat with me.

How To Order Our Product Linear Actuator

1.Customers offer details of linear actuator or general drawing of the product.

2. Our engineer will make a professional drawing according to your request..

3. After your confirmation of the drawings, inform us the material and types you need.

4. We will do quote once get the confirmation of you.

5. Note: Customers can order all product samples we put, as we are custom-made product supplier, so different stroke and load are available

We need below info of linear actuator to complete the quotation.

1- voltage (v dc)

2- stroke (mm)

3- load (kg or n)

4- other special requirement

5- simple description of application

6- quantity

7- delivery address if freight prepaid

Application of linear actuator

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

Transportation

1. All available shipping ways could be applied, by courier, air or sea.

2. Appointed shipping company or our own forwarders all could be used in shipment.

3. Full-way tracking the cargos for you before the goods arrive.

24v linear motor 200mm stroke with 6000N load, IP43 track linear actuator with controller system

Trade items of product

MOQ

50Pcs

Package

PE film,foam corner, cartons

Delivery Terms

FOB, CFR, CIF, EXW, Express Delivery

Delivery Time

7 work days after confirmation

Payment Type

T/T, L/C, PayPal, Western Union

Supply Ability

5000 Pcs/Month

Port

Shanghai,Shenzhen,HK
