Specification of linear actuator HB-DJ808

808 controller box
This control box can control 1-2 heavy duty linear actuators or multiple other actuator models.
The control box comes with attached rocker switch to control the movement of an actuator.
Customize the control box to control 2 actuators simultaneously or non-simultaneously.
The control box is popular in industrial applications, hobby design and furniture.

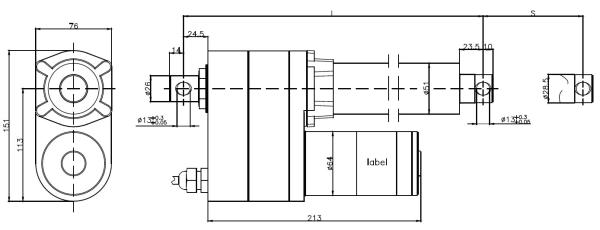

Industry linear actuator with potentiometer installation dimension

Note: A:Retracted length(min installation dimension) B:Extended length(total length)
Stroke=B-A
Industry linear actuator with potentiometer max stroke is 598mm.

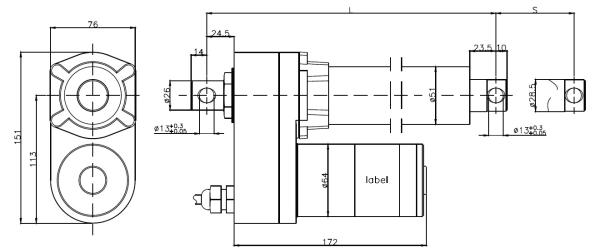

Industry linear actuator without potentiometer installation dimension

Note: A:Retracted length(min installation dimension) B:Extended length(total length)
Stroke=B-A

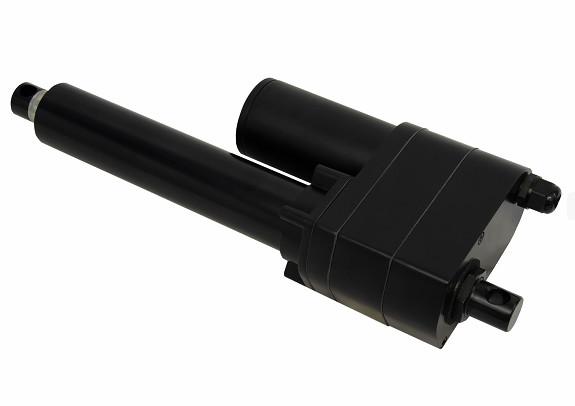

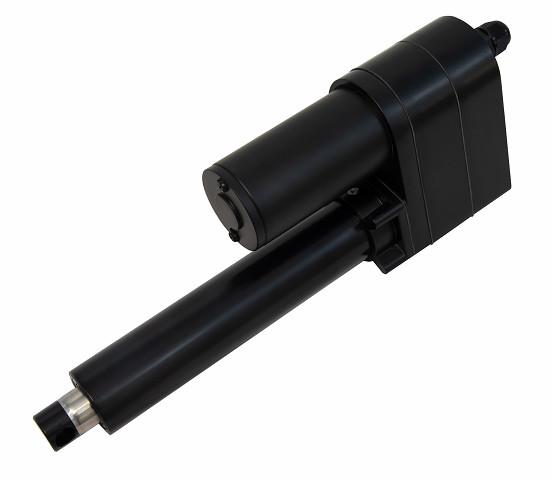

Feature ---Industry linear actuator
Waterproof appearance for outdoor use
High force for big machine use
ACME screw type
Adjustable limit switch and optional potentiometer
Different stroke can be designed
OEM service is okay
CE approval
Reference drawing (mm)--with limit switch or potentiometer

Speed, load, current of linear actuator

RFQ

How To Order Our Product Linear Actuator
1.Customers offer details of linear actuator or general drawing of the product.
2. Our engineer will make a professional drawing according to your request..
3. After your confirmation of the drawings, inform us the material and types you need.
4. We will do quote once get the confirmation of you.
5. Note: Customers can order all product samples we put, as we are custom-made product supplier, so different stroke and load are available

We need below info of linear actuator to complete the quotation.
1- voltage (v dc)
2- stroke (mm)
3- load (kg or n)
4- other special requirement
5- simple description of application
6- quantity
7- delivery address if freight prepaid
