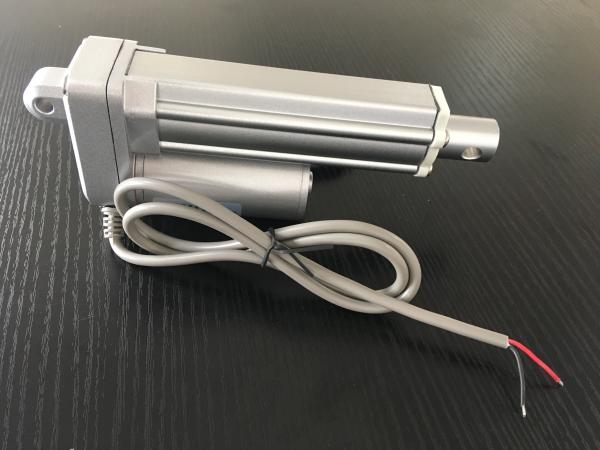

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%
mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%
Specifications
Place of Origin :
China
Brand Name :
OEM
Model Number :
Mini linear actuator
Certification :
CE, ISO9001, SGS
Price :
$27-$35/PC
Packaging Details :
12PCS LINEAR ACTUATOR PER CARTON
Delivery Time :
7-10 Work days after payment
Payment Terms :
TT, Paypal, Western union
Supply Ability :
10000pcs linear actuator per month
HS code :
85013100
MOQ :
1pc linear actuator
Voltage of linear actuator :
12v/24v/36v/48vdc
Max load of linear actuator :
1200N
Duty cycle of linear actuator :
25%
Limit switch :
Inner
Potiometer :
Optional
Stroke :
30-400mm
IP grade :
IP65
Gear motor :
Yes
Controller :
Wired/ wireless remote controller
Description

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

Specification of Linear Actuator( Mini type linear actuator)

Brand

 OEM

Type

Linear actuator

Model

MINI LINEAR ACTUATOR

Input Voltage

12/24/36/48VDC

Max Charge/Push Force

1200N

Speed

5-80mm/s

Stroke

20-305(Optional)

Limited Switch

Build-in(non-adjustable)

Operation Temperature

-26~65°C

Protective Class

IP65

Duty Cycle

25%

Min Installation Size

S+105mm(standard) S+120(S>300mm)

Life Span

>20,000 times

Material

Aluminium alloy

Cover Color

Black/Slivery White

Optional Fittings

Potentiometer

Screw type

ACME

Application

Industry

MOQ

12 PCS

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

Options:

** Potentiometer

** Cable length

** Stroke

** Ball screw

** Joint bearing head

** Bracket

** Plug connection

Mini linear actuator without potentiometer dimension for you reference

Stroke size(Inches)

Closed length(Inches)

Extended length(Inches)

2''

6.10''

8.07''

4''

8.07''

12''

6''

9.92''

16.1''

8''

12.1''

20.1''

10''

14.1''

24.1''

12''

16.73''

28.74''

Benefits at a glance of linear actuator:

1. Non- adjustable limit switches,small installation dimension

2. Splash-proof (IP65) option

3. Stainless steel resists corrosion

4. Customized versions to order

5. Special stroke lengths available on request

Drawing of linear actuator

Standard Dimension (mm)

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

Linear actuator with joint bearing drawing

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

Mini Linear Actuator Series Load±10％(N) Speed±2(mm/S) 　 　 　 　
Load 1,200 1,000 800 700 600 500 400 200 100
Speed 5 7 8 11 10 16 17 40 60
Mini Linear Actuator Series Stroke ±2(mm) Mounting dimensions±3(mm) Without Feedback
Stroke 50 100 150 200 250 300 350 400 450
Size 155 205 255 305 355 420 470 520 570
Mini Linear Actuator Series Stroke ±2(mm) Mounting dimensions±3(mm) With Potentiometer
Stroke 50 100 150 200 250 300 350 400 450
Size 185 235 285 335 385 450 500 550 600

Stroke Retracted Length Extended Length Weight
2'' 6.2'' 8.2'' 1kg
4'' 8.2'' 12.2'' 1kg
6'' 10.2'' 16.2'' 1kg
8'' 12.2'' 20.2'' 1.5kg
10'' 14.2'' 24.2'' 1.5kg
12'' 16.8'' 28.8'' 2kg
14'' 18.8'' 32.8'' 2kg
16'' 20.8'' 36.8'' 2kg
18'' 22.8'' 40.8'' 2.5kg
20'' 25.2'' 45.2'' 2.5kg

Our Engineering's series of actuators have a proven history of reliability

and dependability ina wide range of applications that include, among others:

  • Car brake system
  • Sweeper
  • Window opener
  • Agricultural equipment
  • Door opener
  • Small solar tracker
  • Generator set
  • Treadmill
  • Seaplane
  • Disabled car

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%

mini electric actuator 12v with limit switches, fast speed mini linear actuator IP65 (waterproof), duty cycle 25%
