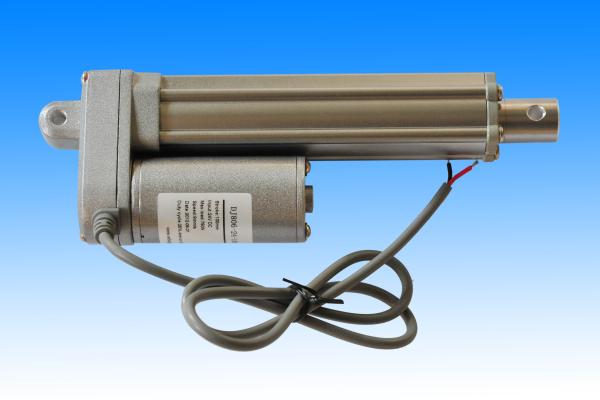

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
Specifications
Place of Origin :
China
Brand Name :
OEM
Model Number :
micro linear actuator
Certification :
CE, ISO9001
Price :
$27-$35/PC
Packaging Details :
12PCS LINEAR ACTUATOR PER CARTON
Delivery Time :
12 Work days after payment
Payment Terms :
TT, Paypal, Western union
Supply Ability :
10000pcs linear actuator per month
HS code of linear actuator :
85013100
MOQ :
100pcs linear actuator
Voltage of linear actuator :
12v/24v/36v/48vdc
Max load of linear actuator :
1200N
Duty cycle of linear actuator :
25%
Limit switch :
Inner
Potiometer :
Optional
Stroke :
30-400mm (customized length)
IP grade :
IP65
Gear motor :
Yes
Controller :
Wired/ wireless remote controller
Description

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Specification of Linear Actuator

Brand

OEM

Type

Linear actuator

Model

 Mini linear actuator

Input Voltage

12/24/36/48VDC

Max Charge/Push Force

1200N

Speed

5-60mm/s

Stroke

20-305(Optional)

Limited Switch

Build-in(non-adjustable)

Operation Temperature

-26~65°C

Protective Class

IP65

Duty Cycle

25%

Min Installation Size

S+105mm(standard) S+120(S>300mm)

Life Span

>20,000 times

Material

Aluminium alloy

Cover Color

Black/Slivery White

Optional Fittings

Potentiometer

Screw type

ACME

Application

Industry

MOQ

100 PCS

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Installation of linear actuator

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Remote control system for mini linear actuator

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Quality Attributes:

1. Corrosion resistance

2. Abrasion resistance

3. Long functional life

4. Sturdy construction

5. Precise designing

The mini linear actuator without potentiometer dimension for you reference

Stroke size(Inches)

Closed length(Inches)

Extended length(Inches)

2''

6.10''

8.07''

4''

8.07''

12''

6''

9.92''

16.1''

8''

12.1''

20.1''

10''

14.1''

24.1''

12''

16.73''

28.74''

Benefits at a glance of linear actuator:

1. Non- adjustable limit switches,small installation dimension

2. Splash-proof (IP65) option

3. Stainless steel resists corrosion

4. Customized versions to order

5. Special stroke lengths available on request

Drawing of linear actuator

Linear actuator with Pot

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Linear actuator without Pot

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Wired and wirelless remote controller & handset of linear actuator

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

Our Engineering's series of actuators have a proven history of reliability

and dependability ina wide range of applications that include, among others:

  • Car brake system
  • Sweeper
  • Window opener
  • Agricultural equipment
  • Door opener
  • Small solar tracker
  • Generator set
  • Treadmill
  • Seaplane
  • Disabled car

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drivemini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive

mini electric actuator 12v, industry micro linear actuator IP65, 1inch stroke 500N load linear drive
