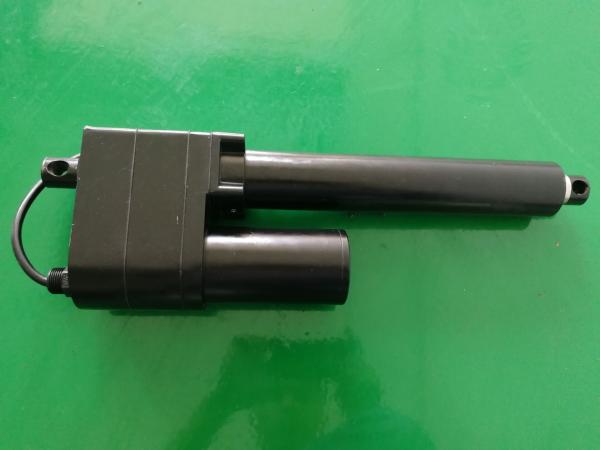

IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc
IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc
IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc
IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc
Specifications
Place of Origin :
China
Brand Name :
OEM
Model Number :
Big force linear actuator
Certification :
CE, ISO9001
Price :
$160 linear actuator/pc
Packaging Details :
2pcs linear actuator per carton
Delivery Time :
10 work days after payment
Payment Terms :
TT, Paypal, Western union
Supply Ability :
5000pcs linear actuator per month
HS code of linear actuator :
85013100
MOQ :
10pcs linear actuator
Input voltage of linear actuator :
12v/24v/36v
Max load of linear actuator :
12000N(1200KG)
Duty cycle of linear actuator :
20%
Limit switch of linear actuator :
Inner
IP class :
IP66
Optional sets :
potentometer, hall sensor
Installation size :
s (stroke)+200mm
Stroke :
50-600mm
OEM :
Yes
Electric :
Yes
Description

IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc

Specification of Linear Actuator

Brand

OEM

Model

Industria Linear Actuator

Item name

Linear Actuator

Input

12V/24V/36V/48V DC

Load Capacity

12000N

Protection class

IP66

Speed

6.5mm-60mm/s

Stroke Length

Standard stroke sizes 100~600mm Other sizes for Custom orders

Limit Switch

Build-in

Duty cycle

20%

MOQ

10Unit/Units

Packaging Details

2 units/carton

Delivery Time

Sample with in 10 working days, bulk order 15~20 working days

Payment Terms

L/C,T/T,Paypal,Westen Union

Supply Ability

5000 Unit/Units per month

Certification

CE,ISO9001

Application

Industry,Agricultural machinery,Solar tracker,Car/truck

PS:

Potentiometer is options

Industry Linear actuatoruse high strength metal and durable material, Aluminium alloy housing,

stainless steel sliding tube, carbon steel end clevis can take the place of traditional industry linear actuator,

and applies to the transmissions requirements of all kinds of extremely harsh conditions.

Features of linear actuator

  • Solid metal structure
  • With the crank of manual operation
  • Suitable for extremely harsh conditions
  • Passed salt spray and chemical detergents
  • For outdoor design
  • Operation: the sliding clutch or limit switch

Industry linear actuator installation dimension for you reference

Stroke

50

100

200

250

300

350

A

300

300

400

450

500

600

B

350

400

600

700

800

950

Note: A:Retracted length(min installation dimension) B:Extended length(total length)

Stroke=B-A

Drawing of linear actuator

IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc

Similar powerful linear actuator

IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdcIP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc

Linear actuator with limit switch/potentiometer

50≤Stroke＜400, L=S+250mm

400≤Stroke＜600, L=S+300mm

Load & Speed & Current of Powerful linear actuator

Product mode

Max load

(N)

No-load speed

(mm/s)

Full-load speed

(mm/s)

 Full-load current (A)
-12v linear actuator		 Full-load current (A)
-24v linear actuator
HB-DJ808 linear actuator 2000 35 28.5 17 8
3000 22 18 17 8
4000 17 14 17 9
5000 11 9.5 17 9
7000 5.5 4 18 9

Application of Industry linear actuator

Agricultural application

Mobile off-highway application

The ground cleaning machine and scrubber

Other industry facilities

Solar tracker

IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc

IP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdcIP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdcIP66 waterproof linear actuator for tractor, 8''10'' stroke 2200lb push/pull linear drive 12v or 24vdc

More questions about linear actuator delivery time,

payment terms, service

Payment terms

1)EXW

2) T/T. Paypal,L/C,Western Union

3)Sample order pay through Paypal or T/T,Western Union

4)Bulk order T/T 50% deposit, 50% balance before shipment or L/C at sight

5) Import duties, taxes and charges are not included in the item price or shipping charges.

These charges are the buyer's responsibility.

Delivery time & Transport

Lead Time: 7-15 days after deposit received.

Shipping Method: by courier, air or sea

Appointed shipping company or our own forwarders all could be used in shipment.

After sale service & promise

1. Warranty Term: 2 year

2. 100% percent of pass before shipping.

3. IS09001 certifications.
