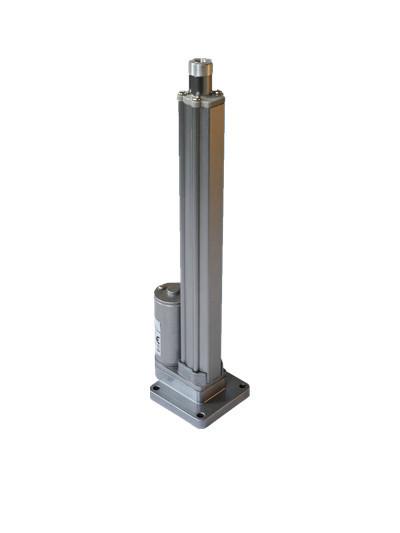

Waterproof small linear actuator 12vdc for car automative,2 12V Multi-Purpose Linear Actuator 50mm Stroke Length
Waterproof small linear actuator 12vdc for car automative,2 12V Multi-Purpose Linear Actuator 50mm Stroke Length
Waterproof small linear actuator 12vdc for car automative,2 12V Multi-Purpose Linear Actuator 50mm Stroke Length
Waterproof small linear actuator 12vdc for car automative,2 12V Multi-Purpose Linear Actuator 50mm Stroke Length
Waterproof small linear actuator 12vdc for car automative,2 12V Multi-Purpose Linear Actuator 50mm Stroke Length
Waterproof small linear actuator 12vdc for car automative,2 12V Multi-Purpose Linear Actuator 50mm Stroke Length
Specifications
Brand Name :
optional
Model Number :
MINI linear actuator
Certification :
CE
Place of Origin :
Made in China
MOQ :
50pcs linear actuator
Price :
usd$28/pc
Payment Terms :
T/T, PAYPAL
Supply Ability :
5000PCS/MONTH
Delivery Time :
7 WORK DAYS
Packaging Details :
12PCS LINEAR ACTUATOR/CTN
Motor type :
Dc Brush Gear Motor
Color :
Silver, Black
Rated Voltage :
12V/24V/36V/48V DC
Protect Feature :
ip65
Construction :
Permanent Magnet
Duty cycle of linear actuator :
25%
Limit switches :
built-in
Material of housing :
aluminium
Material of innder tube :
aluminium
Stroke of linear actuator :
customized length
Feedback :
optional
Description

No Compromise On Quality

What is Electric Linear Actuator?

Electric Linear Actuators are appliances that translate the rotational movements of direct current (DC) motors of low voltages into linear movement.

Why we choose use electric linear actuator?

It is easy to pull, push, adjust, lift or tilt objects that are hard to reach or the heavy objects. Furthermore, using electric linear actuators is beneficial because the electrical current is transmitted easily to actuators since cabling is cost effective as compared to piping. More so, electricity utilized is also cost effective and efficient. Energy is also distributed softly and modestly to the motor.

Mini linear actuator 200mm stroke with 1200n load
Waterproof small linear actuator 12vdc for car automative,2

Model mini linear actuator
Input 12v DC
Dynamic Force 1200N
Static Force 2000N
Speed 5.5mm/s
Stroke 200mm
Retracted length 305mm
Extended length 505mm
Duty Cycle 25% at 100% load
IP Rating 65
Screw Acme Screw
Clevis Ends 6.5mm diameter
Operational Temperature -40°C/65°C (-104°F/150°)
Limit Switch Built-in (factory preset)
Safety Certifications CE

Details of the mini linear actuator for your reference:

Screw Rating load
(N)		 Speed(mm/s)
no load
One-thread screw 200 44
600 10.5
Two-thread screw 100 70
500 16.5
700 11.5
800 8.5
Three-thread screw 50 80
250 25
400 17
450 13



Similar mini linear actuator for your reference:

Model linear actuator
Input Voltage 12/24/36/48VDC
Max Charge/Push Force 2000N
Speed 5-55mm/s
Stroke 30-600MM(Optional)
Limited Switch Build-in(non-adjustable)
Operation Temperature -40~65°C
Protective Class IP66
Duty Cycle 25%
Min Installation Size S+108mm(standard) S+120(S>300mm)
Life Span >20,000 times
Material Aluminum alloy
Cover Color Grey
Optional Fittings Potentiometer


Waterproof small linear actuator 12vdc for car automative,2
Stroke & Weight of linear actuator:

Stroke / MM Net Weight / KG
100 1
200 1
300 1.5
400 2
500 2.5
600 3


Controller system

Waterproof small linear actuator 12vdc for car automative,2Waterproof small linear actuator 12vdc for car automative,2Waterproof small linear actuator 12vdc for car automative,2Waterproof small linear actuator 12vdc for car automative,2

How can we operate remote controller system

Waterproof small linear actuator 12vdc for car automative,2

Installation of linear actuator:
Waterproof small linear actuator 12vdc for car automative,2

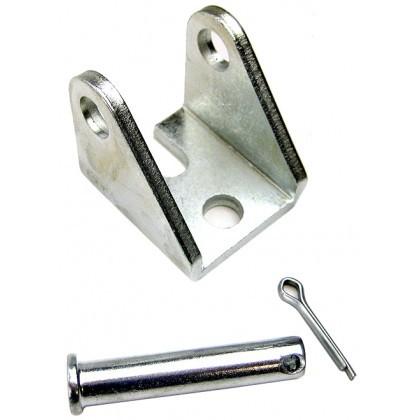

Bracket for mini linear actuator:
Waterproof small linear actuator 12vdc for car automative,2
Waterproof small linear actuator 12vdc for car automative,2
Wiring of linear actuator:
Waterproof small linear actuator 12vdc for car automative,2

Model Picture Application
waterproof linear actuator 　Waterproof small linear actuator 12vdc for car automative,2 Sweeper car
　 Lawn mover
Voltage:12V/24V/36V/48V Snow plough
Max load: 7000N AGV
Max speed: 35mm/s LED Car
Duty cycle:25% Robotic vehicles
Limit switch:Inner Forklift
IP grade: IP65 braking system
Retracted length: S+250mm Harvesting machine
Feedback: hall sensor or pot Sprayer
　 Scissor lifter
Inner tube: stainless steel Others…
Model Picture Application
High force linear actuator 　Waterproof small linear actuator 12vdc for car automative,2 Sweeper car
　 Lawn mover
Voltage:12V/24V/36V Snow plough
Max load: 12000N AGV
Max speed: 38mm/s LED Car
Duty cycle:20% Robotic vehicles
Limit switch:Inner Forklift
IP grade: IP66 braking system
Retracted length: S+200mm Harvesting machine
Feedback: hall sensor or pot Sprayer
Stroke: Customized Scissor lifter
Inner tube: stainless steel Others…

Applications of linear actuator:

We supply linear actuator worldwide for many applications including but not limited to:

  • Robotic Vehicles
  • Automatic Guidance Vehicles
  • Camper
  • Led car, arrow board trail
  • Door Openers
  • Floor Cleaning Equipment
  • Lawn Mower
  • Snow plow
  • Boat
  • Solar tracker system
  • Wheelchairs
  • Harvesting machine
  • Construction machine


Waterproof small linear actuator 12vdc for car automative,2Waterproof small linear actuator 12vdc for car automative,2Waterproof small linear actuator 12vdc for car automative,2Waterproof small linear actuator 12vdc for car automative,2
