24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
Specifications
Brand Name :
OEM
Model Number :
Big force linear actuator
Certification :
CE, IP66 test report
Place of Origin :
China
MOQ :
2pcs linear actuator
Price :
FOB Shanghai: usd$155/pc
Payment Terms :
T/T, Paypal
Supply Ability :
1000pcs linear actuator per month
Delivery Time :
depends on your request for the linear actuator
Packaging Details :
2pcs linear actuator per carton box
Type of linear actuator :
Powerful linear actuator
Type of motor :
Brush dc motor
Limit switch :
Inner
Duty cycle :
20%
IP grade :
IP66
Max load of linear actuator :
1200kg
Range of stroke :
50-1200mm
Feedback :
Hall sensor, potentiometer
Application of linear actuator :
farm tractor, construction machine, sweeper
Warranty of linear actuator :
2 years
Description

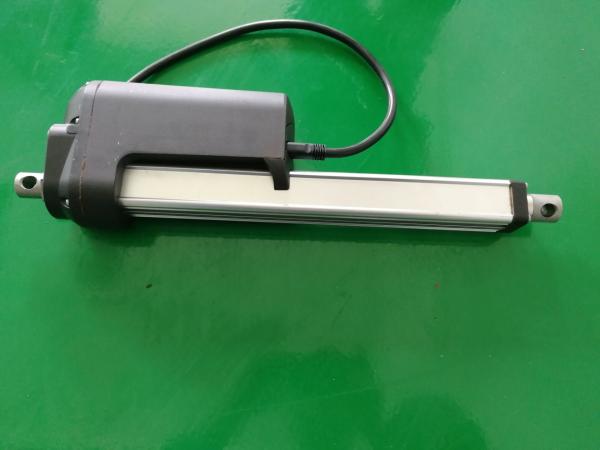

24v waterproof linear actuator with potentiometer 300mm stroke

TypeElectric linear actuator
Motor typeBrush DC motor
CableBare wire 0.4m
Voltage24VDC
Screw typeACME
Noise level≤75dB
Limit switchesIntegrated non adjustable
Stroke tolerance±3mm
Duty cycle25%
Production classIP66
FeedbackHall sensor/pot
Operating and storage temperature-40℃~+65℃
Manufacturing quality standardsISO9001:2015
CE LabelYes


Load & speed & current of linear actuator

Product modeMax load(N)Speed (mm/s)
Big force linear actuator120006.5
1000013
700017
650020
500025
320038


LINEAR ACTUATOR STROKE DATA (Big force linear actuator)

Stroke length (mm)50100150200250300400
Retracted length(mm)310300350400450550650
Extended length (mm)3604005006007008501050


More linear actuators for you choose:

ModelPictureApplication
mini linear actuator
　24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric driveSweeper car
　Lawn mover
Voltage:12V/24V/36V/48VSnow plough
Max load 1200NDog treadmill
Max speed:100mm/sLED Car
Duty cycle:25%Arrow board trail
Limit switch:InnerForklift
IP grade:IP65braking system
Noise level:60db-65db
Others…
waterproof linear actuator　24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive　
　　
Voltage:12V/24V/36VForklift
Max load 7000NAGV
Max speed:35mm/sSweeper car
Duty cycle:25%Lawn mover
Limit switch:InnerHarvesting machine
IP grade:IP65Robotic vehicles
Noise level:70db-75dbSolar tracker
　Construction machine
　
Others…
solar linear actuator　24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive　
　　
Voltage:24VSolar tracker
Max load 12000N
　
Max speed:3.3mm/s　
Duty cycle:10%　
Limit switch:Inner　
IP grade:IP66
　
micro linear actuator　24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive　
　　
Voltage:12V/24V/36V/48VApplication:
Max load 2000NSweeper car,
Max speed:15mm/sLawn mover,
Duty cycle:25%Forklift,
Limit switch:InnerDog treadmill,
IP grade:IP66Furniture,
Noise level:45dbOthers...


How to use a linear actuator for industry items:

24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive

24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
Dear customers,
I am HaoMeng, we do linear actuators for a different fields.
Kindly tell me your requirement, I am glad to recommend the
right linear actuator for your reference.
Kindly contact me or call me directly.
Phone/Wechat/WhatsApp: +86 18762658863
24v waterproof linear actuator with potentiometer 300mm stroke, IP66 linear electric drive
