Big 3 Way Line Array Subwoofer System / Passive Speaker Box , 370x1175x610mm
Big 3 Way Line Array Subwoofer System / Passive Speaker Box , 370x1175x610mm
Big 3 Way Line Array Subwoofer System / Passive Speaker Box , 370x1175x610mm
Big 3 Way Line Array Subwoofer System / Passive Speaker Box , 370x1175x610mm
Big 3 Way Line Array Subwoofer System / Passive Speaker Box , 370x1175x610mm
Big 3 Way Line Array Subwoofer System / Passive Speaker Box , 370x1175x610mm
Specifications
Brand Name :
NOVA acoustics
Model Number :
CA-2712
Certification :
CE,RoHS,SGS
Place of Origin :
Guangzhou, China
MOQ :
8pcs
Payment Terms :
T/T, Western Union
Supply Ability :
8000pcs per year
Delivery Time :
10-15 working days after receiving payment
Packaging Details :
Hard Packing Carton and Flightcase at extra cost
Type :
Dual 12 inch 3-way big Line Array speaker
Dimension :
370x1175x610mm
Frequancy Response :
45Hz to 20KHz
Components :
LF: 12"X2, MD: 6.5"X4, HF:1.75"X2
Peak power :
4400W
Cabinet :
High class birch plywood cabinet
OEM service :
Yes for customers
Flying system :
Hang system
Description

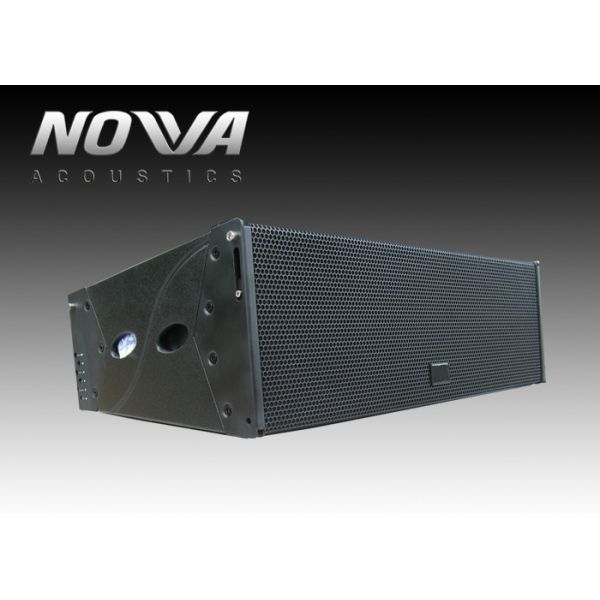

Big 3-way Line Array Sound Speaker System for Event and Concert (CA-2712)​

Quick details:

1. The line array speakers CA-2712 professional speaker box is using Germany water paint, which is environment-protected.

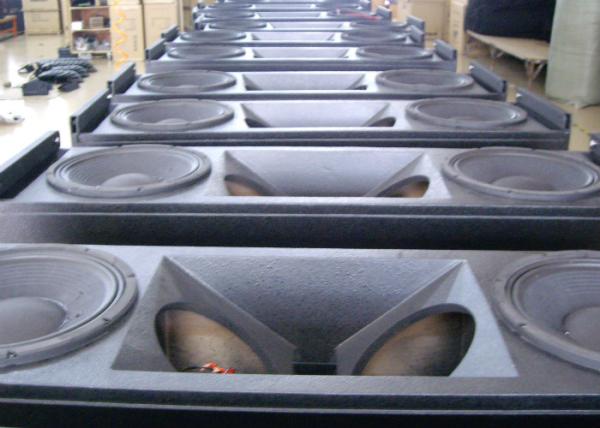

2. Every line array speakers cabinets were manufactured in-house with CNC cutting machine, which can make sure the accuracy of the sizes.

Features:

  • High output to size/weight ration. Size and output capabilities allow it to be used in the widest variety of venues.
  • 45 Hz 20 KHz frequency response

  • 2pcs 12 inch High-performance woofer with long-life, high reliability, and unsurpassed low-frequency reproduction

  • 2pcs 7 inch high quality mid woofers

  • USA paper cone for woofer and mid woofers

  • 2pcs 1.75 inch high fidelity customs-made compression driver unit

  • 4400 Watt Peak power - 1100 Watt RMS

  • 136 dB max SPL

  • Smooth frequency response, clean and clear sound

Applications:

NOVA Introduces the CA series compact line array system for large and medium sound reinforcement applications. Designed for use in football, baseball and soccer stadiums, race tracks and parking areas. theaters, houses of worship and performing arts centers, the system provides audio professionals with a lightweight, high output array that offers exceptional audio fidelity.

Specifications:

Model Number CA2712 CA-2212 CA-0010 CA008
Frequency Response 45HZ-20KHz (-10dB) 55HZ-19KHz (-10dB) 120Hz-20KHz (-10dB) 120Hz~20 KHz (3dB)
　 50Hz-19KHz ( ±3.5dB) 50Hz-18KHz ( ±3.5dB) 130Hz-19KHz (±3.5dB) 　
RMS power HF: 100W, MF: 220W, LF:800W HF: 150W, LF:800W HF:80W, LF:600W 350W
Program power HF: 200W, MF: 440W, LF:1600W HF:300W, LF:1600W HF:160W, LF:1200W 700W
Peak power HF: 300W, MF: 660W, LF:2400W HF:450W, LF2400W HF:300W, LF1800W 1050W
Norminal Impedance HF:4Ohm, MF:16Ohm ,LF:4Ohm HF:8Ohm, LF:4Ohm HF:8Ohm, LF:4Ohm 16Ohm
Sensitivity 108dB/w/m 105dB/w/m 101dB/W/M 101dB/M/W
Max SPL 136dB 134dB 120dB 126B
Component 2x12"+2X7"+2X2" 2x12"+3" 10" x2 +2" 8" x2 +2"
Coverage Angle 90° H X10°V 90° H X10°V 90°H X10°V 100°H X7°V
Dimension (370x265) x 1175 x 610mm (370x270) x 920 x 570mm (300x230)x800x445mm (245x190)x640x335mm

Quality is our culture.
With us your business in safe, your money in safe.


We can offer you:

  • Competitive advantage products
  • Factory price
  • Confidentiality agreement
  • Quality assurance contract
  • After-sales service 24*7
