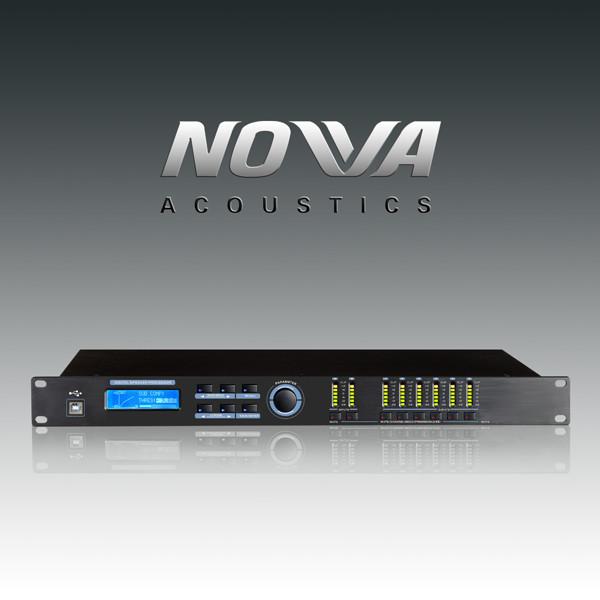

8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
8 Output Singal Processor 32 Bits Digital Speaker Management System
Specifications
Brand Name :
NOVA acoustics
Model Number :
DLP260
Certification :
CE,ROHS
Place of Origin :
Guangzhou,China
MOQ :
8pcs
Payment Terms :
T/T, Western Union
Supply Ability :
100sets/month
Delivery Time :
15 working days
Packaging Details :
Normal packing carton
Inputs :
4 channels
Outputs :
8 channels
Dynamic range :
>114 dB14 dB
Latency: :
0,625 ms
Mains voltage / power consumption: :
8.7 V / + 21 dBu
Description

DLP480 4-input/8-output Singal Processor 32 Bits Digital speaker management system for Concert and Event and Living show

Quick Detail:

  • 4 inputs and 8 outputs with free routing
  • High performance 32-bit DSP (digtial sound processor)
  • Intuitive handling at the front-panel and via PC software
  • EQ station with delay and dynamics processing

  • Low latency

Description:

NOVA digital speaker management systems are reknowned for outstanding sound quality and reliable equipment that satisfies the demands of professional users and fixed installations. Due to NOVAs advanced technologies in DSPs and AD/DA converters, the controllers offer sound in high definition quality with absolutely brilliant technical specifications. The products are developed to control even complex and large-scaled loudspeaker systems and can be used for any fixed or mobile application, from stadiums, arenas, concert halls, churches, recording studios, casinos, nightclubs to theatres.


Specification:

DLP480 Speaker controler Specification
Inputs: 4 (analog)
Outputs: 8 (analog)
Frequency crossovers: 6 dB/Oct., 12 dB/Oct., 18 dB/Oct., 24 dB/Oct., 48 dB/Oct. (slope),
　 Linkwitz-Riley, Butterworth und Bessel
Filters: 36 parametric EQs, 36 shelving EQs (high shelf or low shelf),
　 4 low cut filters, 4 high cut filters, 4 limiters
Delay: 2 master delays (0 ms - 987 ms)
　 6 channel delays (0 ms - 984 ms)
Converting & processing: Burr Brown© AD/DA converters, 96 kHz sampling rate (internal),
　 32-Bit processor (DSP), 128-times over sampling,
Input connectors: 2 x Neutrik© XLR female, electronically balanced
Input voltage: 1.55 V / + 6 dBu (nominal)
Max. input voltage: 24.5 V / + 30 dBu
Input impedance: 20 kohms
Common mode rejection: > 70 dB / 1 kHz
Output connectors: 6 x Neutrik© XLR male, electronically balanced
Output voltage: 1.55 V / + 6 dBu (nominal)
Max. output voltage: 8.7 V / + 21 dBu
Output impedance: > 100 ohms
Minimum load impedance: 600 ohms
Frequency response: 20 Hz - 20 kHz (-0.5 dB)
S/N ratio: 112 dB (typical)
Distortion: < 0.01%
Display: 2 x 20 character LCD display with LED background lighting
Mains voltage / power consumption: 90 - 250 V (AC) @ 50 - 60 Hz / 20 W
Latency: 0,625 ms
Maximum power consumption: 20 W
Dimensions unit (mm) W x H x D:

483mm x 210mm x 45mm
Weight (net / gross): 3.5 kg / 5 kg

Competitive Advantage:

Easy operation, high stability, good sound quality, fixed with good electronic components.

8 Output Singal Processor 32 Bits Digital Speaker Management System

8 Output Singal Processor 32 Bits Digital Speaker Management System

8 Output Singal Processor 32 Bits Digital Speaker Management System
