Easson High Accuracy Digital Optical Inspection System Profile Projector

Product Description

EP series Optical Profile Projector

Optical Profile projector EP series is precision and effective measuring machine in screw, Mechanic, Metal, Electronic etc.

EP series high precision optical profile projector provides accurate 2D measurement for all common geometric features such as circle, line angle and etc. All measured results can be printed out for further data processing.

Easson Digital Optical mechanical optical comparator metrology

EP series optical profile projector is designed for all critical dimensions measurement in mould & die making, form tool making, screw manufacturing, gear manufacturing and etc.

Easson Digital Optical mechanical optical comparator metrology

ES-12P projector LCD digital readout system is specially designed for 2D measuring, which can be used on profile projector, 2D measuring machines or microscopes etc..It built in Linear and non-linear compensation, 3 points circle measurement, 2points distance measurement, 2 points from a line measurement, 4 points line intersection measurement and point-line perpendicular projection etc. function.

Easson Digital Optical mechanical optical comparator metrology

Robust friction transmission system

To avoid the usual backlash problem of normal lead screw transmission system, rod base friction transmission system are used in the XY movements. This solution provides excellently smooth, sensitive and backlash free positioning that assure easy and precise measurements.

Easson Digital Optical mechanical optical comparator metrology

High precision linear guideway

high precision linear guideways are used in all X, Y and Z axis movements. This design provides very high straghtness movements and consequently, high measurement accuracy.

Easson Digital Optical mechanical optical comparator metrology

High stability machine casting

To avoid deformation caused by the internal stress of the metal casting, in addition to the usual internal stress release process ( by tempering ), all EP-1 casting are further stress released by a computer controlled vibration stress release. This process assure high dimensional stability and long lasting measuring accuracy.

EP-1 Profile projector Accessories

Easson Digital Optical mechanical optical comparator metrologyEasson Digital Optical mechanical optical comparator metrologyEasson Digital Optical mechanical optical comparator metrology

Technical Specifications

Model EP-1510 EP-2010 EP-2515
Table dimension 300x170mm 350x170mm 420x250mm
Glass dimension 175x127mm 225x120mm 290x190mm
X Axis travel 150mm 200mm 250mm
Y Axis travel 100mm 100mm 150mm
Z Axis travel(Focusing) 90mm
X, Y axis display resolution 0.001mm
Accuracy (3+L/100)um
Angular measurement 0 ~ 360°
Angular resolution 0.01°
Contour distortion 0.08%
Screen diamater 315 mm 415 mm
lens magnification 10X, 20X, 50X,one choice
Digital readout ES - 12B

Packing List

Lines Description Qty Notes
1 Machine body 1
2 10X, 20X or 50 Objective Lens 1 Standard objective lens can only choose one magnification
3 Transportation Handle 4
4 Levering Foot 4
5 Counter 1
6 Counter supports 1
7 Micro printer 1
8 Projector Cables 1
9 User Manual, quality certificate, projector list 1
10 Spare Lamp 2 Osram

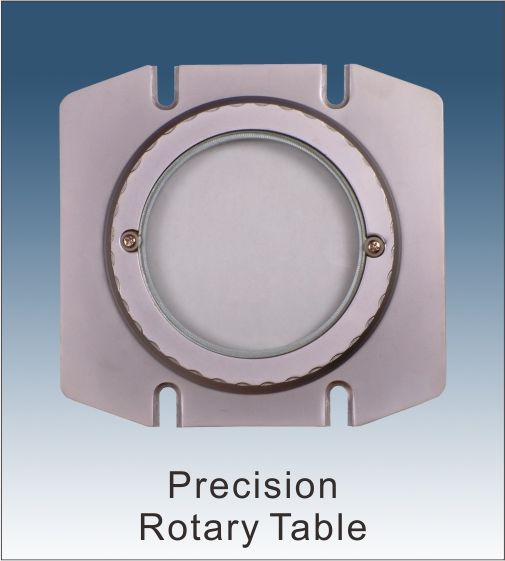

11 Rotary Table and 4 screws 1
12 concentric circle Films 1
13 Tool box 1
14 Machine cover 1
15 VA14 linear scale 2
16 Filtering 8

Easson Digital Optical mechanical optical comparator metrology

Easson Digital Optical mechanical optical comparator metrology
