High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified
Specifications
Brand Name :
Lingyao
Model Number :
LYAPFL
Certification :
CE, ISO, GMP
Place of Origin :
China
MOQ :
1 unit
Price :
USD 150,000-350,000 per unit
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1 unit per month
Delivery Time :
120 work days
Packaging Details :
carton, wood carton, pallets
Filling Mode :
Automatic
Scalability & Flexibility :
1-10ml
Bottle Materials :
Glass Ampoule Bottles
Number of Filling Heads :
4-12
Output(1-2ml) :
16000-40000pcs/h
Clarity :
＞99%
Breakage rate :
≤1%(whole line)
Total power :
around 72kw 380V 50HZ
Uses :
Injectables, liquid solutions
Certifications :
CE
Machine Name :
Vial Filling Line
Function :
Vials Washing, Sterilization, Filling, Plugging, Capping
Filling Volume :
2-30ml
Filling Liquid Type :
Vaccine
Output Capacity :
6000-26000 BPH
Vials Material :
Glass
Filling Accuracy :
+/-0.5%
Breakage Rate :
<0.5%
Nitrigon Filling :
Yes
CIP/SIP :
Yes
Oven Cooling Style :
Water Cooling
Plugging Style :
Half
Capping Head :
Multi
LAF :
Yes
Description

High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified

Revolutionize Your Pharmaceutical Production with the Next-Gen Ampoule Filling Line
The High-Speed Precision Ampoule Filling Line redefines efficiency and adaptability in sterile liquid packaging. Designed for 100-500ml ampoules, this fully automated system integrates cutting-edge technology to meet the rigorous demands of modern pharmaceutical manufacturing.

Why Choose This Ampoule Filling Line?
✅ Multi-Format Compatibility: Seamlessly switch between ampoule sizes (1ml, 2ml, 3ml) without manual adjustments—ideal for diversified production needs like vaccines, biologics, and injectable antibiotics.
✅ Ultra-High Precision: Advanced ceramic piston pumps ensure ±0.5% dosing accuracy, minimizing product waste and ensuring compliance with pharmacopeial standards.
✅ cGMP & FDA Compliance: Built with 316L stainless steel contact surfaces and ISO 5-grade air purification, guaranteeing sterility for sensitive formulations like insulin and monoclonal antibodies.
✅ Energy-Efficient Design: Operates at low power with servo-driven mechanisms, reducing energy costs by 30% compared to traditional systems.

Machine Spec:

technical parameters
　
product model LYQCL120+LYASMR
620/43+LYAGF12
size range 1-10ml national standard ampoules
Output(1-2ml) 16000-28000pcs/h
Output(5-10ml) 12000-16000pcs/h
Clarity ＞99%
Breakage rate ≤1%(whole line)
Filling Precision ±0.5-2%(according to pharmacopoeia standard)
Water Consumption and Pressure 0.2-0.4Mpa / 0.6-1.0m³/h
Cleaning CA Consumption and Pressure 0.3-0.6Mpa / 35-80m³/h 0.3-1.0Mpa / 35-80m³/h
Sealed gas Gas(liquefied gas)+oxygen, oxyhydrogen generation gas, natural gas
Oxygen consumption 0.2-0.3Mpa,1.2-1.5m³/h
Gas consumption 0.1-0.3Mpa,1.5-2.5m³/h
Exhaust volume 3500-4100m³/h
Net weight 7800(kg)
Total power around 72kw 380V 50HZ
Outline size around 9940x2260x2445mm

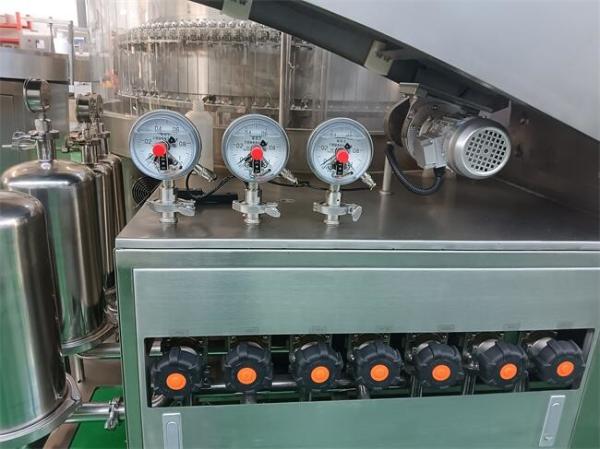

High Speed Precision Ampoule Filling Line pictures:

High Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP CertifiedHigh Speed Precision Ampoule Filling Line with Multi Format Compatibility 1-10ml Sterile Liquid Packaging, cGMP Certified

Standout Features

  • Smart IoT Integration: Real-time monitoring via touchscreen PLC and remote diagnostics for predictive maintenance.
  • Zero Cross-Contamination: Patented "no-touch" filling nozzles and automatic CIP/SIP functions.
  • High Output: Achieves 24,000 ampoules/hour, perfect for large-scale vaccine or IV fluid production.

Applications
From heat-sensitive biologics requiring cold-fill capabilities to high-viscosity suspensions, this ampoule filling line adapts effortlessly. Its modular design also supports future upgrades like lyophilization integration.

Global Trust, Local Support
Backed by a 5-year warranty and 24/7 technical support from engineers trained in EU and WHO standards.

Boost your production agility while slashing operational costs—request a live demo today to see how our ampoule filling line elevates your sterile packaging workflow!
