High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance
Specifications
Model Number :
LYAPGF-1
Certification :
CE, ISO, GMP
Place of Origin :
China
MOQ :
1 unit
Price :
USD 150,000-350,000 per unit
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1 unit per month
Delivery Time :
120 work days
Packaging Details :
carton, wood carton, pallets
Filling Mode :
Automatic
Applications :
Filling for Vitamin C Injections
Scalability & Flexibility :
1-20ml
Bottle Materials :
Glass Ampoule Bottles
Output(1-2ml) :
8,000-30,000pcs/h
Number of Filling Heads :
6-12
Clarity :
＞99%
Breakage rate :
≤1%(whole line)
Total power :
around 72kw 380V 50HZ
Certifications :
CE, GMP
Machine Name :
Vial Filling Line
Function :
Vials Washing, Sterilization, Filling, Plugging, Capping
Filling Volume :
2-30ml
Filling Liquid Type :
Vaccine
Output Capacity :
6000-26000 BPH
Vials Material :
Glass
Filling Accuracy :
+/-0.5%
Breakage Rate :
<0.5%
Nitrigon Filling :
Yes
CIP/SIP :
Yes
Oven Cooling Style :
Water Cooling
Plugging Style :
Half
Capping Head :
Multi
LAF :
Yes
Description

High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance

Revolutionize Your Pharmaceutical Production with Our Advanced Ampoule Filling Line
Designed specifically for Vitamin C injections and other critical parenteral solutions, our ampoule filling line combines cutting-edge technology with unmatched precision. Here’s why it stands out in the global market:

  1. Ultra-High Precision (±0.5% Accuracy)
    Equipped with servo-driven ceramic piston pumps, this ampoule filling line ensures exact dosing consistency for sensitive formulations like Vitamin C, which demands strict pH stability and oxidation prevention.

  2. GMP-Certified Sterility Assurance
    Built with 316L stainless steel and ISO Class 5 cleanroom compatibility, the line guarantees contamination-free production—ideal for heat-labile biologics and vaccines.

  3. Flexible Production for Multiple Formats
    Adapt seamlessly to 1-20ml ampoules with quick-change tooling, supporting both liquid and viscous formulations (e.g., antibiotics, adrenaline injections).

  4. Smart Control & Energy Efficiency

    • Touchscreen HMI and PLC automation enable real-time monitoring of filling volume, temperature, and line speed.
    • Energy-saving servo motors reduce power consumption by 30% compared to traditional systems.

  5. End-to-End Integration
    From ampoule washing to laser sealing, the line integrates seamlessly with upstream/downstream equipment (e.g., sterilization tunnels, visual inspection systems), minimizing downtime and maximizing throughput.

Machine Spec:

technical parameters
　
product model LYQCL120+LYASMR
620/43+LYAGF12
size range 1-10ml national standard ampoules
Output(1-2ml) 12000-30000pcs/h
Output(5-10ml) 8000-12000pcs/h
Clarity ＞99%
Breakage rate ≤1%(whole line)
Filling Precision ±0.5%(according to pharmacopoeia standard)
Water Consumption and Pressure 0.2-0.4Mpa / 0.6-1.0m³/h
Cleaning CA Consumption and Pressure 0.3-0.6Mpa / 35-80m³/h 0.3-1.0Mpa / 35-80m³/h
Sealed gas Gas(liquefied gas)+oxygen, oxyhydrogen generation gas, natural gas
Oxygen consumption 0.2-0.3Mpa,1.2-1.5m³/h
Gas consumption 0.1-0.3Mpa,1.5-2.5m³/h
Exhaust volume 3500-4100m³/h
Net weight 7800(kg)
Total power around 72kw 380V 50HZ
Outline size around 9940x2260x2445mm

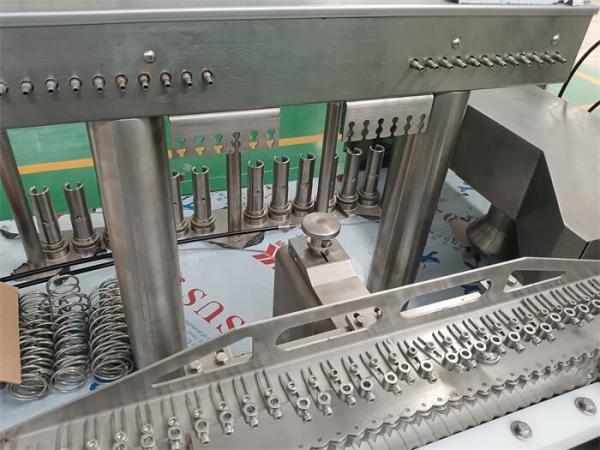

High Speed Ampoule Filling Line For Monoclonal Antibodies pictures:

High Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP ComplianceHigh Speed Ampoule Filling Line For Vitamin C Injections With High Accuracy And GMP Compliance

Why Choose This Ampoule Filling Line?

  • Speed: Achieve 24,000 ampoules/hour, perfect for high-demand markets like Middle Eastern vitamin supplements and emergency medications.
  • Compliance: Meets FDA 21 CFR Part 11 and EU Annex 1 standards for data integrity and traceability.
  • Scalability: Modular design supports future upgrades for lyophilized products or nitrogen purging.

Ideal for: Pharmaceutical manufacturers targeting vitamin therapies, emergency injectables, or biotech innovations. Elevate your production with a line that blends speed, precision, and regulatory excellence.
