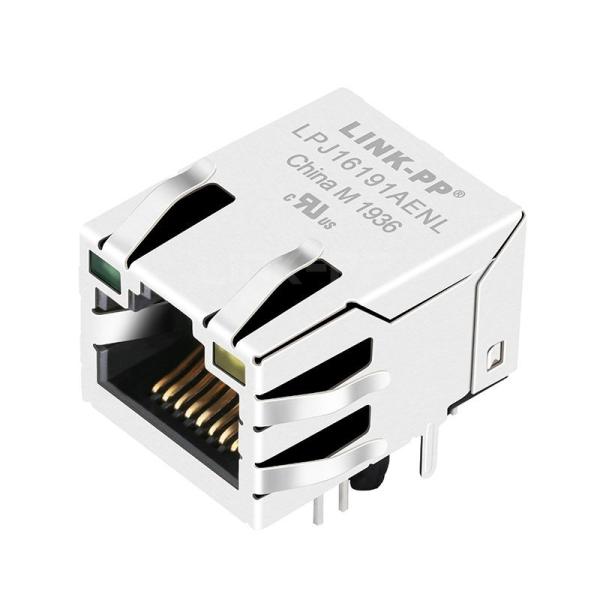

YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magjack Ethernet Connector
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ16191AENL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
YDS
Competitor P/N :
46F-12023GYD2NL
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Green / Yellow
Shield EMI Tabs :
YES
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Reviews :
65
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

YDS 46F-12023GYD2NL Compatible LINK-PP LPJ16191AENL 10/100 Base-T Magjack Ethernet Connector for Smart Meters and Satellite (Single Port, Tab Up, Green/Yellow Led)


The LPJ16191AENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.


LINK-PP Part Number:
 LPJ16191AENL
 YDS Part Number 46F-12023GYD2NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.628/15.95Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
