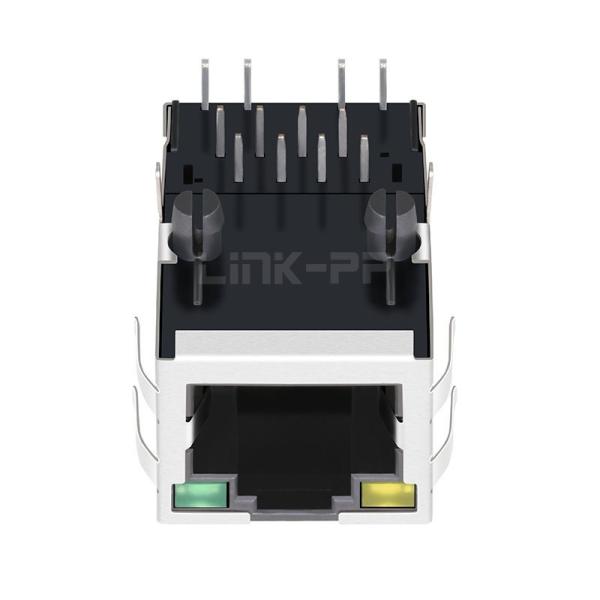

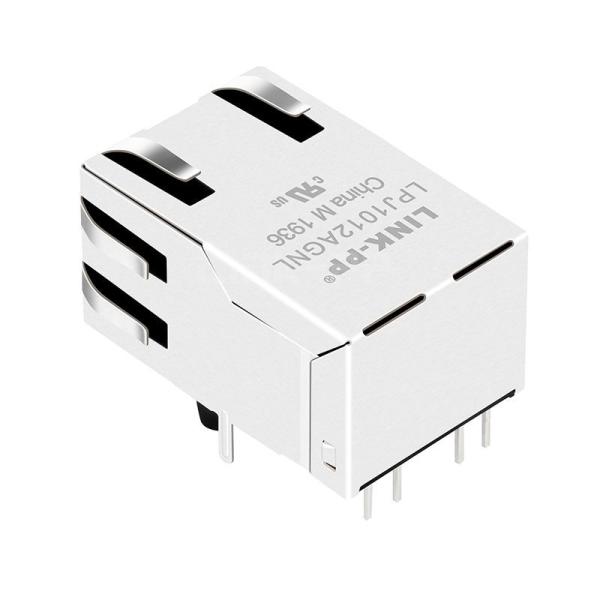

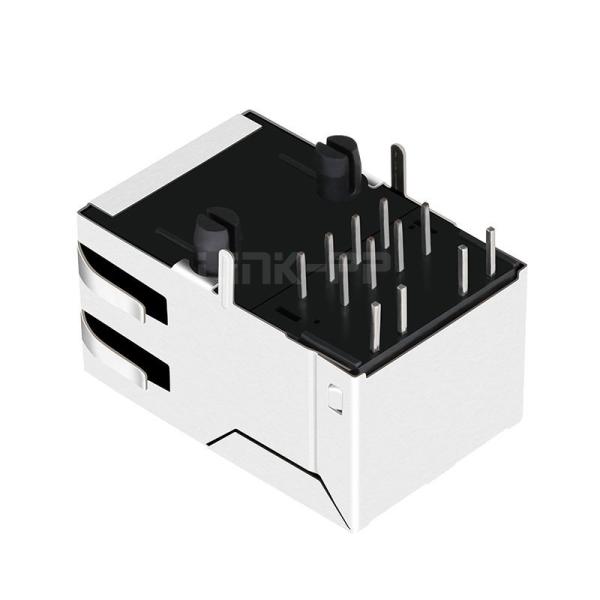

YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Tab Up Yellow/Green Led 1x1 Port Female RJ 45 Jack
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ1012AGNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
YDS
Competitor P/N :
47F-1206-YGD2NL
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Yellow / Green
Shield EMI Tabs :
YES
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Reviews :
88
N.W/pcs :
0.009kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1000pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

YDS 47F-1206-YGD2NL Compatible LINK-PP LPJ1012AGNL 10/100 Base-T Female RJ 45 Jack for Smart Camera and Game Controller (1x1 Port, Tab Up, Yellow/Green Led)


The LPJ1012AGNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.


LINK-PP Part Number:
 LPJ1012AGNL YDS Part Number 47F-1206-YGD2NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1/25.40

Package Width (Inches)
0.640/16.25Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
