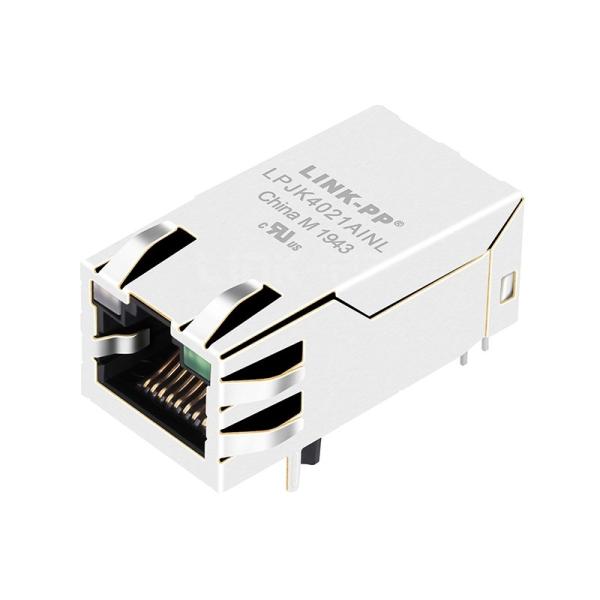

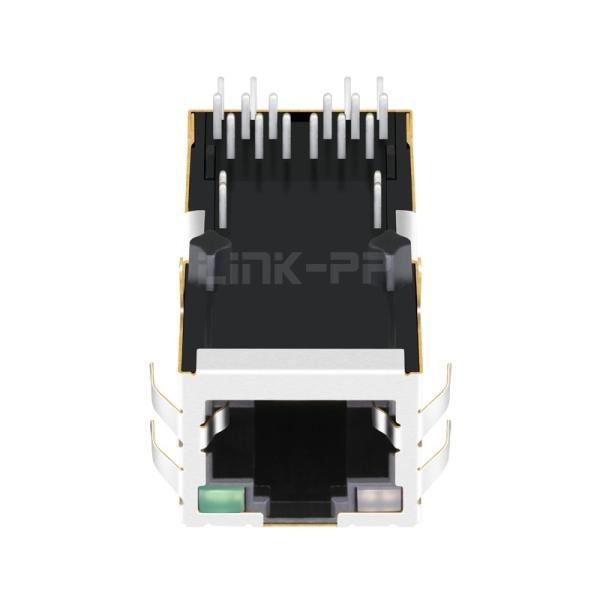

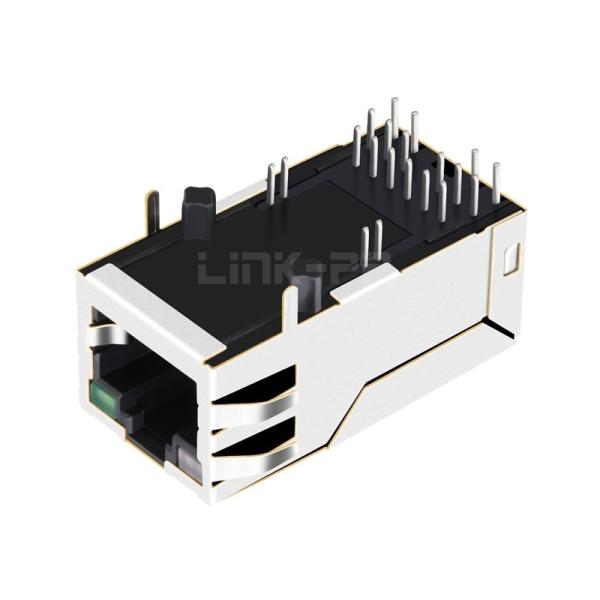

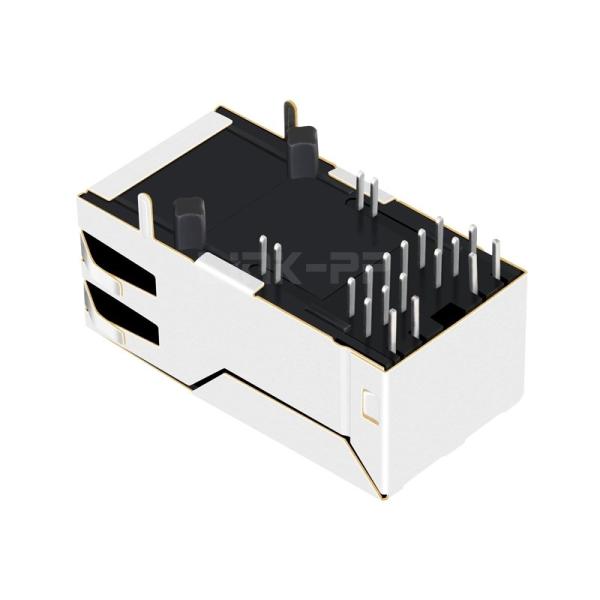

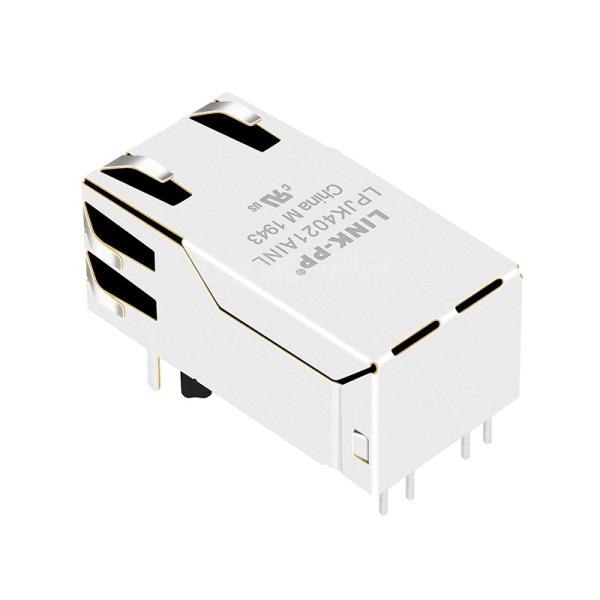

LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
LPJK4021AINL 10/100 Base-T Tab Up Yellow&Green/Green Led Single Port Ethernet Lan RJ45 Connector
Specifications
Brand Name :
LINK-PP
Model Number :
LPJK4021AINL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJK4021AINL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Yellow&Green / Green
Shield EMI Tabs :
YES
Temperature :
-40℃ to +85℃
Application - LAN :
ETHERNET (NON PoE)
Reviews :
64
N.W/pcs :
0.009kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1000pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

LINK-PP LPJK4021AINL 10/100 Base-T Ethernet Lan RJ45 Connector for Industrial PC and Fieldbus System (Single Port, Tab Up, Yellow&Green/Green Led)


The LPJK4021AINL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJK4021AINL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow&Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.654/16.60Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
