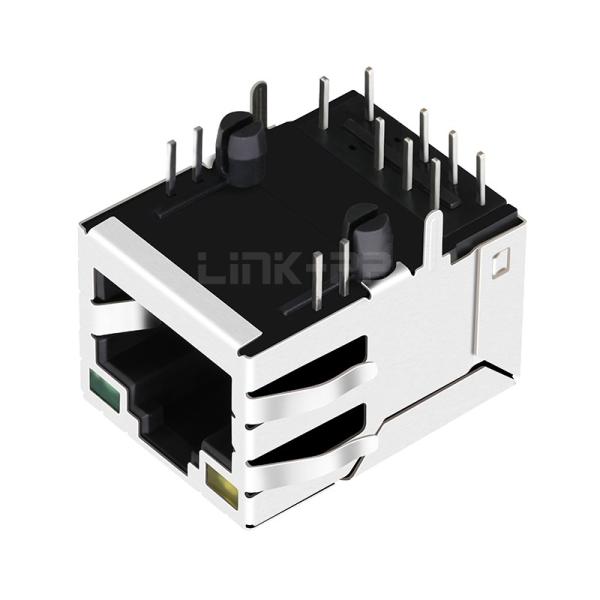

LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ16698A10NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ16698A10NL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Yellow / Green
Shield EMI Tabs :
YES
Temperature :
-40℃ to +85℃
Application - LAN :
PoE
Diodes :
Rectifier Diode
Reviews :
99
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

LINK-PP LPJ16698A10NL 10/100 Base-T POE Ethernet Connector RJ45 Modules for Industrial PC and Fieldbus System (POE, Single Port, Tab Up, Yellow/Green Led)


The LPJ16698A10NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJ16698A10NL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches)
0.628/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
Rectifier DiodeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
