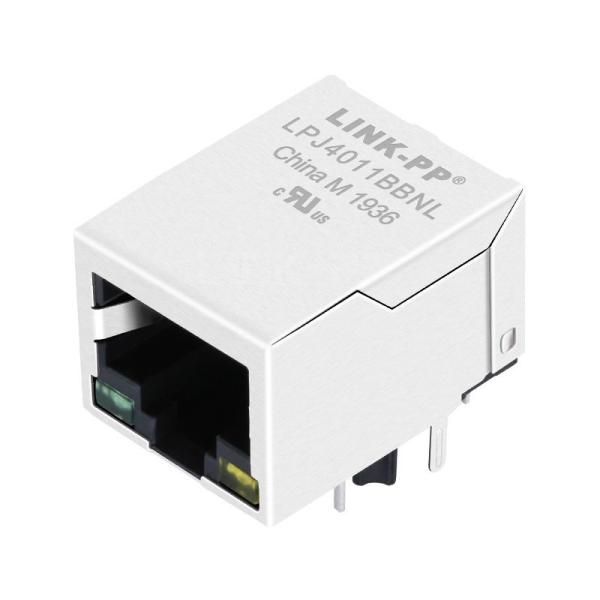

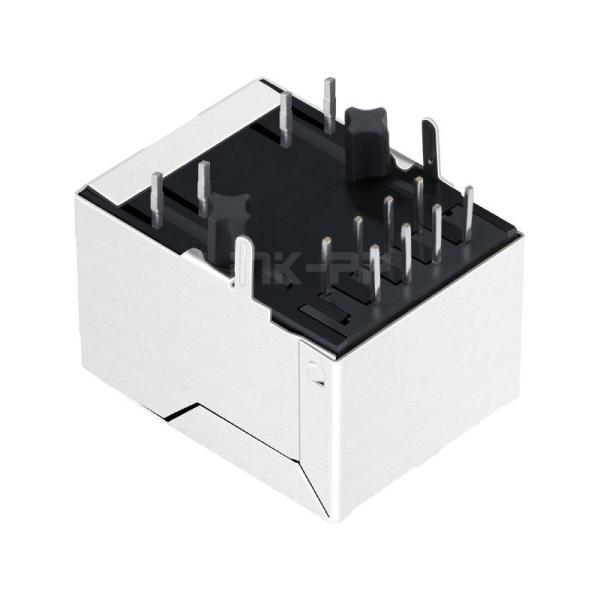

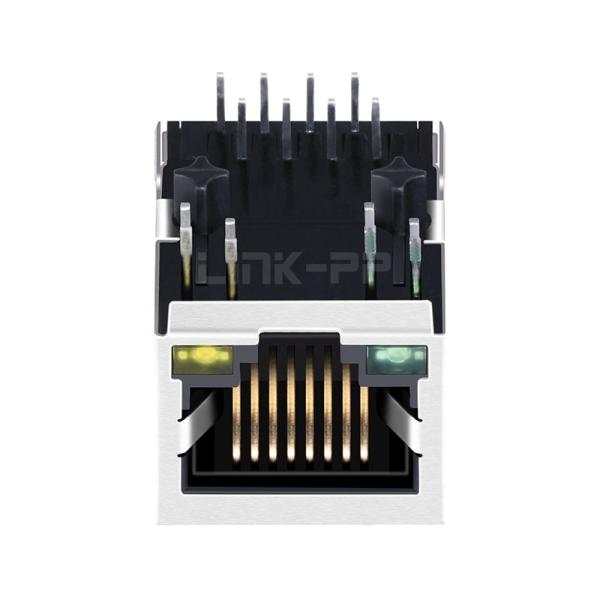

LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
LPJ4011BBNL 10/100 Base-T RJ45 with Transformer Magnetics Jack Tab Down Green/Yellow LED
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ4011BBNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ4011BBNL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Green / Yellow
Shield EMI Tabs :
NO
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Questions :
1
Reviews :
20
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

LINK-PP LPJ4011BBNL Single Port RJ45 with Transformer Jack with 10/100 Base-T Integrated Magnetics, Green/Yellow LED, Tab Down, RoHS

LINK-PP Part Number:
 LPJ4011BBNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.836/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
