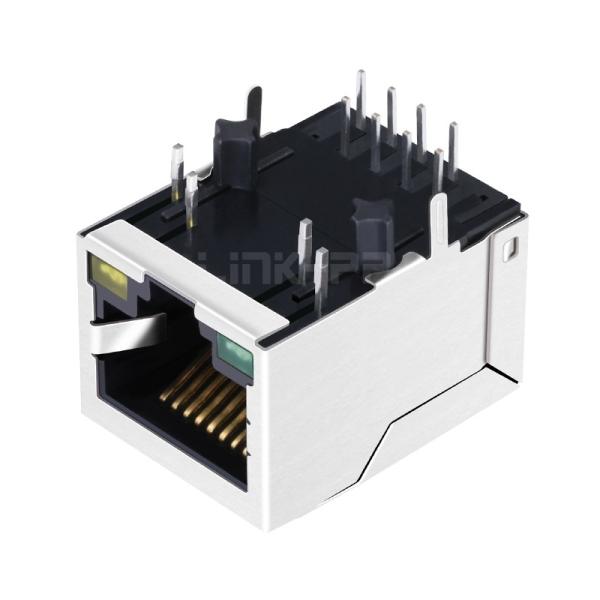

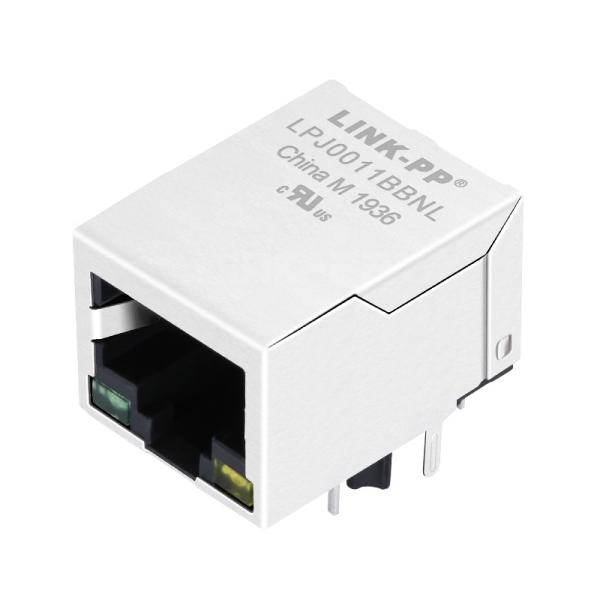

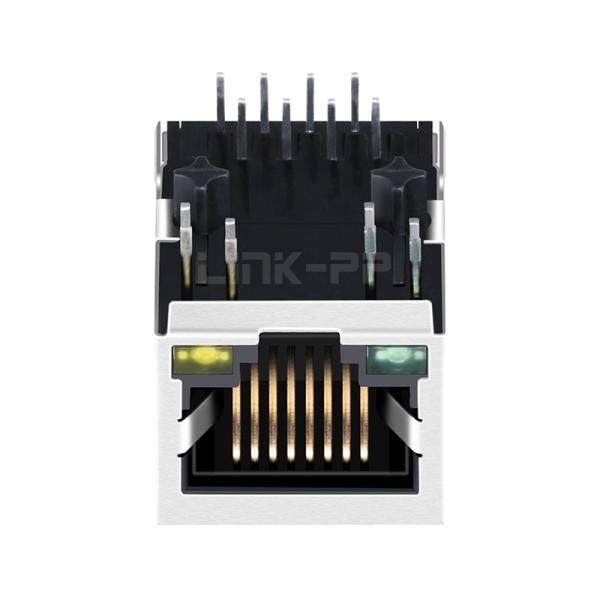

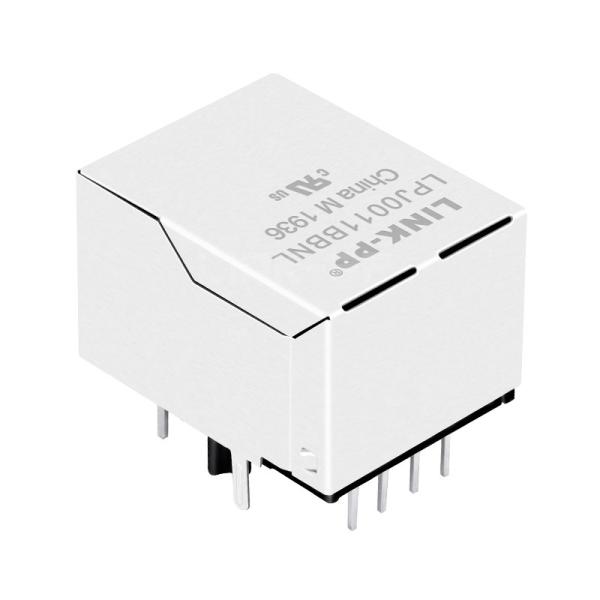

Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T Industrial RJ45 Mag Jack Single Port Tab Down Green/Yellow Led
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ0011BBNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Bothhand
Competitor P/N :
LU1S041F-43LF
Questions :
1
Reviews :
87
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
8.5kg
Description

Bothhand LU1S041F-43LF Compatible LINK-PP LPJ0011BBNL 10/100 Base-T 8P8C Cat5e Industrial RJ45 Mag Jack for Smart Meters and Satellite (Single Port, Tab Down, Green/Yellow Led)


The LPJ0011BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Solar Inverter, Automation and Video Recorder.


LINK-PP Part Number:
 LPJ0011BBNL Bothhand Part Number LU1S041F-43LF
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
