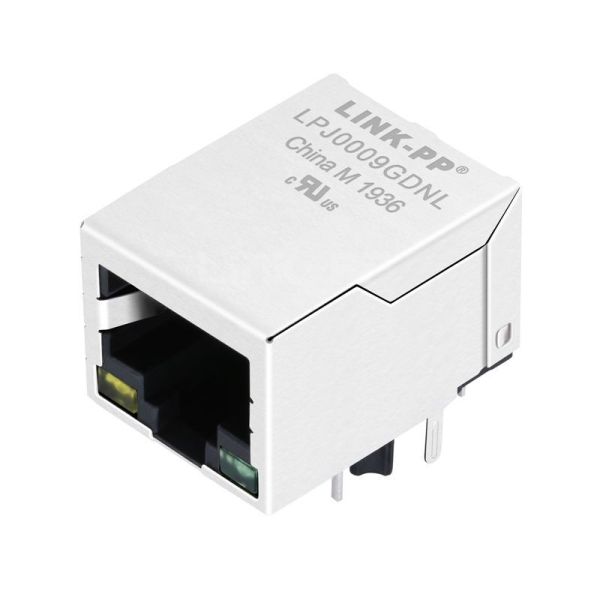

LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
LPJ0009GDNL 10/100 Base-T 1x1 Port RJ45 Magnetics Ethernet Connector With PoE Rectifier Bridge Yellow/Green LED Tab Down
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ0009GDNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ0009GDNL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Yellow / Green
Shield EMI Tabs :
NO
Temperature :
0℃ to 70℃
Application - LAN :
PoE
Diodes :
Rectifier Diode
Reviews :
120
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
8.5kg
Description

LINK-PP LPJ0009GDNL 10/100 Base-T Rectifier Bridge RJ45 Magnetics Connector for Monitoring System and Smart Meters (Rectifier Bridge, POE, 1x1 Port, Tab Down, Green/Yellow Led)


The LPJ0009GDNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Smart Meters.


LINK-PP Part Number:
 LPJ0009GDNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
Rectifier Bridge
Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
