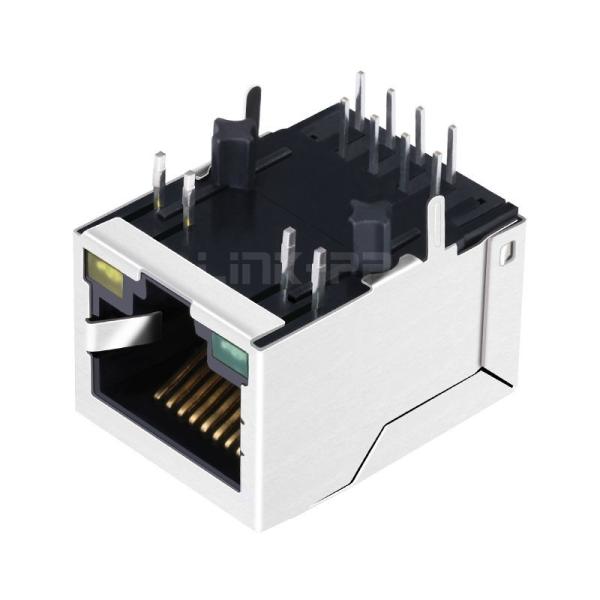

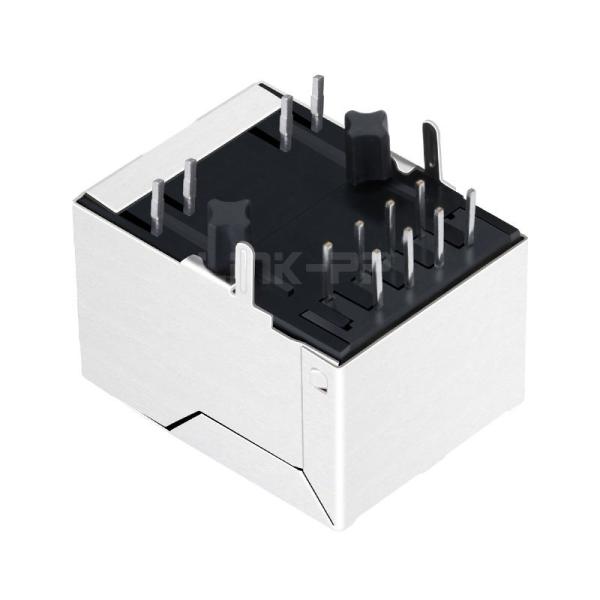

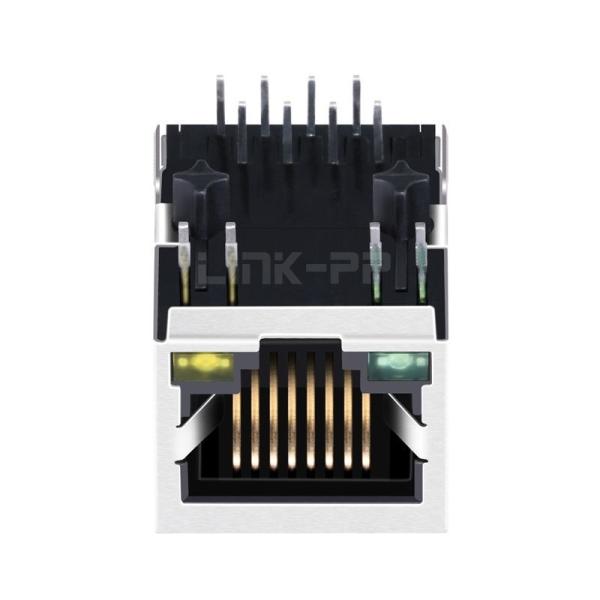

Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Tab Down Green/Yellow Led Single Port Ethernet RJ45 Isolation Modules
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ0013FBNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Hanrun
Competitor P/N :
HR911129A
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Green / Yellow
Shield EMI Tabs :
NO
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
8.5kg
Description

Hanrun HR911129A Compatible LINK-PP LPJ0013FBNL 10/100 Base-T Ethernet RJ45 Isolation Modules for Hard Disk Players and Network Card (Single Port, Tab Down, Green/Yellow Led)


The LPJ0013FBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Industrial PC, VoIP Gateways and Internet Of things Gateways.


LINK-PP Part Number:
 LPJ0013FBNL Hanrun Part Number HR911129A
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
