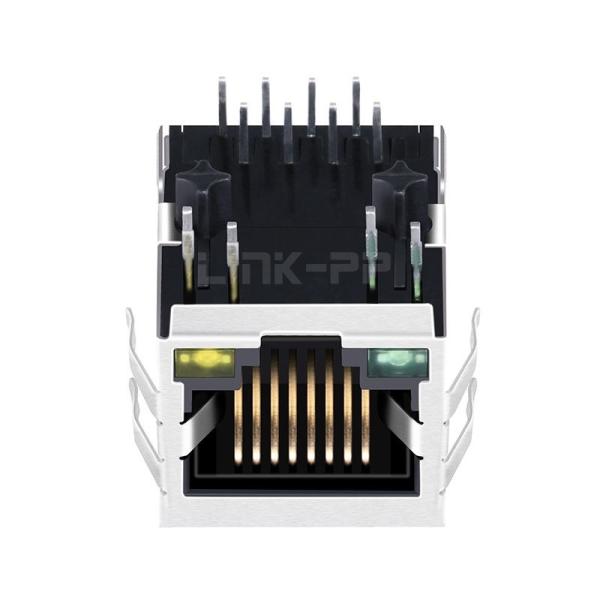

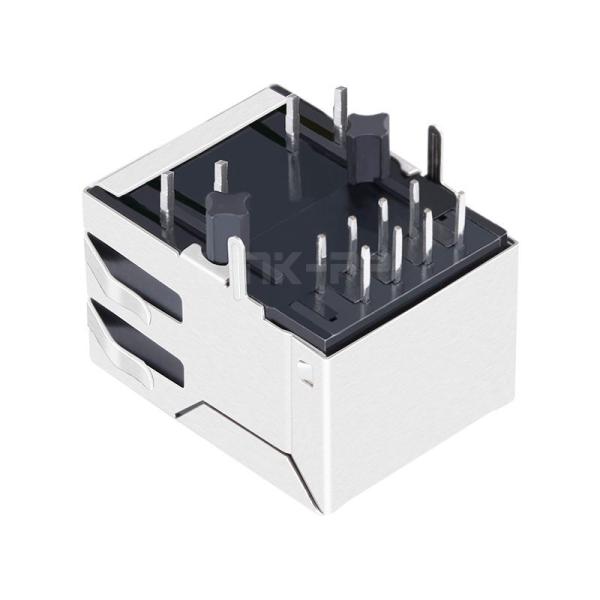

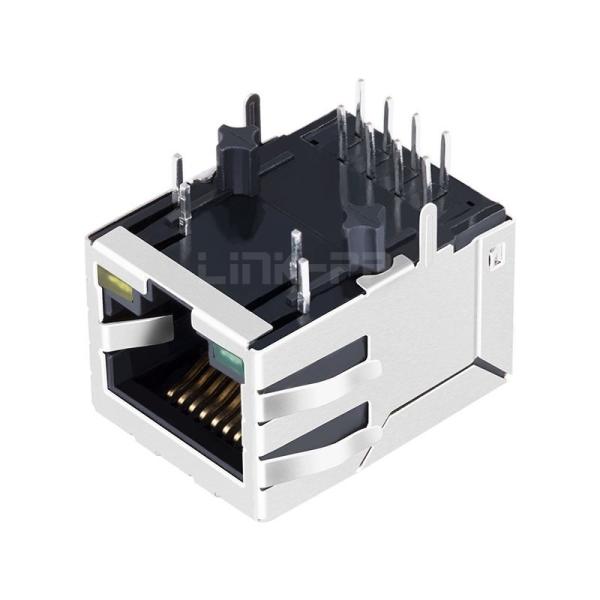

RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port Keystone Module RJ 45 Magnetic
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ0013AHNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
UDE
Competitor P/N :
RD1-125BAG1A
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Green / Yellow
Shield EMI Tabs :
NO
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

RD1-125BAG1A Compatible LINK-PP LPJ0013AHNL 10/100 Base-T Keystone Module RJ 45 Magnetic for Smart Camera and Game Controller (1x1 Port, Tab Down, Green/Yellow Led)


The LPJ0013AHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.


LINK-PP Part Number:
 LPJ0013AHNL UDE Part Number RD1-125BAG1A
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
