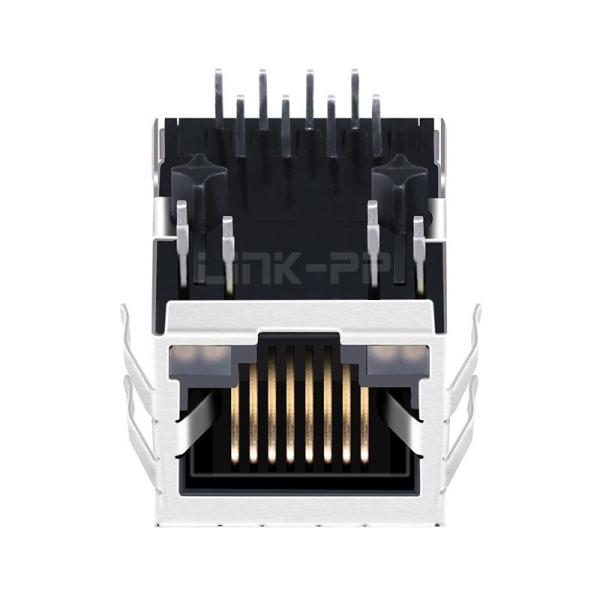

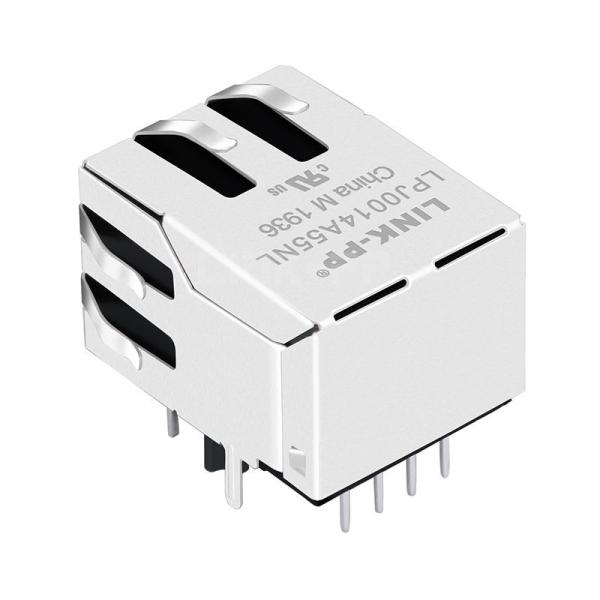

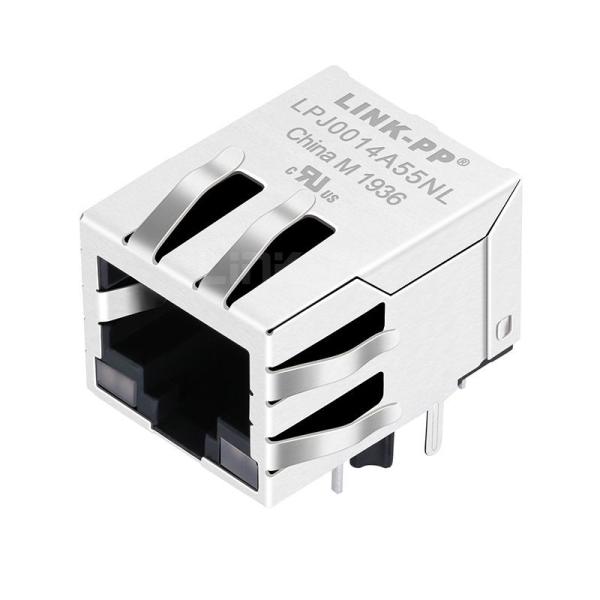

P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Tab Down Orange&Green/Orange&Green Led 1 Port Cat5e RJ45 Modular Jack
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ0014A55NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Speedtech
Competitor P/N :
P65-P0G-11K9
Latch :
Down
Pin Type :
THT SOLDER
LED Option :
Orange&Green / Orange&Green
Shield EMI Tabs :
YES
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W/carton :
8.5kg
Description

P65-P0G-11K9 Compatible LINK-PP LPJ0014A55NL 10/100 Base-T Cat5e RJ 45 Modular Jack for Automation and Solar Inverter (1 Port, Tab Down, Orange&Green/Orange&Green Led)


The LPJ0014A55NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Fieldbus System, Embedded Main Board, New Energy and Solar Inverter.


LINK-PP Part Number:
 LPJ0014A55NL Speedtech Part Number P65-P0G-11K9
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Orange&Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
