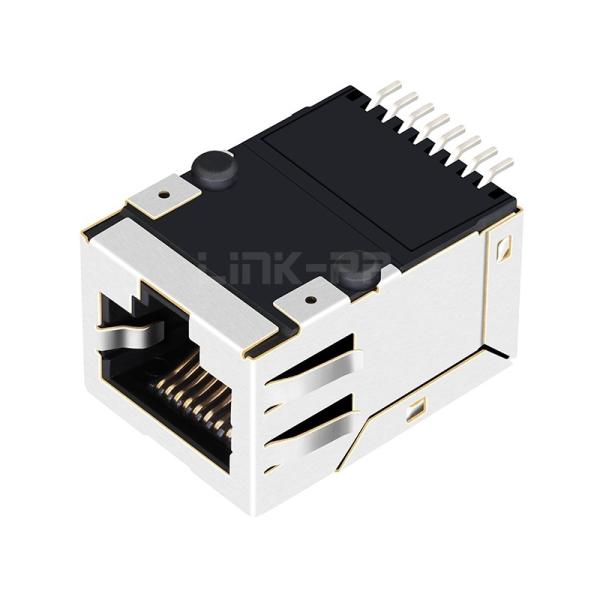

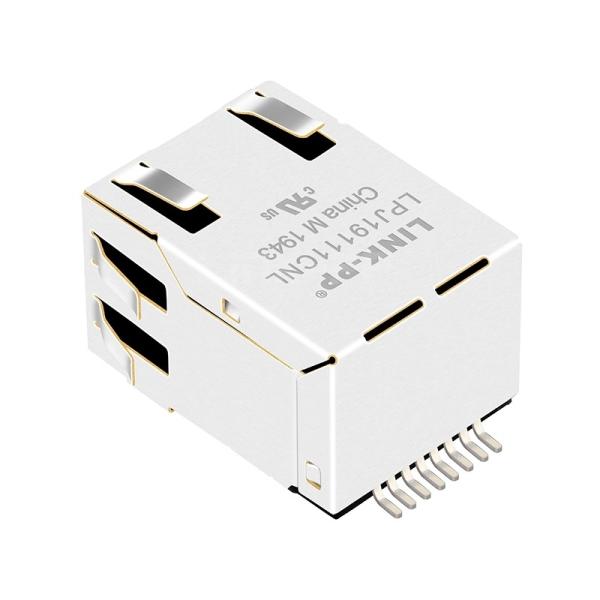

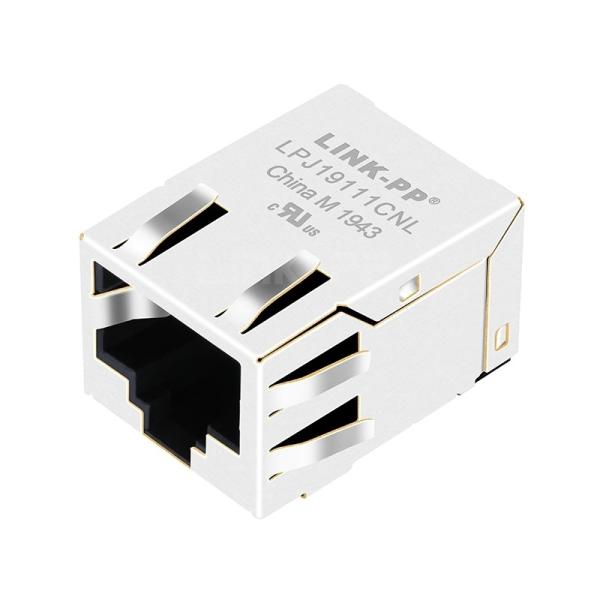

Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T Without LED Tab Down SMT rj45 connector manufacturers
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ19111CNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Hanrun
Competitor P/N :
HY991101C
Latch :
Down
Shield EMI Tabs :
YES
LED Option :
No LEDs
Temperature :
0℃ to 70℃
Application - LAN :
ETHERNET (NON PoE)
Questions :
1
Reviews :
10
N.W/pcs :
0.11kg
Package :
Tray
SPQ :
120pcs
Qty/carton :
720pcs
Carton size :
36*36*35cm
G.W/carton :
8kg
Description

Hanrun HY991101C Compatible LINK-PP LPJ19111CNL 10/100 Base-T SMT rj45 connector manufacturers for Entrance Guard System ( Tab Down ,Without LED )


The LPJ19111CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Smart Meters and Entrance Guard System.


LINK-PP Part Number:
 LPJ19111CNL Hanrun Part Number HY991101C
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.60Package Length (Inches/mm)

0.864/21.95

Package Width (Inches/mm)
0.640/16.26
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
