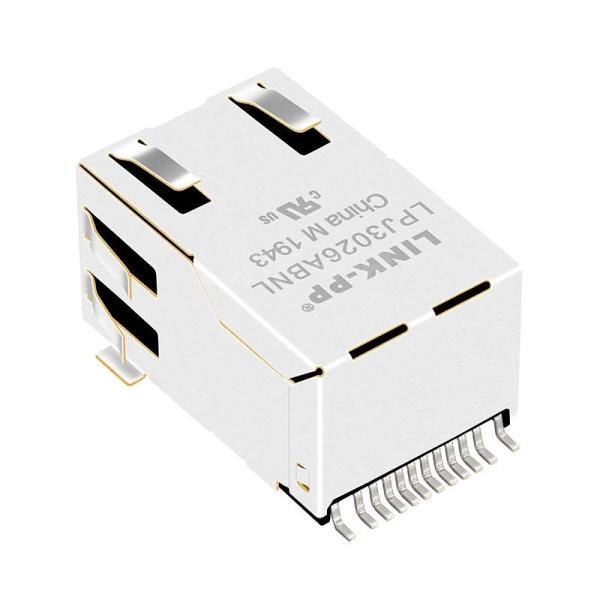

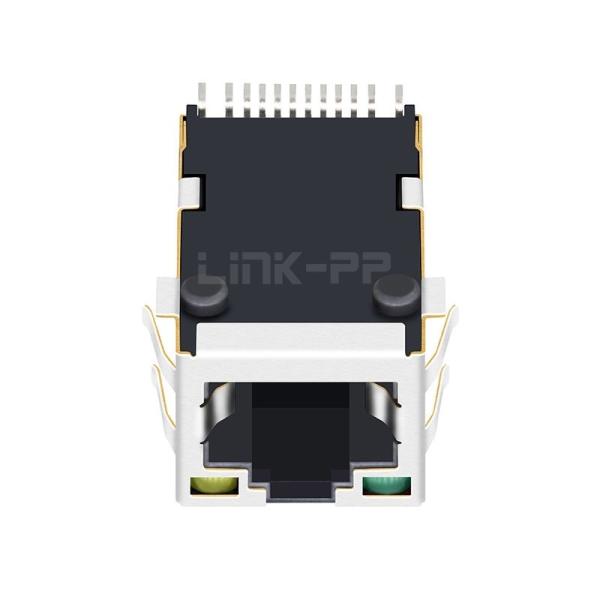

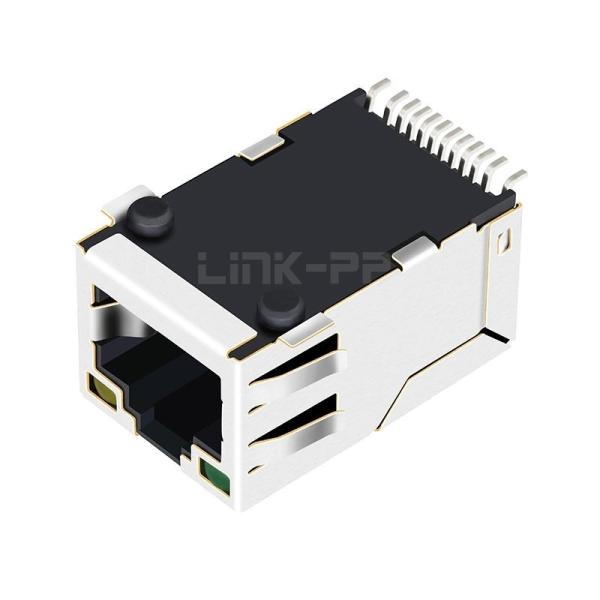

Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T Tab Up Green/Yellow Led SMD RJ45 Ethernet Magjack
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ3026ABNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Pulse
Competitor P/N :
J3026G21DNL
Compatible Brands :
Pulse
Latch :
Up
Shield EMI Tabs :
YES
LED Option :
Green/Yellow
Temperature :
-40℃ to +85℃
Application - LAN :
ETHERNET (NON PoE)
Reviews :
9
N.W/pcs :
0.11kg
Package :
Tray
SPQ :
110pcs
Qty/carton :
660pcs
Carton size :
35*35*35cm
G.W/carton :
7.5kg
Description

Pulse J3026G21DNL Compatible LINK-PP LPJ3026ABNL 10/100 Base-T SMD RJ45 Ethernet Magjack for Network Firewall and Smart Meters (Tab Up, Green/Yellow Led)


The LPJ3026ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Embedded Main Board, Network Firewall and Smart Meters.


LINK-PP Part Number:
 LPJ3026ABNL Pulse Part Number J3026G21DNL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

Surface Mount

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.536/13.61Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
0.634/16.10
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
