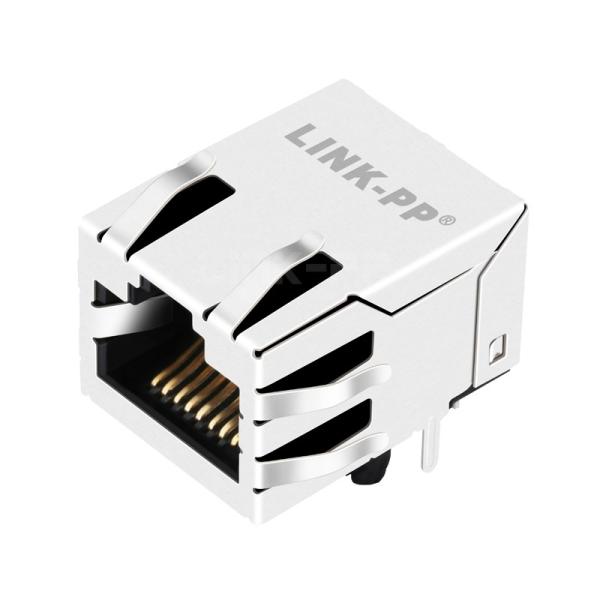

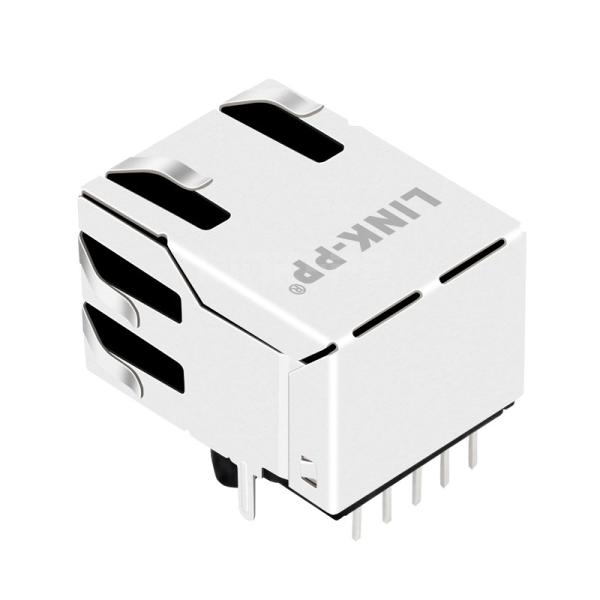

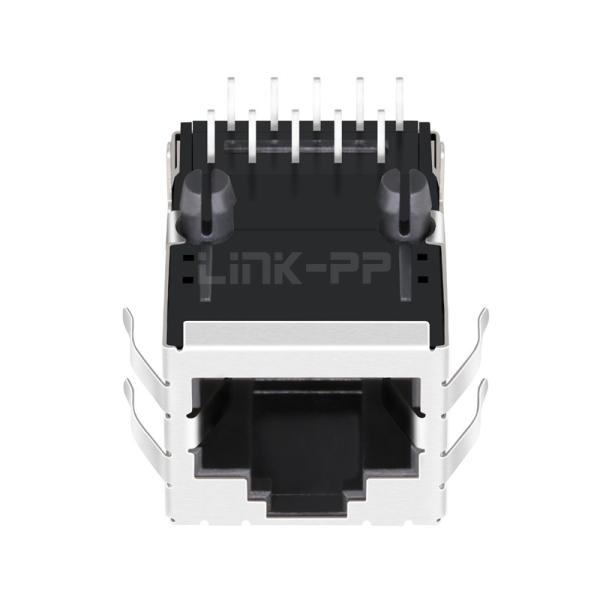

FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
FOXCONN JFM3811-F851-4F Compatible LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer Tab Up Without Led
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG16702CNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
FOXCONN
Compatible P/N :
JFM3811-F851-4F
Application - LAN :
ETHERNET (NON PoE)
Temperature :
-40℃ to +85℃
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
No LEDs
Shield EMI Tabs :
YES
Speed :
1000 Base-T
Reviews :
46
N.W/pcs :
0.007kg
Package :
Tray
SPQ :
50pcs
Qty/carton :
1200pcs
Carton size :
32*30*31cm
G.W./carton :
8.5kg
Description

JFM3811-F851-4F Compatible LINK-PP LPJG16702CNL 1000 Base-T RJ45 Jack With Magnetics Transformer, Without LED, Tab Up, RoHS

LINK-PP Part Number:
 LPJG16702CNL FOXCONN Part Number
 JFM3811-F851-4F
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.628/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
