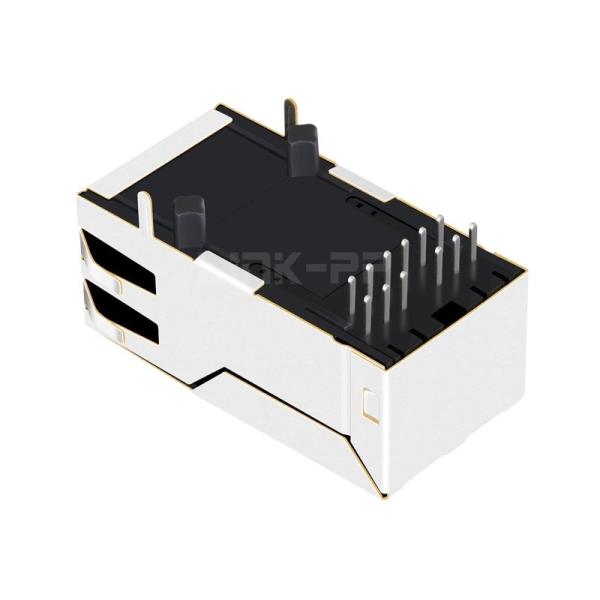

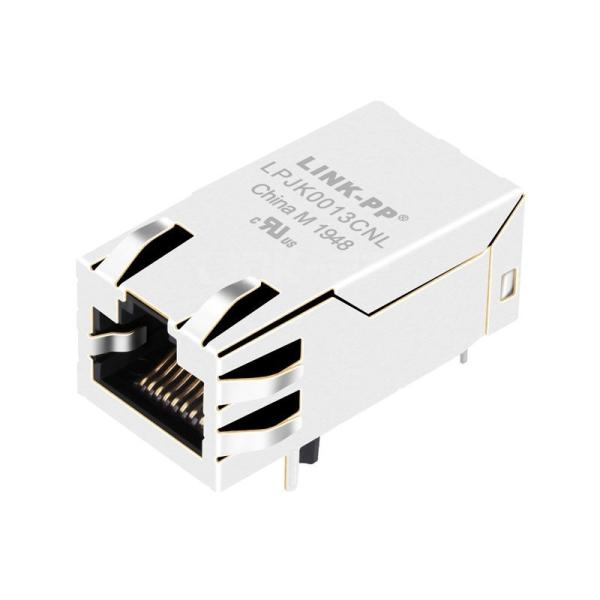

LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
LPJK0013CNL 10/100 Base-T Tab Up Without Led 1x1 Port POE RJ45 Jack Length 33.02mm
Specifications
Brand Name :
LINK-PP
Model Number :
LPJK0013CNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJK0013CNL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
No LEDs
Shield EMI Tabs :
YES
Temperature :
0℃ to 70℃
Application - LAN :
PoE
Reviews :
73
N.W/pcs :
0.011kg
Package :
Tray
SPQ :
60pcs
Qty/carton :
840pcs
Carton size :
37*30*30cm
G.W./carton :
9kg
Description

LINK-PP LPJK0013CNL 10/100 Base-T POE RJ45 Jack for Smart Meters and Satellite (POE, 1x1 Port, Tab Up, Without Led)


The LPJK0013CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Automation, , Ethernet Control and Game Controller.


LINK-PP Part Number:
 LPJK0013CNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet( PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
6
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/33.02

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
