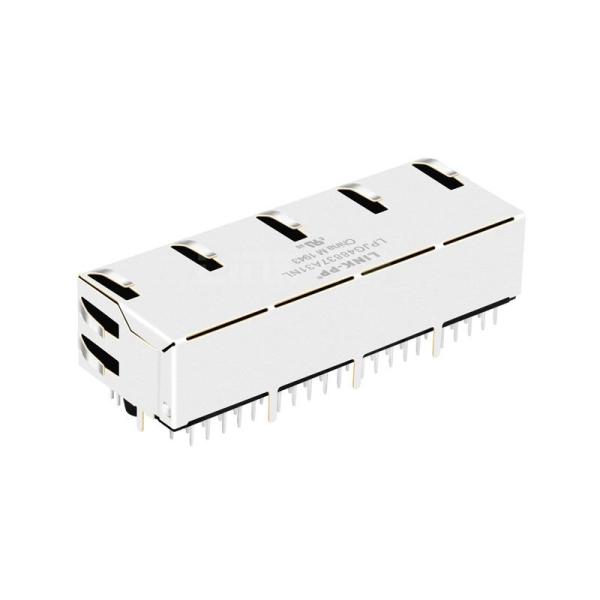

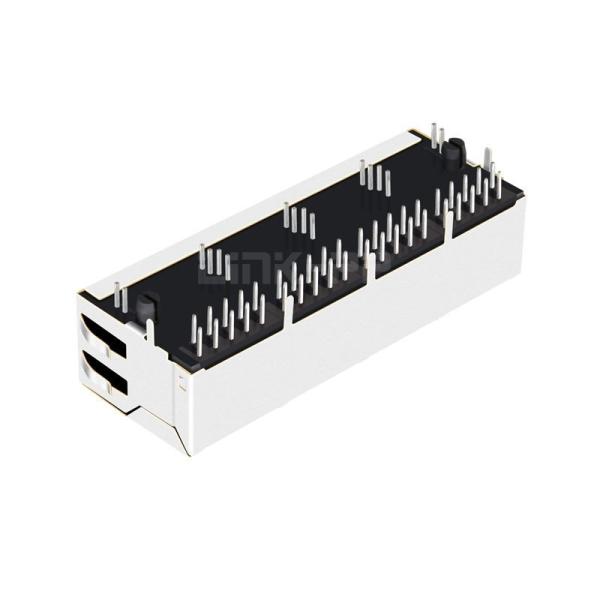

Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Tab Up Green&Orange/Green&Orange LED 1x4 Port Connector Lan RJ45
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG48837A31NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Pulse
Competitor P/N :
JG0-0098NL
Speed :
1000 Base-T
Compatible Brands :
Pulse
Application - LAN :
ETHERNET (NON PoE)
Latch :
Up
Pin Type :
THT SOLDER
Shield EMI Tabs :
YES
LED Option :
Green&Orange/Green&Orange
Temperature :
0℃ to 70℃
Reviews :
4
N.W/pcs :
0.026kg
Package :
Tray
SPQ :
20pcs
Qty/carton :
400pcs
Carton size :
37*30*30cm
G.W/carton :
10.7kg
Description

Pulse JG0-0098NL Compatible LINK-PP LPJG48837A31NL 10/100/1000 Base-T Connector Lan RJ45 for Hard Disk Players and Internet Of things Gateways (1x4 Port , Tab Up,Green&Orange/Green&Orange LED)


The LPJG48837A31NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,DVD and Webcams.


LINK-PP Part Number:
 LPJG48837A31NL Pulse Part Number JG0-0098NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Orange/Green&Orange Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
2.331/59.20
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
