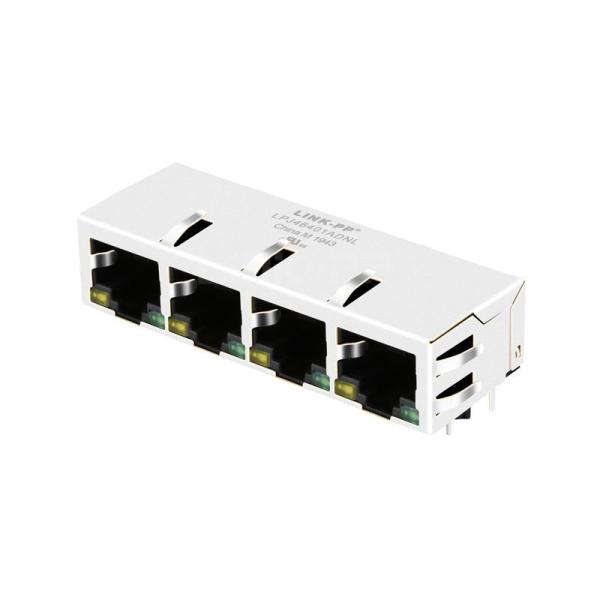

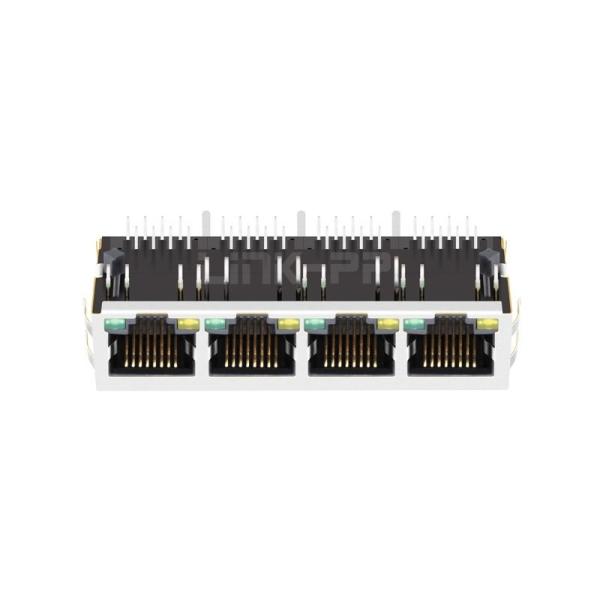

WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T 1x4 Port Ethernet RJ45 Mag Jack Tab Down Yellow/Green LED
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ46401ADNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
WE
Competitor P/N :
7499031120A
Speed :
10/100 Base-T
Compatible Brands :
WE
Application - LAN :
ETHERNET (NON PoE)
Latch :
Down
Pin Type :
THT SOLDER
Shield EMI Tabs :
YES
LED Option :
Yellow/Green
Temperature :
-40℃ to +85℃
Reviews :
79
N.W/pcs :
0.023kg
Package :
Tray
SPQ :
40pcs
Qty/carton :
360pcs
Carton size :
33*33*21cm
G.W/carton :
8.3kg
Description

WE 7499031120A Compatible LINK-PP LPJ46401ADNL 10/100 Base-T Ethernet RJ45 Mag jack for Network Firewall and Monitoring System (1x4 Port , Tab Down,Yellow/Green LED)


The LPJ46401ADNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Server, Network Firewall,Ethernet Control and Monitoring System.


LINK-PP Part Number:
 LPJ46401ADNL WE Part Number 7499031120A
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.533/13.55Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.328/59.12
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
